Display¶
To display a Mesh:

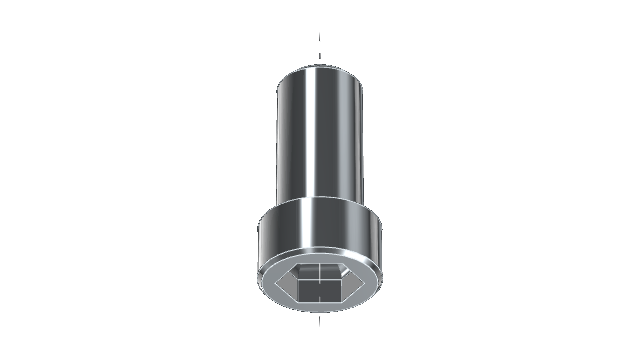

Without any option¶
from madcad import *
m = screw(10, 20)
show([m])
With triangles¶
from madcad import *
m = screw(10, 20)
show([m], options={"display_wire":True})

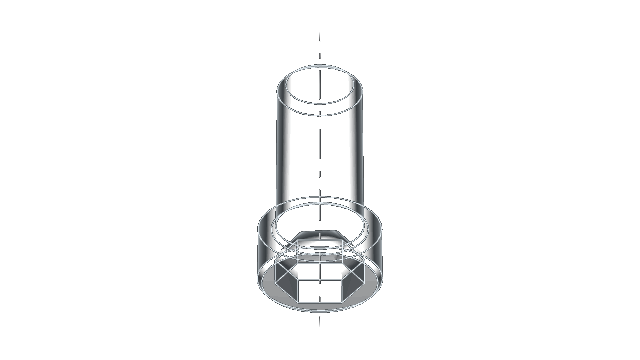

With transparency¶
from madcad import *
m = screw(10, 20)
show([m], options={"display_faces":False})

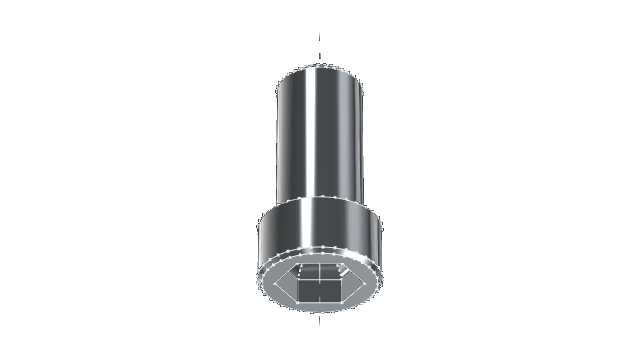

With points¶
from madcad import *
m = screw(10, 20)
show([m], options={"display_points":True})

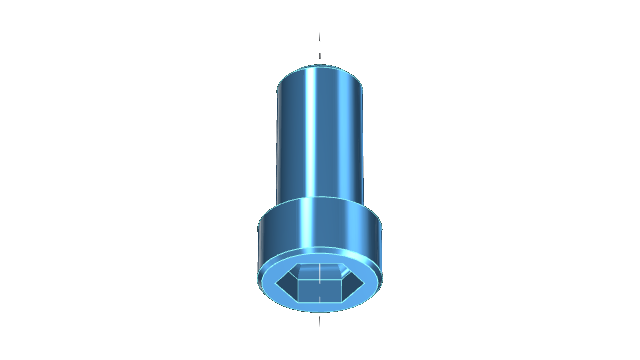

Color¶
from madcad import *
m = screw(10, 20)
# m["part"] is a `Mesh`
m["part"].option(color=vec3(70, 130, 180) / 255) # RGB
show([m])
Note
screw returns a Solid. Solid does not have the method .option().
To get more information, please refer to rendering.
