offseting -- Offset or thicken surfaces

The functions here allow to move or extrude meshes along their normals

Note

Any offseting provided here only rely on the vertex and edge normals of the input meshes, so don't expect a nice result if your mesh is too chaotic to have meaningful normals

inflate_offsets(surface, offset, method='face')

Displacements vectors for points of a surface we want to inflate.

Parameters:

Name	Type	Description	Default
offset	float	the distance from the surface to the offset surface. Its meaning depends on method	required
method		determines if the distance is from the old to the new faces, edges or points possible values: 'face', 'edge', 'point'	'face'

Source code in madcad/offseting.py

def inflate_offsets(surface: Mesh, offset: float, method='face') -> '[vec3]':
	''' Displacements vectors for points of a surface we want to inflate.

	Parameters:
		offset:
			the distance from the surface to the offset surface. Its meaning depends on `method`
		method:
			determines if the distance is from the old to the new faces, edges or points
			possible values: `'face', 'edge', 'point'`
	'''
	pnormals = surface.vertexnormals()

	# smooth normal offsets laterally when they are closer than `offset`
	outlines = surface.outlines_oriented()
	l = len(pnormals)
	normals = deepcopy(pnormals)
	for i in range(5):	# the number of steps is the diffusion distance through the mesh
		for a,b in outlines:
			d = surface.points[a] - surface.points[b]		# edge direction
			t = cross(pnormals[a]+pnormals[b], d)	# surface tangent normal to the edge
			# contribution stars when the offset points are closer than `offset`
			contrib = 1 - smoothstep(0, offset, length(offset*(pnormals[a]-pnormals[b])+d))
			normals[a] += contrib * 0.5*project(pnormals[b]-pnormals[a], t)
			normals[b] += contrib * 0.5*project(pnormals[a]-pnormals[b], t)
		# renormalize
		for i in range(l):
			pnormals[i] = normals[i] = normalize(normals[i])

	# compute offset length depending on the method
	if method == 'face':
		lengths = [inf]*len(pnormals)
		for face in surface.faces:
			fnormal = surface.facenormal(face)
			for p in face:
				lengths[p] = min(lengths[p], 1/dot(pnormals[p], fnormal))
		return typedlist((pnormals[p]*lengths[p]*offset   for p in range(len(pnormals))), dtype=vec3)

	elif method == 'edge':
		lengths = [inf]*len(pnormals)
		for edge,enormal in surface.edgenormals().items():
			for p in edge:
				lengths[p] = min(lengths[p], 1/dot(pnormals[p], enormal))
		return typedlist((pnormals[p]*lengths[p]*offset	for p in range(len(pnormals))), dtype=vec3)

	elif method == 'point':
		return typedlist((pnormals[p]*offset	for p in range(len(pnormals))), dtype=vec3)

inflate(surface, offset, method='face')

Move all points of the surface to make a new one at a certain distance of the last one

Parameters:

Name	Type	Description	Default
offset	float	the distance from the surface to the offseted surface. its meaning depends on method	required
method		determines if the distance is from the old to the new faces, edges or points	'face'

Examples:

>>> sphere = pierce(
...         icosphere(O, 1),
...         brick(min=vec3(0), max=vec3(2)) .flip(),
...         )
>>> inflate(sphere, 0.1)

Source code in madcad/offseting.py

def inflate(surface:Mesh, offset:float, method='face') -> 'Mesh':
	''' Move all points of the surface to make a new one at a certain distance of the last one

	![inflate result](../screenshots/offseting-inflate.png)

	Parameters:
		offset:       the distance from the surface to the offseted surface. its meaning depends on `method`
		method:       determines if the distance is from the old to the new faces, edges or points

	Examples:
		>>> sphere = pierce(
		...         icosphere(O, 1),
		...         brick(min=vec3(0), max=vec3(2)) .flip(),
		...         )
		>>> inflate(sphere, 0.1)
	'''
	return Mesh(
				typedlist((p+d  if isfinite(d) else p   for p,d in zip(surface.points, inflate_offsets(surface, offset, method))), dtype=vec3),
				surface.faces,
				surface.tracks,
				surface.groups)

thicken(surface, thickness, alignment=0, method='face')

Thicken a surface by extruding it, points displacements are made along normal.

Parameters:

Name	Type	Description	Default
thickness	float	determines the distance between the two surfaces (can be negative to go the opposite direction to the normal).	required
alignment	float	specifies which side is the given surface: 0 is for the first, 1 for the second side, 0.5 thicken all apart the given surface.	0
method		determines if the thickness is from the old to the new faces, edges or points	'face'

Examples:

>>> sphere = pierce(
...         icosphere(O, 1),
...         brick(min=vec3(0), max=vec3(2)) .flip(),
...         )
>>> thicken(sphere, 0.1)

Source code in madcad/offseting.py

def thicken(surface: Mesh, thickness: float, alignment:float=0, method='face') -> 'Mesh':
	''' Thicken a surface by extruding it, points displacements are made along normal.

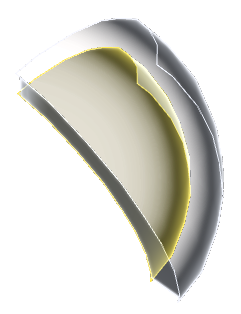

	![thicken result](../screenshots/offseting-thicken.png)

	Parameters:
		thickness:    determines the distance between the two surfaces (can be negative to go the opposite direction to the normal).
		alignment:    specifies which side is the given surface: 0 is for the first, 1 for the second side, 0.5 thicken all apart the given surface.
		method:       determines if the thickness is from the old to the new faces, edges or points

	Examples:
		>>> sphere = pierce(
		...         icosphere(O, 1),
		...         brick(min=vec3(0), max=vec3(2)) .flip(),
		...         )
		>>> thicken(sphere, 0.1)
	'''
	displts = inflate_offsets(surface, thickness, method)

	a = alignment
	b = alignment-1
	m = (	Mesh(
				typedlist((p+d*a  for p,d in zip(surface.points,displts)), dtype=vec3),
				surface.faces[:],
				surface.tracks[:],
				surface.groups)
		+	Mesh(
				typedlist((p+d*b  for p,d in zip(surface.points,displts)), dtype=vec3),
				surface.faces,
				surface.tracks,
				surface.groups[:]
				) .flip()
		)
	t = len(m.groups)
	l = len(surface.points)
	m.groups.append(None)
	for e in surface.outlines_oriented():
		mkquad(m, (e[0], e[1], e[1]+l, e[0]+l), t)
	return m

expand(surface, offset, collapse=True)

Generate a surface expanding the input mesh on the tangent of the ouline neighboring faces

Parameters:

Name	Type	Description	Default
offset	float	distance from the outline point to the expanded outline points	required
collapse		if True, expanded points leading to crossing edges will collapse into one	True

Examples:

>>> expand(
...     revolution(wire([vec3(1,1,0), vec3(0,1,0)]), Axis(O,X), pi),
...     0.5)

Source code in madcad/offseting.py

def expand(surface: Mesh, offset: float, collapse=True) -> Mesh:
	''' Generate a surface expanding the input mesh on the tangent of the ouline neighboring faces

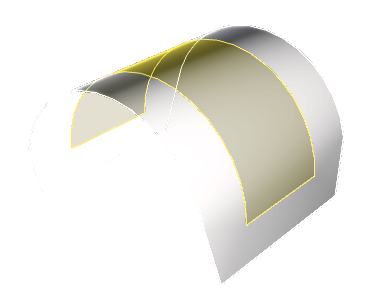

	![expand result](../screenshots/offseting-expand.png)

	Parameters:
		offset:		distance from the outline point to the expanded outline points
		collapse:	if True, expanded points leading to crossing edges will collapse into one

	Examples:
		>>> expand(
		...     revolution(wire([vec3(1,1,0), vec3(0,1,0)]), Axis(O,X), pi),
		...     0.5)
	'''
	# outline with associated face normals
	pts = surface.points
	edges = {}
	for face in surface.faces:
		for e in ((face[0], face[1]), (face[1], face[2]), (face[2],face[0])):
			if e in edges:	del edges[e]
			else:			edges[(e[1], e[0])] = surface.facenormal(face)

	# return the point on tangent for a couple of edges from the frontier
	def tangent(e0, e1):
		mid = axis_midpoint(
				(pts[e0[1]], pts[e0[0]] - pts[e0[1]]),
				(pts[e1[0]], pts[e1[1]] - pts[e1[0]]),
				)
		d0 = pts[e0[1]] - pts[e0[0]]
		d1 = pts[e1[1]] - pts[e1[0]]
		n0, n1 = edges[e0], edges[e1]
		t = normalize(cross(n0, n1) + NUMPREC*(d0*length(d1)-d1*length(d0)) + NUMPREC**2 * (cross(n0, d0) + cross(n1, d1)))
		if dot(t, cross(n0, d0)) < 0:
			t = -t
		return mid + t * offset

	# cross neighbooring normals
	for loop in suites(edges, cut=False):
		assert loop[-1] == loop[0],  "non-manifold input mesh"
		loop.pop()
		# compute the offsets, and remove anticipated overlapping geometries
		extended = [None]*len(loop)
		for i in range(len(loop)):
			# consecutive edges around i-1
			ei0 = (loop[i-2], loop[i-1])
			ei1 = (loop[i-1], loop[i])
			ti = tangent(ei0, ei1)
			if collapse:
				tk = deepcopy(ti)
				weight = 1
				# j is moving to find how much points to gather
				ej0 = ei0
				for j in reversed(range(i-len(loop)+1, i-1)):
					# consecutive edges aroung j
					ej0, ej1 = (loop[j-1], loop[j]), ej0
					tj = tangent(ej0, ej1)

					if dot(ti - tj, pts[ei1[0]] - pts[ej0[1]]) <= NUMPREC * length2(pts[ei1[0]] - pts[ej0[1]]):
						tk += tj
						weight += 1
					else:
						break
				# store tangents
				for k in range(j+1, i):
					extended[k] = tk/weight
			else:
				extended[i-1] = ti

		# insert the new points
		j = l = len(pts)
		g = len(surface.groups)
		surface.groups.append(None)
		for i in range(len(extended)):
			if extended[i] != extended[i-1]:
				pts.append(extended[i])

		# create the faces
		for i in range(len(extended)):
			if extended[i] != extended[i-1]:
				mkquad(surface, (loop[i-1], loop[i], j, (j if j > l else len(pts)) -1), g)
				j += 1
			else:
				mktri(surface, (loop[i-1], loop[i], (j if j > l else len(pts)) -1), g)

	return surface
