hull -- Build convex hulls from lines or surfaces

This module provides functions to compute convex hulls (See https://en.wikipedia.org/wiki/Convex_hull) and other hull-related operations for Mesh and Web

Those can be very helpful to complete sketches or parts by adding the missing surface portions. Also very helpful to sort a set of directions.

convexhull(source)

compute the convex hull of the input container

Parameters:

Name	Type	Description	Default
source	typedlist / Web / Mesh	the input container, if it is a Web or Mesh, their groups are kept in the output data	required

Examples:

>>> m = convexhull(mesh([
...     uvsphere(O, 1, alignment=X),
...     uvsphere(4*X, 2, alignment=X),
...     ]))

Source code in madcad/hull.py

def convexhull(source: '[vec3]') -> Mesh:
	''' compute the convex hull of the input container

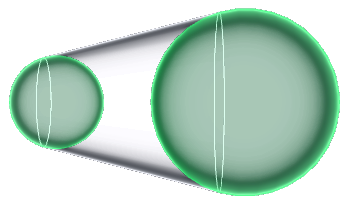

	![convexhull result](../screenshots/hull-convexhull.png)

	Parameters:
		source (typedlist/Web/Mesh):	the input container, if it is a Web or Mesh, their groups are kept in the output data

	Examples:
		>>> m = convexhull(mesh([
		... 	uvsphere(O, 1, alignment=X),
		... 	uvsphere(4*X, 2, alignment=X),
		... 	]))
	'''
	if isinstance(source, (Mesh,Web,Wire)):
		source = copy(source)
		source.strippoints()
		points = source.points
	else:
		points = typedlist(source, dtype=vec3)
		source = None

	return restore_groups(source, simple_convexhull(points)).orient()

convexoutline(source, normal=None, flatten=False)

based on convexhull() but will extract the loop formed by the edges in the biggest planar projection of the convex hull

Parameters:

Name	Type	Description	Default
source	typedlist / Web / Mesh	the input container, if it is a Web or Mesh, their groups are kept in the output data	required
normal	vec3	the projection normal to retreive the outline using horizon(), if None is given it will default to the direction in which the outlien surface is the biggest	None
flatten	bool	whether to project the outline points in its mean plane	False

Examples:

>>> convexoutline(web([
...     Circle(Axis(O,Z), 1),
...     Circle(Axis(4*X,Z), 2),
...     ]))

Source code in madcad/hull.py

def convexoutline(source: '[vec3]', normal: vec3=None, flatten: bool=False) -> Web:
	''' based on `convexhull()` but will extract the loop formed by the edges in the biggest planar projection of the convex hull

	![convexoutline result](../screenshots/hull-convexoutline.png)

	Parameters:
		source (typedlist/Web/Mesh):     the input container, if it is a Web or Mesh, their groups are kept in the output data
		normal:                          the projection normal to retreive the outline using `horizon()`, if None is given it will default to the direction in which the outlien surface is the biggest
		flatten:                         whether to project the outline points in its mean plane

	Examples:
		>>> convexoutline(web([
		... 	Circle(Axis(O,Z), 1),
		... 	Circle(Axis(4*X,Z), 2),
		... 	]))
	'''
	if isinstance(source, (Mesh,Web,Wire)):
		source = copy(source)
		source.strippoints()
		points = source.points
	else:
		points = typedlist(source, dtype=vec3)
		source = None

	direction = normal or widest_surface_direction(Mesh(source.points, simple_convexhull(points)))
	x, y, z = dirbase(direction)
	proj = transpose(dmat2x3(x, y))
	outline = restore_groups(source, simple_convexoutline(typedlist(proj * p  for p in points))) .orient(direction)
	if flatten:
		outline.strippoints()
		center = outline.barycenter()
		outline.points = typedlist(center + noproject(p-center, direction)   for p in outline.points)
	return outline

simple_convexhull(points)

Just like convexhull() but minimalist. It does not take care of groups crossing. It doesn't return a new Mesh but a buffer of triangles indices

Source code in madcad/hull.py

def simple_convexhull(points: typedlist[vec3]) -> typedlist[uvec3]:
	''' Just like `convexhull()` but minimalist.
		It does not take care of groups crossing. It doesn't return a new Mesh but a buffer of triangles indices
	'''
	# return numpy_to_typedlist(scipy.spatial.ConvexHull(typedlist_to_numpy(points, 'f8'), qhull_options='Qa Qc QJ Qt Qbb Qx').simplices, uvec3)
	return numpy_to_typedlist(scipy.spatial.ConvexHull(typedlist_to_numpy(points, 'f8'), qhull_options='QJ Pp').simplices, uvec3)

horizon(mesh, direction)

Return a Web of the ORIENTED edges of the given mesh that lay between triangles that are oriented either sides of `direction`

Source code in madcad/hull.py

def horizon(mesh, direction: vec3) -> Web:
	'''
	Return a Web of the ORIENTED edges of the given mesh that lay between triangles that are oriented either sides of `direction`

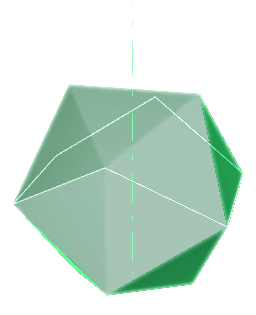

    ![horizon result](../screenshots/hull-horizon.png)
	'''
	horizon = Web(points=mesh.points, groups=mesh.groups)
	signs = {}	# dictionnary for crossing face directions around edges
	groups = {} # track of the positive face connected for each edge
	for face, track in zip(mesh.faces, mesh.tracks):
		# pick the sign of the projected surface
		s = dot(mesh.facenormal(face), direction)
		if abs(s) <= NUMPREC:	s = 0
		elif s > 0:				s = 1
		else:					s = -1

		for i in range(3):
			edge = (face[i], face[i-2])
			key = edgekey(*edge)
			# pick the group of the positive face neighboring the edge
			if s > 0 or (s >= 0 and key not in groups):
				groups[key] = track
			# the edge belong to the horizon if the neigboring faces are each appart the projection plane
			if edge in signs and signs[edge] * s <= 0 and max(signs[edge], s) == 1:
				horizon.edges.append(edge if s > 0 else flipped(edge))
				horizon.tracks.append(groups[key])
				del signs[edge]
				del groups[key]
			# if matching edge not found yet, index the current face
			else:
				signs[flipped(edge)] = s
	return horizon

widest_surface_direction(mesh)

Source code in madcad/hull.py

def widest_surface_direction(mesh) -> vec3:
	# find a direction not orthogonal to any of the mesh faces
	normals = mesh.facenormals()
	directionmap = simple_convexhull(typedlist(p  for p in normals if not glm.any(isnan(p))))
	score = 0
	proj = None
	for face in directionmap:
		surf = length2(cross(normals[face[1]]-normals[face[0]], normals[face[2]]-normals[face[0]]))
		if surf >= score:
			score, proj = surf, normals[face[0]] + normals[face[1]] + normals[face[2]]

	# project half of the mesh surface
	direction = vec3(0)
	for face in mesh.faces:
		surf = cross(mesh.points[face[1]]-mesh.points[face[0]], mesh.points[face[2]]-mesh.points[face[0]])
		if dot(surf, proj) > 0:
			direction += surf

	# select the average surface direction
	return normalize(direction)

restore_groups(source, indices)

Create a mesh contaning the given simplices, associated with groups created from group crossing from the source mesh. The simplices must refer to points in source. The created groups are tuples of indices of the groups touched by each simplex.

Parameters:

Name	Type	Description	Default
source	Mesh / Web	the mesh containing reference triangles and groups	required
indices		a buffer of simplices indices (depending on the dimensionnality of source) we want to find groups for	required

Source code in madcad/hull.py

def restore_groups(source, indices) -> Mesh:
	'''
	Create a mesh contaning the given simplices, associated with groups created from group crossing from the source mesh.
	The simplices must refer to points in `source`.
	The created groups are tuples of indices of the groups touched by each simplex.

   	Parameters:
  		source (Mesh/Web):    the mesh containing reference triangles and groups
  		indices:              a buffer of simplices indices (depending on the dimensionnality of `source`) we want to find groups for
	'''
	groups = source.groups
	tracks = typedlist.full(len(groups), len(indices), dtype='I')

	if isinstance(source, Mesh):
		former = { facekeyo(*face): track
						for face, track in zip(source.faces, source.tracks)}
	elif isinstance(source, Web):
		former = { edge: track
						for edge, track in zip(source.edges, source.tracks)}
	else:
		raise TypeError('expected a Mesh or Web')

	# create an associative dictionnary where associated tracks only appears one per point
	combiner = Asso()
	for simplex, track in former.items():
		for p in simplex:
			if track not in combiner[p]:
				combiner.add(p, track)
	# search for original group or new group at each simplex
	groupindex = {}
	for i, simplex in enumerate(indices):
		belong = Counter()
		for p in simplex:
			belong.update(combiner[p])
		# get a shortlist of the groups reaching this simplex through its points
		couple = sorted(belong, key=lambda i: belong[i], reverse=True)
		shortlist = []
		amount = 0
		while amount < len(simplex):
			n = couple[len(shortlist)]
			shortlist.append(n)
			amount += belong[n]
		# one group only
		if len(shortlist) == 1:
			tracks[i] = couple[0]
		else:
			combine = tuple(sorted(shortlist))
			if combine not in groupindex:
				groupindex[combine] = len(groups)
				groups.append(dict())
			tracks[i] = groupindex[combine]

	outdim = len(simplex)
	if outdim == 3:
		return Mesh(source.points, indices, tracks, groups)
	elif outdim == 2:
		return Web(source.points, indices, tracks, groups)
	else:
		raise TypeError('outer simplex dimension {} is not supported'.format(outdim))
