reverse -- Reverse engineering functions

segmentation(mesh, tolerance=5, sharp=0.2)

Surface segmentation based on curvature. This functions splits faces into groups based on curvature proximity. Ideally each resulting group is a set of faces with the same curvature. In practice such is not possible due to the mesh resolution introducing bias in curvature estimation. Thus a tolerance is used to decide what is a sufficiently close curvature to belong to the same group. In order to avoid too sharp edges to be considered a very low resolution but smooth surface, sharp is the value of the limit edge angle that can be considered in smooth surface.

This function is particularly usefull when importing geometries from a format that doesn't manage groups (such as STL).

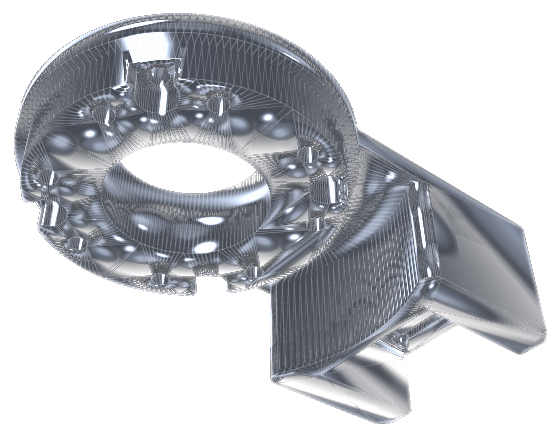

After importing you generally obtain something like this with all triangles in the same group

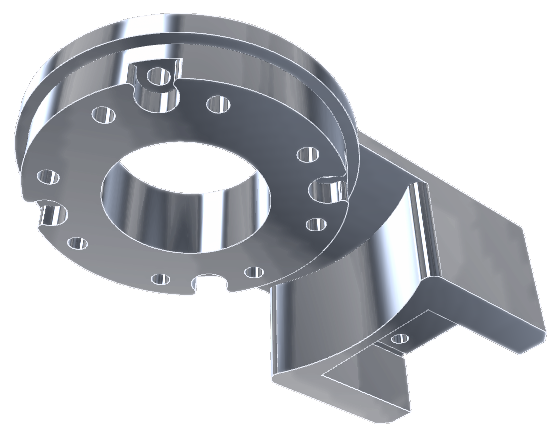

A segmentation will find what to group and give you this

Parameters:

Name	Type	Description	Default
tolerance	float	maximum difference factor between curvatures of a same group (1 means +100% curvature is allowed)	5
sharp	float	angle above which an angle is always sharp (radians)	0.2

NOTE

This functions is not magic and despite the default parameters are usually fine for mechanical parts, you may get badly grouped faces in some cases, hence you will need to tune the parameters.

The success of this functions is highly dependent of the quality of the input mesh triangulation.

Examples:

>>> part = read('myfile.stl')
>>> part.mergeclose()
>>> part = segmentation(part)

Source code in madcad/reverse.py

def segmentation(mesh, tolerance=5, sharp=0.2) -> Mesh:
	''' Surface segmentation based on curvature.
	This functions splits faces into groups based on curvature proximity.
	Ideally each resulting group is a set of faces with the same curvature. In practice such is not possible due to the mesh resolution introducing bias in curvature estimation. Thus a `tolerance` is used to decide what is a sufficiently close curvature to belong to the same group.
	In order to avoid too sharp edges to be considered a very low resolution but smooth surface, `sharp` is the value of the limit edge angle that can be considered in smooth surface.

	This function is particularly usefull when importing geometries from a format that doesn't manage groups (such as STL).

	After importing you generally obtain something like this with all triangles in the same group

	![before segmentation](../screenshots/segmentation-before.png)

	A segmentation will find what to group and give you this

	![after segmentation](../screenshots/segmentation-after.png)

	Parameters:
		tolerance (float):	maximum difference factor between curvatures of a same group  (1 means +100% curvature is allowed)
		sharp (float):	angle above which an angle is always sharp (radians)

	NOTE:
		This functions is not magic and despite the default parameters are usually fine for mechanical parts, you may get badly grouped faces in some cases, hence you will need to tune the parameters.

		The success of this functions is highly dependent of the quality of the input mesh triangulation.

	Examples:
		>>> part = read('myfile.stl')
		>>> part.mergeclose()
		>>> part = segmentation(part)
	'''
	# pick informations from the mesh
	pts = mesh.points
	conn = connef(mesh.faces)
	facenormals = mesh.facenormals()
	prec = 1 / mesh.maxnum()  # curvature precision, curvature is rad/m, so 1rad/max dist seems to be a fairly low curvature

	# this is what this functions is working to create: new groups and tracks to assign it to faces
	tracks = [-1] * len(mesh.faces)
	groups = []

	# evaluate curvature around every edge
	edgecurve = {}
	facecurve = [0.] * len(mesh.faces)
	weight = [0.] * len(mesh.faces)
	for e, fa in conn.items():
		if edgekey(*e) in edgecurve:	continue
		fb = conn.get((e[1],e[0]))
		if not fb:	continue

		curve = dot(pts[e[1]] - pts[e[0]], cross(facenormals[fa], facenormals[fb]))
		edgecurve[edgekey(*e)] = angle = anglebt(facenormals[fa], facenormals[fb])

		# report average curvature to neighboring faces
		if sharp > angle:
			w = max(0, 0.5-angle)  # empirical weighting
			facecurve[fa] += curve * w  # multiply angle at edge by   (triangle height) ~= surface/(edge length)
			facecurve[fb] += curve * w
			weight[fa] += w
			weight[fb] += w

	# divide contributions to face curvatures
	for i,f in enumerate(mesh.faces):
		area = 0.5 * length(cross(pts[f[1]]-pts[f[0]], pts[f[2]]-pts[f[0]])) * weight[i]
		if area:	facecurve[i] /= area
		else:		facecurve[i] = 0
		#debug.append(text.Text(
							#(pts[f[0]] + pts[f[1]] + pts[f[2]]) /3,
							#'{:.2g}'.format(facecurve[i]),
							#size=8,
							#align=('left', 'center'),
							#))

	# groupping gives priority to the less curved faces, so they can extend to the ambiguous limits if there is
	sortedfaces = sorted(range(len(mesh.faces)), key=lambda i:  abs(facecurve[i]))
	index = 0

	while True:
		# pick a non assigned face
		for index in range(index, len(sortedfaces)):
			if tracks[sortedfaces[index]] == -1:	break
		if index >= len(sortedfaces):	break
		i = sortedfaces[index]
		f = mesh.faces[i]

		# start propagation for this face
		tracks[i] = len(groups)
		estimate = facecurve[i]   # average curvature of the group
		sample = 1   # samples used in the average curvature of the group
		front = [(f[k-1], f[k-2])  for k in range(3)]   # propagation frontline
		reached = {i}  # faces reached by propagation

		# for triangles on the frontier of a curved surface, the curvature may appear to be null (or close), in this case look for a paired triangle
		if abs(facecurve[i]) < prec:
			best = None
			fence = inf
			for i,e in enumerate(front):
				j = conn.get(e)
				if j is None or tracks[j] != -1 or j in reached:	continue
				if edgecurve[edgekey(*e)] >= sharp:	continue
				score = abs(facecurve[j]-facecurve[i])
				if score < fence:
					best, fence = j, score
			if best is not None:
				estimate = facecurve[best]

		# propagation
		while front:
			e = front.pop()
			j = conn.get(e)
			# check if already processed
			if j is None or tracks[j] != -1 or j in reached:	continue
			reached.add(j)
			# check criterions:
			# split groups at maximum curvature
			if edgecurve[edgekey(*e)] >= sharp:	continue
			# split groups when curvature is too far from average curvature
			if abs(facecurve[j]-estimate) / (abs(estimate)+prec) > tolerance:	continue

			# improve estimation of average curvature
			tracks[j] = len(groups)
			estimate = (estimate*sample + facecurve[j]) / (sample+1)
			sample += 1

			# propagate
			f = mesh.faces[j]
			front.extend((f[k-1], f[k-2])  for k in range(3))

		groups.append(estimate)
		index += 1

	return Mesh(mesh.points, mesh.faces, tracks, groups)

guesssurface(surface, precision=1e-05, attempt=False)

Guess the surface kind, returns its parameters.

Return a tuple ('surface_type', parameters)

Parameters:

Name	Type	Description	Default
surface	Mesh	mesh from which to find the surface kind	required
precision	float	typical distance error from mesh to ideal surface in the surface regression	1e-05
attempt	bool	if True, will not raise an error if the acheived error is too big	False

Source code in madcad/reverse.py

def guesssurface(surface, precision=1e-5, attempt=False):
	''' Guess the surface kind, returns its parameters.

	Return a tuple `('surface_type', parameters)`

	Parameters:
		surface(Mesh):      mesh from which to find the surface kind
		precision(float):	typical distance error from mesh to ideal surface in the surface regression
		attempt(bool):      if True, will not raise an error if the acheived error is too big
	'''
	if not isinstance(surface, Mesh):
		return surface

	center = surface.barycenter()
	scores = []

	solverargs = dict(
				ftol = precision,
				max_nfev = 300,
				method = 'lm')

	# plane regression
	def evaluate(x):
		# retreive surface parameters
		origin, normal = vec3(x[:3]), normalize(vec3(x[3:]))
		# allocate residuals
		residual = np.zeros((len(surface.faces)+2, 4), dtype='f8')
		# compute residuals
		residual[-1,0] = (length(vec3(x[3:])) - 1)**2
		residual[-2,0] = length2(noproject(center-origin, normal))
		for i,f in enumerate(surface.faces):
			fp = surface.facepoints(f)
			p = (fp[0]+fp[1]+fp[2]) / 3
			residual[i,0] = dot(p-origin, normal)**2  # distance to the face center
			for j,p in enumerate(fp):
				residual[i,j+1] = dot(p-origin, normal)**2  # distance to each point
		return residual.ravel()

	res = least_squares(evaluate, [*center, 1,1,1], **solverargs)
	scores.append((
			np.mean(res.fun),
			'plane',
			(vec3(res.x[:3]), vec3(res.x[3:])),
			))
	#print('plane', res.nfev, np.mean(res.fun), '\t', list(res.x))

	# sphere regression
	def evaluate(x):
		# retreive surface parameters
		origin, radius = vec3(x[:3]), float(x[3])
		# allocate residuals
		residual = np.zeros((len(surface.faces), 4), dtype='f8')
		# compute residuals
		for i,f in enumerate(surface.faces):
			fp = surface.facepoints(f)
			p = (fp[0]+fp[1]+fp[2]) / 3
			residual[i,0] = (distance(p, origin) - radius) **2
			for j,p in enumerate(fp):
				residual[i,j+1] = (distance(p, origin) - radius) **2
		return residual.ravel()

	res = least_squares(evaluate, [*center, 1], **solverargs)
	scores.append((
			np.mean(res.fun),
			'sphere',
			vec3(res.x[:3]),
			))
	#print('sphere', res.nfev, np.mean(res.fun), '\t', list(res.x))

	# cylinder regression
	def evaluate(x):
		# retreive surface parameters
		origin, direction, radius = vec3(x[:3]), vec3(x[3:6]), float(x[6])
		# allocate residuals
		residual = np.zeros((len(surface.faces)+2, 4), dtype='f8')
		# compute residuals
		residual[-1,0] = (length(vec3(x[3:6])) - 1) **2
		residual[-2,0] = length2(project(center-origin, direction))
		for i,f in enumerate(surface.faces):
			fp = surface.facepoints(f)
			p = (fp[0]+fp[1]+fp[2]) / 3
			residual[i,0] = (length(noproject(p-origin, direction)) - radius) **2
			for j,p in enumerate(fp):
				residual[i,j+1] = (length(noproject(p-origin, direction)) - radius) **2
		return residual.ravel()
	# estimate a first axis to avoid the solver to fall into a local extremum
	# sum contrbutions of curvature at edges
	direction = vec3(0)
	conn = connef(surface.faces)
	for e in conn:
		if (e[1], e[0]) in conn and e[0] < e[1]:
			edge = cross(surface.facenormal(conn[e]), surface.facenormal(conn[(e[1],e[0])]))
			direction += edge * (sign(dot(edge, direction)) or 1)
	# if the initial direction is too weak, then we are sure it's not a cylinder
	if length2(direction):
		if -min(direction) > max(direction):	direction = -direction
		# solve
		res = least_squares(evaluate, [*center, *normalize(direction), 1], **solverargs)
		scores.append((
				np.mean(res.fun),
				'cylinder',
				(vec3(res.x[:3]), vec3(res.x[3:])),
				))
		#print('cylinder', res.nfev, np.mean(res.fun), '\t', list(res.x))

	# pick best regression of all
	best = min(scores, key=itemgetter(0))
	if attempt or best[0] > precision:
		raise SolveError('unable to find a suitable surface type')

	#print('---', best[1])
	return best[1], best[2]

guessjoint(solid1, solid2, surface1, surface2, guess=quat(), precision=1e-05)

Create a kinematic joint based on the surfaces given. The function will use guesssurface to find the surface kind and then deduce the appropriate joint to make the surfaces coincide.

Parameters:

Name	Type	Description	Default
solid1, solid2		solids the joint applies on	required
surface1, surface2		the surface to retreive the joint definition from	required
guess	(quat, mat3)	orientation tip to orient properly the joint axis, if there is	quat()
precision	float	precision for guesssurface	1e-05

Source code in madcad/reverse.py

def guessjoint(solid1, solid2, surface1, surface2, guess=quat(), precision=1e-5) -> 'joint':
	''' Create a kinematic joint based on the surfaces given. The function will use `guesssurface` to find the surface kind and then deduce the appropriate joint to make the surfaces coincide.

	Parameters:
		solid1, solid2:  	 solids the joint applies on
		surface1, surface2:  the surface to retreive the joint definition from
		guess(quat, mat3):   orientation tip to orient properly the joint axis, if there is
		precision(float):    precision for `guesssurface`
	'''
	from .joints import Planar, Gliding, Punctiform, Ball

	joints = {
		('plane', 'plane'): Planar,
		#('cylinder', 'plane'): Rolling,
		('cylinder', 'cylinder'): Gliding,
		#('cylinder', 'sphere'): Anular,
		('plane', 'sphere'): Punctiform,
		('sphere', 'sphere'): Ball,
		}
	t1, p1 = guesssurface(surface1, precision)
	t2, p2 = guesssurface(surface2, precision)
	joint_type = joints.get(tuple(sorted([t1, t2])))
	if not joint_type:
		raise ValueError('not junction registered for {}-{}'.format(t1, t2))

	if joint_type in (Gliding, Planar):
		if dot(guess*p1[1], p2[1]) < 0:
			p1 = p1[0], -p1[1]
	return joint_type(solid1, solid2, p1, p2)
