gear -- Generation of gears, racks, etc

This module provide functions to generate racks and gears with many different shapes.

The mainstream gears are involute gears (using involute of circles as contact curves). This is due to the standard shape of racks. And involute gears are the best choice for most designs, which is why the current implementation focusses on them.

However the tools here are modular, which means you can combine them with your own functions to create customized gears.

Examples

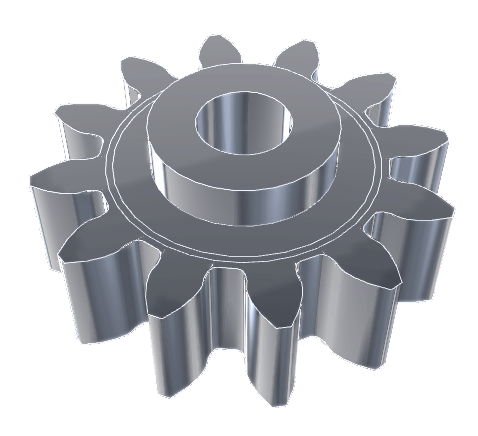

As a first use, you may want to generate a fully finished spur gear If you do not specify optional arguments, the function will provide good defaults for it.

    >>> # fully featured gear
    >>> gear(step=3, teeth=12, depth=4, bore_radius=1.5)

You may want to generate a more bizarre gear, with a a different hub for instance. You will then need to assemble a gear from its 3 components: exterior (tooths), structure (between hub and exterior), and hub (what holds the gear on an axis)

    >>> # this assemble a gear specifying each independant sub-parts
    >>> ext_radius = (3 * 12) / (2 * pi) - 3
    >>> int_radius = 4
    >>> geargather(

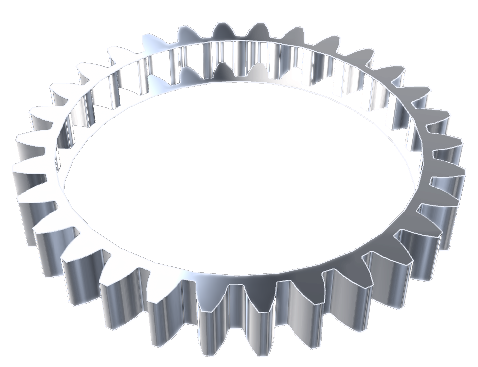

    ...      gearexterior(repeataround(gearprofile(3, 30), 30), depth=4),

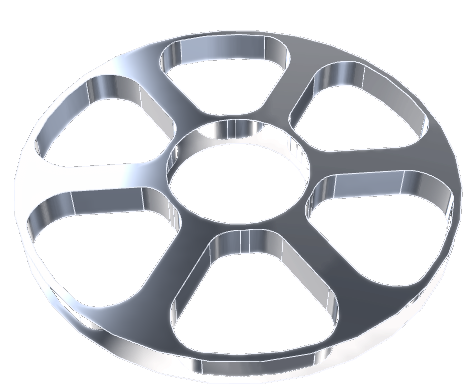

    ...      gearstructure("rounded", ext_radius, int_radius, 2, patterns=6),
    ...      my_hub_mesh,
    ... )

For reuse in your custom functions, the functions used to generate the gears are exposed:

    >>> # this is the raw profile of a tooth
    >>> gearprofile(step=3, teeth=12)

Tooth profiles generation

The following functions are focussing on involute gears. If you want more details on how involutes gears are defined and computed, you can take a look at the algorithm section

rackprofile(step, height=None, offset=0, asymetry=None, pressure_angle=radians(20), resolution=None)

Generate a 1-period tooth profile for a rack

Parameters:

Name	Type	Description	Default
step		period length over the primitive line	required
height		tooth half height	None
offset		rack reference line offset with the primitive line (as a distance) - the primitive line is the adherence line with gears - the reference line is the line half the tooth is above and half below	0
pressure_angle		angle of the tooth sides, a.k.a pressure angle of the contact	radians(20)

Source code in madcad/gear.py

def rackprofile(step, height=None, offset=0, asymetry=None, pressure_angle=radians(20), resolution=None) -> Wire:
	''' Generate a 1-period tooth profile for a rack

	![rackprofile](../screenshots/rackprofile.png)

	Parameters:
		step:		period length over the primitive line
		height:			tooth half height
		offset:	 	rack reference line offset with the primitive line (as a distance)
					  - the primitive line is the adherence line with gears
					  - the reference line is the line half the tooth is above and half below
		pressure_angle:		angle of the tooth sides, a.k.a  pressure angle of the contact
	'''
	# change name for convenience
	h = height
	a = asymetry
	e = offset
	if h is None:
		h = default_height(step, pressure_angle)
	if a is None:
		a = -0.1*h
	ta = tan(pressure_angle)
	x = 0.5 - 2*e/step*ta  # fraction of the tooth above the primitive circle

	return Wire([
		vec3(step*x/2 - ta * ( h-e-a),   h-e-a,  0),
		vec3(step*x/2 - ta * (-h-e-a),  -h-e-a,  0),
		vec3(step*(2-x)/2 + ta * (-h-e-a),  -h-e-a,  0),
		vec3(step*(2-x)/2 + ta * ( h-e-a),   h-e-a,  0),
		vec3(step*(2+x)/2 - ta * ( h-e-a),   h-e-a,  0),
		], groups=['rack'])

gearprofile(step, teeth, height=None, offset=0, asymetry=None, pressure_angle=radians(20), resolution=None, **kwargs)

Generate a 1-period tooth profile for a straight gear

Parameters:

Name	Type	Description	Default
step		period length over the primitive circle	required
tooth		number of tooth on the gear this profile is meant for	required
height		tooth half height	None
offset		offset distance of the matching rack profile (see above)	0
pressure_angle		pressure angle in the contact	radians(20)

Source code in madcad/gear.py

def gearprofile(step, teeth, height=None, offset=0, asymetry=None, pressure_angle=radians(20), resolution=None, **kwargs) -> Wire:
	''' Generate a 1-period tooth profile for a straight gear

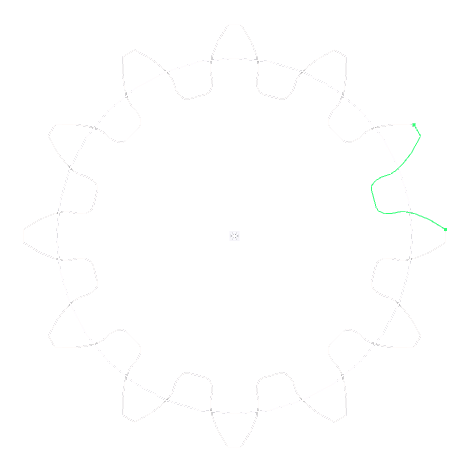

	![gearprofile](../screenshots/gearprofile.png)

	Parameters:
		step:		period length over the primitive circle
		tooth:			number of tooth on the gear this profile is meant for
		height:			tooth half height
		offset:		offset distance of the matching rack profile (see above)
		pressure_angle:		pressure angle in the contact
	'''
	# change name for convenience
	z = teeth
	h = height
	a = asymetry
	if h is None:
		h = default_height(step, pressure_angle)
	if a is None:
		a = -0.1*h
	p = step*z / (2*pi)	# primitive circle
	c = p * cos(pressure_angle)	# tangent circle to gliding axis

	e = offset  # change name for convenience
	#e = offset + 0.05*h  # the real offset is 5% (the 1*m, 1.25*m) when the standard says it is 0
	x = 0.5 + 2*e/step*tan(pressure_angle)  # fraction of the tooth above the primitive circle
	n = 2 + settings.curve_resolution(h, step/p, resolution)	# number of points to place

	o0 = angle(involute(c, 0, tan(pressure_angle)))	# offset of contact curve
	oi = atan((h-e-a)/p * tan(pressure_angle))		# offset of interference curve

	l0 = involuteat(c, p+h+e+a)	# interval size of contact curve

	# if the tooth height is unreachable, find the intersection between the two contact curves
	t0 = -step/(2*p)*x - o0
	t = t0+l0
	if involute(c, t0, t)[1] > 0:
		# Newton solver method
		for i in range(2*n+5):
			f = sin(t) + cos(t)*(t0-t)
			J = - sin(t)*(t0-t)
			t -= f/J
		l0 = t-t0

	# if there is an interference curve
	interference = c > p-h+e+a
	if interference:
		# Newton solver method
		# to compute the parameters (t1, t2) of the intersection between contact line and interference line
		t0, ti = o0, oi
		# initial state
		t1 = t0 - tan(pressure_angle)	# put contact line on primitive
		t2 = ti + sqrt(c**2 - (p-h+e+a)**2) /p	# put interference point on base circle
		for i in range(2*n+5):
			ct1, ct2 = cos(t1), cos(t2)
			st1, st2 = sin(t1), sin(t2)
			# function value
			f = (	c*vec2(ct1,st1) + c*(t0-t1)*vec2(-st1,ct1)
				+	(h-e-a-p)*vec2(ct2,st2) -p*(ti-t2)*vec2(-st2,ct2)
				)
			# jacobian matrix (f partial derivatives)
			J = mat2(
				-c*(t0-t1)*vec2(ct1,st1),
				p*(ti-t2)*vec2(ct2,st2) + (h-e)*vec2(-st2,ct2),
				)
			# iteration
			t1, t2 = vec2(t1,t2) - inverse(J)*f
			# prevent divergence out of the interesting range
			t1 = min(0, t1)
			t2 = max(0, t2)
		li = t2 - ti	# interval size of interference curve
		s0 = t0 - t1	# generation start of contact curve
	else:
		s0 = involuteat(c, p-h+e+a)

	points = []
	tracks = []

	# parameters for first side
	place = step/(2*p)*-x
	t0 = place - o0
	ti = place - oi
	# interference line
	if interference:
		for i in range(n):
			t = interpol1(ti, ti-li, i/n)
			v = involuteof(p, ti, -h+e+a, t)
			points.append(vec3(v,0))
			tracks.append(0)
		tracks[-1] = 1
	# contact line
	for i in range(n+1):
		t = interpol1(t0+s0, t0+l0, i/n)
		v = involute(c, t0, t)
		points.append(vec3(v,0))
		tracks.append(1)
	tracks[-1] = 2

	# parameter for second side
	place = step/(2*p)*x	# place of intersection with the primitive circle
	t0 = place + o0	# start of contact curve
	ti = place + oi	# start of interference curve
	# contact line
	for i in range(n+1):
		t = interpol1(t0-l0, t0-s0, i/n)
		v = involute(c, t0, t)
		points.append(vec3(v,0))
		tracks.append(3)
	tracks[-1] = 4
	# interference line
	if interference:
		for i in range(1, n+1):
			t = interpol1(ti+li, ti, i/n)
			v = involuteof(p, ti, -h+e+a, t)
			points.append(vec3(v,0))
			tracks.append(4)
		tracks[-1] = 5

	points.append(angleAxis(step/p, vec3(0,0,1)) * points[0])
	tracks.append(5)

	return Wire(points, tracks=tracks, groups=['interference', 'contact', 'top', 'contact', 'interference', 'bottom'])

spherical_rackprofile(teeth, pressure_angle=pi / 9, ka=1, kd=1.25, resolution=None)

Return a Wire which is a tooth of the rack.

Parameters:

Name	Type	Description	Default
teeth	float	number of tooth of the rack equal to z_pinion / sin(pitch_cone_angle) or z_wheel / sin(shaft_angle - pitch_cone_angle)	required
pressure_angle	float	the pressure angle of the gear	pi / 9
ka	float	the addendum coefficient	1
kd	float	the dedendum coefficient	1.25

Source code in madcad/gear.py

def spherical_rackprofile(teeth:float, pressure_angle:float=pi / 9, ka:float=1, kd:float=1.25, resolution=None):
	"""
	Return a `Wire` which is a tooth of the rack.

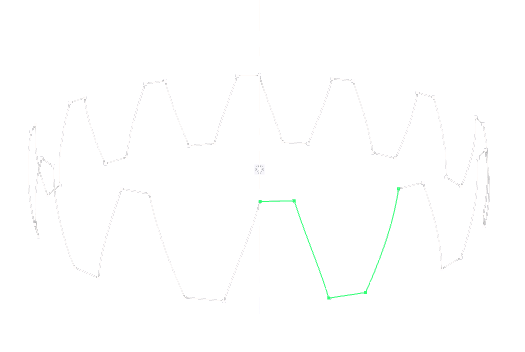

	![spherical_rackprofile](../screenshots/spherical_rackprofile.png)

	Parameters:
		teeth (float):
			number of tooth of the rack equal to `z_pinion / sin(pitch_cone_angle)`
			or `z_wheel / sin(shaft_angle - pitch_cone_angle)`
		pressure_angle (float): 	the pressure angle of the gear
		ka (float): 				the addendum coefficient
		kd (float): 				the dedendum coefficient
	"""
	div = settings.curve_resolution(1, pi/teeth, resolution)
	t_min, t_max, phase1, phase2, involute = spherical_rack_tools(teeth, pressure_angle, ka, kd)

	side1 = [involute(t, 0)		 for t in linrange(t_min, t_max, div=div)]
	side2 = [involute(-t, phase1)   for t in linrange(t_min, t_max, div=div)]
	segment = Segment(involute(t_min, -phase2), side1[0]).mesh()
	segment2 = Segment(side1[-1], side2[-1]).mesh()
	wire = segment + Wire(side1) + segment2 + Wire(side2).flip()
	return wire

spherical_gearprofile(teeth, pitch_cone_angle, pressure_angle=pi / 9, ka=1, kd=1.25, resolution=None)

Generate and return a Wire of a 1-period tooth spherical profile for a filet gear

Parameters:

Name	Type	Description	Default
teeth	int	number of tooth on the gear this profile is meant for	required
pitch_cone_angle	float	the pitch cone angle	required
pressure_angle	float	pressure angle of the tooth	pi / 9
ka	float	addendum coefficient	1
kd	float	dedendum coefficient	1.25

Source code in madcad/gear.py

def spherical_gearprofile(
		teeth:int,
		pitch_cone_angle:float,
		pressure_angle:float=pi / 9,
		ka:float=1,
		kd:float=1.25,
		resolution = None,
		) -> Wire:
	"""
	Generate and return a `Wire` of a 1-period tooth spherical profile for a filet gear

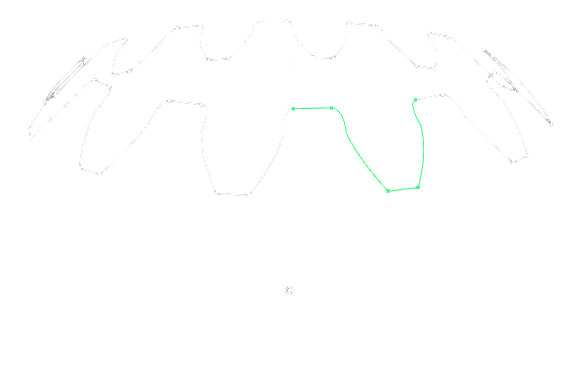

	![spherical_gearprofile](../screenshots/spherical_gearprofile.png)

	Parameters:
		teeth (int):						number of tooth on the gear this profile is meant for
		pitch_cone_angle (float): 		the pitch cone angle
		pressure_angle (float):			pressure angle of the tooth
		ka (float):						addendum coefficient
		kd (float): 					dedendum coefficient
	"""
	# Initialization of parameters
	gamma_p = pitch_cone_angle # for convenience
	gamma_b = asin(cos(pressure_angle) * sin(gamma_p))
	cos_b, sin_b = cos(gamma_b), sin(gamma_b)
	tooth_size = pi / teeth
	involute = lambda t, t0 : spherical_involute(gamma_b, t0, t)
	epsilon_p = acos(cos(gamma_p) / cos_b) / sin_b
	theta_p = anglebt(involute(0, 0) * vec3(1, 1, 0), involute(epsilon_p, 0) * vec3(1, 1, 0))
	phase_diff = tooth_size + 2 * theta_p
	phase_empty = phase_interference = 2 * pi / teeth - phase_diff
	# The following number `k` is useful to simplify some calculations
	# It's broadly speaking `1/z_rack` and `z_rack` is not an integer !
	k = sin(gamma_p) / teeth

	# Spherical involute part
	gamma_f = gamma_p + 2 * ka * k # addendum cone angle
	gamma_r = gamma_p - 2 * kd * k # dedendum cone angle
	t_min = 0
	t_max = acos(cos(gamma_f) / cos_b) / sin_b
	if gamma_r > gamma_b:
		v = vec3(1, 1, 0)
		t_min = acos(cos(gamma_r) / cos_b) / sin_b
		phase_empty = 2 * pi / teeth - anglebt(
			involute(t_min, 0) * v, involute(-t_min, phase_diff) * v
		)

	# Calculation of offsets due to geometry of spherical rack
	_, t_rack_max, phase1, _, rinvolute = spherical_rack_tools(1 / k, pressure_angle, ka, kd)
	interference = lambda t, t0 : spherical_involuteof(gamma_p, t0, pressure_angle, t)
	pressure_angle = 2 * ka * k
	n1, n2 = rinvolute(t_rack_max, 0) * vec3(1, 1, 0), rinvolute(-t_rack_max, phase1) * vec3(1, 1, 0)
	beta = 0.5 * anglebt(n1, n2) * length(n1) / sin_b

	# Newton method to calculate the intersection between
	# the spherical involute and the spherical interference.
	# Objective function
	involuteat = lambda t2, t0 : spherical_involuteof(gamma_p, t0, pressure_angle, t2)
	f = lambda t1, t2: involute(t1, 0) - involuteat(t2, -0.5 * phase_interference + beta)
	# Jacobian matrix
	J = jacobian_spherical_involute(gamma_b, gamma_p, 0, -0.5 * phase_interference + beta, pressure_angle)

	# Compute the intersection values
	t1, t2, t3 = 0.5 * t_max, -0.5 * t_max, 0
	for i in range(8):
		t1, t2, t3 = vec3(t1, t2, t3) - inverse(J(t1, t2)) * f(t1, t2)

	# Build sides of a tooth
	div = settings.curve_resolution(1, 2*pi/teeth, resolution)
	interference1 = [interference(t, -0.5 * phase_interference + beta) for t in linrange(0, t2, div=div)]
	interference2 = [interference(-t, phase_diff + 0.5 * phase_interference - beta) for t in linrange(0, t2, div=div)]
	side1 = Wire(interference1[:-1]) + Wire([involute(t, 0) for t in linrange(t1, t_max, div=div)])
	side2 = Wire(interference2[:-1]) + Wire([involute(-t, phase_diff) for t in linrange(t1, t_max, div=div)])
	side2.groups = side1.groups = ['interference', 'contact']

	# Extreme points of sides to compute angle between them
	a = interference(0, -0.5 * phase_interference + beta)
	b = interference(0, phase_diff + 0.5 * phase_interference - beta)
	final_phase_empty = 2 * pi / teeth - anglebt(a * vec3(1, 1, 0), b * vec3(1, 1, 0))
	top = Segment(involute(t_max, 0), involute(-t_max, phase_diff)).mesh()
	bottom = Segment(angleAxis(-final_phase_empty, vec3(0, 0, 1)) * a, a).mesh()
	top.groups = ['top']
	bottom.groups = ['bottom']

	return bottom + side1 + top + side2.flip()

Gear generation

gear(step, teeth, depth, bore_radius=0, int_height=0, pattern='full', **kwargs)

Generate a pinion.

Any extra argument will go to functions gearprofile, gearstructure, or gearhub

Parameters:

Name	Type	Description	Default
step	float	tooth step over the primitive curve, same as the matching rack step the primitive perimeter is step * teeth and radius is step * teeth / 2*pi	required
teeth	int	number of teeth	required
depth	float	extrusion eight - width of the gear along its axis	required
bore_radius	float	radius of the main bore	0
int_height	float	if you want a pinion with a structure thinner than the value of depth, the total height will be total_height = depth - 2 * int_height	0
pattern		determine the structure between exterior (tooth) and hub This argument specifies the use a a function named 'pattern_'+pattern in this module.	'full'

• Extra parameters for gearprofile

  offset (float):         offset of tooth (as a distance)
  pressure_angle (float):                 pressure angle in radian


• Extra parameters for gearexterior

  helix_angle (float):    helix angle to get a helical pinion in radian
  chamfer (bool | float | (float, float)):

          set the parameter of chamfer `(angle, ratio)` such as `angle` is the chamfer angle,
          `ratio` is where the chamfer is applied (`rmin + ratio * (rmax - rmin)`)


• Extra parameters for gearstructure

  ratio (float):  influence the proportion of dimensions of the structure


Note: int_height impacts the thickness of the structure unless specified

• Extra parameters for gearhub

  hub_height (float):             height of the hub shoulder


Note:

    - `int_height` impacts the height of the hub unless specified.
    - if `hub_height` is null, there will be no hub.

Source code in madcad/gear.py

@cachefunc
def gear(
	step,
	teeth: int,
	depth,
	bore_radius = 0,
	int_height = 0,
	pattern = 'full',
	**kwargs,
) -> Mesh:
	"""
	Generate a pinion.

	![gear](../screenshots/gear-minimal.png)

	Any extra argument will go to functions `gearprofile`, `gearstructure`, or `gearhub`

	Parameters:
		step (float):
			tooth step over the primitive curve, same as the matching rack step
			the primitive perimeter is `step * teeth` and radius is `step * teeth / 2*pi`
		teeth (int):				number of teeth
		depth (float):			extrusion eight - width of the gear along its axis
		bore_radius (float):	radius of the main bore
		int_height (float):		if you want a pinion with a structure thinner than the value of `depth`,
								the total height will be `total_height = depth - 2 * int_height`
		pattern:
			determine the structure between exterior (tooth) and hub
			This argument specifies the use a a function named `'pattern_'+pattern` in this module.

	* Extra parameters for `gearprofile`

		offset (float):		offset of tooth (as a distance)
		pressure_angle (float): 		pressure angle in radian

	* Extra parameters for `gearexterior`

		helix_angle (float):	helix angle to get a helical pinion in radian
		chamfer (bool | float | (float, float)):

			set the parameter of chamfer `(angle, ratio)` such as `angle` is the chamfer angle,
			`ratio` is where the chamfer is applied (`rmin + ratio * (rmax - rmin)`)

	* Extra parameters for `gearstructure`

		ratio (float):	influence the proportion of dimensions of the structure

	Note: `int_height` impacts the thickness of the structure unless specified

	* Extra parameters for `gearhub`

		hub_height (float):		height of the hub shoulder

	Note:

		- `int_height` impacts the height of the hub unless specified.
		- if `hub_height` is null, there will be no hub.
	"""
	# profile = repeataround(gearprofile(step, teeth, **kwargs), teeth)
	profile = gearprofile(step, teeth, **kwargs)

	# Parts
	exterior = gearexterior(profile, teeth, depth, step, **kwargs)
	ext_int = minmax_radius(exterior.points)[0]
	hub = gearhub(bore_radius, depth, int_height, hub_radius=min(2 * bore_radius, 0.9 * ext_int), **kwargs)
	hub_ext = minmax_radius(hub.points)[1]
	structure = gearstructure(
					pattern,
					0.95 * ext_int,
					max(hub_ext, 0.2 * ext_int),
					depth,
					int_height,
					**kwargs)
	return geargather(exterior, structure, hub)

geargather(exterior, structure, hub)

Gather all parts: exterior, structure, and hub

You can obtain them via the provided functions, or generate them yourself.

Source code in madcad/gear.py

def geargather(exterior, structure, hub) -> Mesh:
	"""
	Gather all parts: exterior, structure, and hub

	You can obtain them via the provided functions, or generate them yourself.
	"""
	exterior.mergeclose()
	structure.mergeclose()
	hub.mergeclose()

	# Parameters
	int_e_radius = minmax_radius(exterior.points)[0]

	box = structure.box()
	height_top = box.max.z
	height_bot = box.min.z
	int_radius, ext_radius = minmax_radius(structure.points)

	box = hub.box()
	height_h_top = box.max.z
	height_h_bot = box.min.z
	ext_h_radius = minmax_radius(hub.points)[1]

	assert ext_h_radius * COMPREC <= int_radius
	assert ext_radius * COMPREC <= int_e_radius

	# borderline overlapping check
	prec2 = (4*NUMPREC*ext_radius)**2
	def radius_height(circle):
		p = circle.points[circle.edges[0][0]]
		return vec2(length(p - circle.barycenter()), p.z)
	def samecircle(c1, c2):
		return distance2(radius_height(c1), radius_height(c2)) < prec2

	# select and join all borderlines
	# j1 is the junction between `exterior` and `structure`
	# j2 is the junction between `structure` and `hub`
	top = j1_top = j2_top = bottom = j1_bot = j2_bot = Mesh()

	circle_int_e_top = select(exterior, vec3(0, 0, height_top))
	circle_ext_h_top = select(hub, vec3(ext_h_radius, 0, height_h_top))
	if not samecircle(circle_int_e_top, circle_ext_h_top):
		circle_ext_s_top = select(structure, vec3(ext_radius, 0, height_top))
		circle_int_s_top = select(structure, vec3(int_radius, 0, height_top))

		if not samecircle(circle_ext_s_top, circle_int_e_top):
			j1_top = junction(circle_ext_s_top, circle_int_e_top, tangents="straight", resolution=('div',0))
		if not samecircle(circle_ext_h_top, circle_int_s_top):
			j2_top = junction(circle_ext_h_top, circle_int_s_top, tangents="straight", resolution=('div',0))

		top = j1_top + j2_top

	circle_int_e_bot = select(exterior, vec3(0, 0, height_bot))
	circle_ext_h_bot = select(hub, vec3(ext_h_radius, 0, height_h_bot))
	if not samecircle(circle_int_e_bot, circle_ext_h_bot):
		circle_ext_s_bot = select(structure, vec3(ext_radius, 0, height_bot))
		circle_int_s_bot = select(structure, vec3(int_radius, 0, height_bot))

		if not samecircle(circle_ext_s_bot, circle_int_e_bot):
			j1_bot = junction(circle_ext_s_bot, circle_int_e_bot, tangents="straight", resolution=('div',0))
		if not samecircle(circle_ext_h_bot, circle_int_s_bot):
			j2_bot = junction(circle_ext_h_bot, circle_int_s_bot, tangents="straight", resolution=('div',0))

		bottom = j1_bot + j2_bot

	if isinstance(structure, Web):
		mesh = exterior + top + bottom + hub
	else:
		mesh = exterior + top + structure + bottom + hub
	return mesh.finish() .option(color=settings.colors['gear'])

gearexterior(profile, teeth, depth, step=None, helix_angle=0, chamfer=0, resolution=None, **kwargs)

Generate the external part of the pinion

Parameters:

Name	Type	Description	Default
profile	Web	profile of the pinion generated by gearprofile	required
depth	float	extrusion eight - width of the gear along its axis	required
step	float	step of chordal pitch, must be specified for non-null helix_angle, unused otherwise	None
helix_angle	float	helix angle for helical gears - only without filet; filet = False - it must be a radian angle	0
chamfer	bool | float | (float, float)	set the parameter of chamfer (angle, ratio) such as angle is the chamfer angle, ratio is where the chamfer is applied (rmin + ratio * (rmax - rmin))	0

Source code in madcad/gear.py

def gearexterior(
	profile: Wire,
	teeth,
	depth,
	step=None,
	helix_angle=0,
	chamfer=0,
	resolution=None,
	**kwargs,
) -> Mesh:
	"""
	Generate the external part of the pinion

	![gearexterior](../screenshots/gearexterior.png)

	Parameters:
		profile (Web):			profile of the pinion generated by `gearprofile`
		depth (float):			extrusion eight - width of the gear along its axis
		step (float):			step of chordal pitch, must be specified for non-null helix_angle, unused otherwise
		helix_angle (float):	helix angle for helical gears - only without filet; `filet` = False - it must be a radian angle
		chamfer (bool | float | (float, float)):
			set the parameter of chamfer `(angle, ratio)` such as `angle` is the chamfer angle,
			`ratio` is where the chamfer is applied (`rmin + ratio * (rmax - rmin)`)
	"""

	# Parameters
	rmin, rmax = minmax_radius(profile.points)
	margin = 0.1*(rmax - rmin)
	radial = normalize(profile[0])

	if chamfer:
		if isinstance(chamfer, (tuple, list)):
			chamfer_angle, ratio = chamfer
		elif isinstance(chamfer, float):
			chamfer_angle, ratio = chamfer, 0.5
		elif isinstance(chamfer, bool):
			chamfer_angle, ratio = pi / 8, 0.5
		else:
			raise TypeError('chamfer value must be a tuple, float or bool, not {}'.format(type(chamfer)))
		if chamfer_angle < 0:
			raise ValueError("chamfer angle must be positive.")

		top = wire([
			radial * (rmin - margin),
			radial * mix(rmin, rmax, ratio),
			radial * (rmax + margin) - Z * tan(chamfer_angle) * (ratio*(rmax-rmin) + margin)
			]).segmented()
	else:
		top = wire([
			radial * (rmin - margin),
			radial * (rmax + margin),
			]).segmented()

	top = revolution(top, angle=2*pi/teeth)
	bottom = top.transform(scaledir(Z, -1)) .flip()

	if abs(helix_angle) > pi/2:
		raise ValueError("helix angle absolute value must be below pi/2")
	if helix_angle:  # helical tooth case
		# Step to generate a helical transformation
		angle = depth/rmax * tan(helix_angle)
		step = settings.curve_resolution(
			depth / cos(helix_angle),
			abs(angle),
			resolution)
		# Generation of helical gear surface
		transform = lambda x: translate(x*depth*Z) * rotate(x*angle, Z)
		tooth = extrans(profile, map(transform, linrange(0-NUMPREC, 1+NUMPREC, div=step)))
		top = top.transform(transform(1))
	else:
		# straight tooth case
		transform = depth*Z
		tooth = extrusion(profile, transform)
		top = top.transform(transform)

	# Boolean operation
	flanges = top + bottom
	result = intersection(flanges, tooth).transform(-0.5*depth*Z)
	# Repetition for a complete exterior surface
	return repeataround(result, teeth).finish()

gearstructure(pattern, ext_radius, int_radius, depth, int_height=0, ratio=1, **kwargs)

Generate the internal part of the pinion

Parameters:

Name	Type	Description	Default
ext_radius	float	given by the attribut _radius of the result of repeataround - to avoid interference, it must be smaller than _radius (for instance 0.95 * _radius))	required
int_radius	float	it is the same radius of the largest radius of the hub part	required
depth	float	face width	required
pattern		any of 'full', 'circle', 'rect', 'rounded'	required
int_height	float	if you want a pinion with a structure thinner than the value of depth, the total height will be total_height = depth - 2 * int_height	0

Source code in madcad/gear.py

def gearstructure(
	pattern,
	ext_radius,
	int_radius,
	depth,
	int_height = 0,
	ratio = 1,
	**kwargs,
) -> Mesh:
	"""
	Generate the internal part of the pinion

	![gearstructure](../screenshots/gearstructure.png)

	Parameters:
		ext_radius (float):
			given by the attribut `_radius` of the result of `repeataround` -
			to avoid interference, it must be smaller than `_radius` (for instance 0.95 * `_radius`))
		int_radius (float):	it is the same radius of the largest radius of the hub part
		depth (float):		face width
		pattern:			any of 'full', 'circle', 'rect', 'rounded'
		int_height (float):
			if you want a pinion with a structure thinner than the value of `depth`,
			the total height will be `total_height = depth - 2 * int_height`
	"""
	# int_radius must not be 0
	int_radius = int_radius or 0.1 * ext_radius
	pattern = "full" if ext_radius == int_radius else pattern
	pattern_function = globals()['pattern_' + pattern]
	return pattern_function(ext_radius, int_radius, depth, int_height, ratio=ratio, **kwargs)

gearhub(bore_radius, depth, int_height=0, hub_height=None, hub_radius=None, resolution=None, **kwargs)

Generate a hub for a pinion part

Parameters:

Name	Type	Description	Default
bore_radius	float	radius of the central bore	required
depth	float	face width; same parameter for gearexterior and gearstructure	required
int_height	float	only useful for no hub case, checkout the function gearstructure for more information	0
hub_height	float	height of the hub	None
hub_radius	float	external radius of the hub	None

Note

• if bore_radius is null, the function will return a top circle and a bottom circle used for geargather function
• if hub_height is null, the function will return a structure with a bore and without a hub

Source code in madcad/gear.py

def gearhub(
	bore_radius,
	depth,
	int_height = 0,
	hub_height = None,
	hub_radius = None,
	resolution = None,
	**kwargs,
) -> Web:
	"""
	Generate a hub for a pinion part

	Parameters:
		bore_radius (float):	radius of the central bore
		depth (float):			face width; same parameter for `gearexterior` and `gearstructure`
		int_height (float):		only useful for no hub case, checkout the function `gearstructure` for more information
		hub_height (float):		height of the hub
		hub_radius (float):		external radius of the hub

	Note:
		- if `bore_radius` is null, the function will return a top circle and a bottom circle used for `geargather` function
		- if `hub_height` is null, the function will return a structure with a bore and without a hub
	"""
	if not (bore_radius):  # No hub case
		half_depth = depth / 2
		circle_ref = web(Circle((O,Z), depth * 0.1, resolution=resolution))
		circle_ref = triangulation(circle_ref)
		top_surface = circle_ref.transform(vec3(0, 0, half_depth - int_height))
		bottom_surface = circle_ref.transform(vec3(0, 0, -half_depth + int_height)).flip()
		return top_surface + bottom_surface

	if hub_height is None:
		hub_height = bore_radius
	if not (hub_radius):
		hub_radius = 2 * bore_radius
	height = hub_height + depth / 2 if hub_height else depth / 2 - int_height
	axis = (vec3(0, 0, height), vec3(0, 0, 1))
	bore_circle = Circle(axis, bore_radius, resolution=resolution)
	hub_circle = Circle(axis, hub_radius, resolution=resolution)

	# Top part
	top_surface = triangulation(web(bore_circle).flip() + web(hub_circle))

	# Lateral surfaces
	lateral_surfaces = extrusion(web(bore_circle), vec3(0, 0, -hub_height - depth))

	# Bottom part
	axis = (vec3(0, 0, -depth / 2), vec3(0, 0, 1))
	bottom_bore_circle = Circle(axis, bore_radius, resolution=resolution)
	bottom_hub_circle = Circle(axis, hub_radius, resolution=resolution)
	bottom_web = web(bottom_bore_circle) + web(bottom_hub_circle).flip()
	bottom_surface = triangulation(bottom_web)

	return top_surface + bottom_surface + lateral_surfaces

Bevel gear generation

bevelgear(step, teeth, pitch_cone_angle, pressure_angle=pi / 9, ka=1, kd=1.25, helix_angle=None, bore_radius=None, bore_height=None, resolution=None)

Generate a filet gear.

Parameters:

Name	Type	Description	Default
step	float	tooth step over the primitive curve, same as the matching rack step the primitive perimeter is step * teeth and radius is step * teeth / (2 * pi)	required
teeth	int	number of teeth	required
pitch_cone_angle	float	pitch cone angle	required
pressure_angle	float	the pressure angle of the tooth	pi / 9
ka (float)		addendum coefficient	required
kd (float)		dedendum coefficient	required
helix_angle	float	helix angle of the tooth	None
bore_radius	float	radius of the main bore	None
bore_height	float	height of the main bore	None

Source code in madcad/gear.py

def bevelgear(
	step:float,
	teeth:int,
	pitch_cone_angle:float,
	pressure_angle:float=pi/9,
	ka:float=1,
	kd:float=1.25,
	helix_angle:float=None,
	bore_radius:float=None,
	bore_height:float=None,
	resolution = None,
):
	"""
	Generate a filet gear.

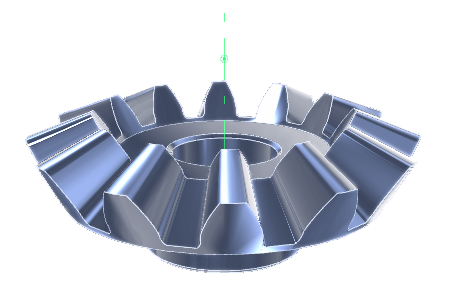

	![bevelgear](../screenshots/bevelgear.png)

	Parameters:
		step (float):
			tooth step over the primitive curve, same as the matching rack step
			the primitive perimeter is `step * teeth` and radius is `step * teeth / (2 * pi)`
		teeth (int):		 			number of teeth
		pitch_cone_angle (float):	pitch cone angle
		pressure_angle (float):		the pressure angle of the tooth
		ka (float) :				addendum coefficient
		kd (float) :				dedendum coefficient
		helix_angle (float):		helix angle of the tooth
		bore_radius (float):   		radius of the main bore
		bore_height (float):   		height of the main bore
	"""
	if helix_angle:
		return helical_bevel_gear(step, teeth, pitch_cone_angle, pressure_angle, ka, kd, helix_angle,
						bore_radius, bore_height, resolution)
	else:
		return straight_bevel_gear(step, teeth, pitch_cone_angle, pressure_angle, ka, kd,
						bore_radius, bore_height, resolution)

Helper tools

gearcircles(step, teeth, height=None, offset=0, pressure_angle=radians(20))

return the convenient circles radius for a gear with the given parameters return is (primitive, base, bottom, top)

Source code in madcad/gear.py

def gearcircles(step, teeth, height=None, offset=0, pressure_angle=radians(20)):
	''' return the convenient circles radius for a gear with the given parameters
	return is `(primitive, base, bottom, top)`
	'''
	if height is None:
		height = default_height(step, pressure_angle)
	offset = height*offset
	p = step*teeth / (2*pi)	# primitive circle
	c = p * cos(pressure_angle)	# tangent circle to gliding axis
	return p, c, p-height-offset, p+height-offset

involute(c, t0, t)

give a point of parameter t on involute from circle or radius c, starting from t0 on the circle

t and t0 are angular positions

Source code in madcad/gear.py

def involute(c, t0, t):
	''' give a point of parameter `t` on involute from circle or radius `c`, starting from `t0` on the circle

		`t` and `t0` are angular positions
	'''
	x = vec2(cos(t), sin(t))
	y = vec2(-x[1], x[0])
	return c*(x + y*(t0-t))

involuteat(c, r)

give the parameter for the involute of circle radius c to reach radius r

Source code in madcad/gear.py

def involuteat(c, r):
	''' give the parameter for the involute of circle radius `c` to reach radius `r` '''
	return sqrt((r/c)**2 - 1)

involuteof(c, t0, d, t)

give a point of parameter t on involute with offset, from circle or radius c, starting from t0 on the circle

t and t0 are angular positions

Source code in madcad/gear.py

def involuteof(c, t0, d, t):
	''' give a point of parameter `t` on involute with offset, from circle or radius `c`, starting from `t0` on the circle

		`t` and `t0` are angular positions
	'''
	x = vec2(cos(t), sin(t))
	y = vec2(-x[1], x[0])
	return (c+d)*x + c*y*(t0-t)

spherical_involute(cone_angle, t0, t)

Return spherical involute function

Parameters:

Name	Type	Description	Default
t	float	the angular position	required
t0	float	the difference phase	required
cone_angle	float	the cone angle	required

Return

a normalized vec3

Source code in madcad/gear.py

def spherical_involute(cone_angle:float, t0:float, t:float) -> vec3:
	"""
	Return spherical involute function

	Parameters:
		t (float): 				the angular position
		t0 (float): 			the difference phase
		cone_angle (float): 	the cone angle

	Return:
		a normalized `vec3`
	"""
	cos_g, sin_g = cos(cone_angle), sin(cone_angle)
	return vec3(
		sin_g * cos(t * sin_g) * cos(t + t0) + sin(t * sin_g) * sin(t + t0),
		sin_g * cos(t * sin_g) * sin(t + t0) - sin(t * sin_g) * cos(t + t0),
		cos_g * cos(t * sin_g),
	)

spherical_involuteof(pitch_cone_angle, t0, pressure_angle, t)

Return the spherical interference function

Parameters:

Name	Type	Description	Default
t	float	the angular position	required
t0	float	the difference phase	required
pitch_cone_angle	float	the pitch cone angle	required
pressure_angle	float	the height angle offset of the rack	required

Return

a normalized vec3

Source code in madcad/gear.py

def spherical_involuteof(pitch_cone_angle:float, t0:float, pressure_angle:float, t:float) -> vec3:
	"""
	Return the spherical interference function

	Parameters:
		t (float): 					the angular position
		t0 (float): 				the difference phase
		pitch_cone_angle (float):	the pitch cone angle
		pressure_angle(float): 				the height angle offset of the rack

	Return:
		a normalized `vec3`
	"""
	cos_p, sin_p = cos(pitch_cone_angle), sin(pitch_cone_angle)
	return (
		+ cos(pressure_angle) * spherical_involute(pitch_cone_angle, t0, t)
		+ sin(pressure_angle) * vec3(-cos_p * cos(t+t0), -cos_p * sin(t+t0), sin_p)
		)

Structure patterns

Those are the functions generating usual structures ready to used in geargather.

pattern_circle(ext_radius, int_radius, depth, int_height=0, ratio=1, patterns=5, circles_radius=None, circles_place=None, **kwargs)

Generate two parts of the structure (the top and the bottom) with patterns distributed on the whole structure.

Return a tuple (Web, Web, Mesh) where the first Web is the top of the structure, the second Web is the bottom of the structure and the last element Mesh is all side surfaces.

Parameters:

Name	Type	Description	Default
ext_radius	float	radius of the external border of the structure	required
int_radius	float	radius of the internal border of the structure	required
depth	float	face width	required
int_height	float	if you want a pinion with a structure thinner than the value of depth, the total height will be total_height = depth - 2 * int_height	0
ratio	float	number that allows to change proportionally the radius of circles	1
patterns	int	number of circles of the structure	5
circles_radius	float	radius of circles	None
circles_place	float	radius where the origins of circles are placed	None

Note

• For instance, with a ratio of 1.5, the radius of circles circles_radius will be divided by 1.5
• If circles_radius is chosen, ratio won't impact the radius of circles circles_radius

Source code in madcad/gear.py

def pattern_circle(
	ext_radius,
	int_radius,
	depth,
	int_height = 0,
	ratio = 1,
	patterns: int = 5,
	circles_radius = None,
	circles_place = None,
	**kwargs,
) -> Mesh:
	"""
	Generate two parts of the structure (the top and the bottom) with `patterns` distributed on the whole structure.

	Return a tuple (Web, Web, Mesh) where the first `Web` is the top of the structure,
	the second `Web` is the bottom of the structure and the last element `Mesh` is all side surfaces.

	Parameters:
		ext_radius (float): radius of the external border of the structure
		int_radius (float): radius of the internal border of the structure
		depth (float): face width
		int_height (float): if you want a pinion with a structure thinner than the value of `depth`,
							the total height will be `total_height = depth - 2 * int_height`
		ratio (float): number that allows to change proportionally the radius of circles
		patterns (int): number of circles of the structure
		circles_radius (float): radius of circles
		circles_place (float): radius where the origins of circles are placed

	Note:
		- For instance, with a ratio of 1.5, the radius of circles `circles_radius` will be divided by 1.5
		- If `circles_radius` is chosen, `ratio` won't impact the radius of circles `circles_radius`
	"""
	# Parameters
	half_depth = depth / 2
	if not (circles_radius) and not (circles_place):
		assert 0.5 < ratio, "`ratio` must be in the interval ]0.5; +inf["
	if not circles_place:
		circles_place = (ext_radius + int_radius) / 2
	if not circles_radius:
		circles_radius = (ext_radius - int_radius) / (4 * ratio)

	assert circles_radius / circles_place < sin(pi / patterns), "too many circles for the specified size. Change either 'ratio', 'circle_radius' or 'patterns'"

	Z = vec3(0,0,1)
	axis = (vec3(0,0,0), Z)

	# Borders
	ext_circle = web(Circle(axis, ext_radius))
	int_circle = web(Circle(axis, int_radius)).flip()

	# Pattern
	circle_ref = web(Circle((vec3(circles_place, 0, 0), Z), circles_radius))
	angle = 2 * pi / patterns
	pattern_profile = repeat(circle_ref.flip(), patterns, rotatearound(angle, axis))

	# Profiles and surfaces
	webs_ref = (pattern_profile, ext_circle, int_circle)
	top_webs = [wire.transform(vec3(0, 0, half_depth - int_height)) for wire in webs_ref]
	bottom_webs = [wire.transform(vec3(0, 0, -half_depth + int_height)).flip() for wire in webs_ref]

	top_profile = reduce(add, top_webs)
	bottom_profile = reduce(add, bottom_webs)
	surfaces = extrusion(bottom_webs[0].flip(), vec3(0, 0, depth - 2 * int_height))

	mesh = triangulation(top_profile) + triangulation(bottom_profile) + surfaces
	mesh.mergeclose()
	return mesh

pattern_full(ext_radius, int_radius, depth, int_height=0, **kwargs)

Generate two full parts of the structure (the top and the bottom).

Return a tuple (Web, Web, None) where the first Web is the top of the structure and the second Web is the bottom of the structure.

Parameters:

Name	Type	Description	Default
ext_radius	float	float (radius of the external border of the pattern	required
int_radius	float	radius of the internal border of the pattern	required
depth	float	face width	required
int_height	float	if you want a pinion with a structure thinner than the value of depth, the total height will be total_height = depth - 2 * int_height	0

Source code in madcad/gear.py

def pattern_full(ext_radius, int_radius, depth, int_height=0, **kwargs) -> Mesh:
	"""
	Generate two full parts of the structure (the top and the bottom).

	Return a tuple (Web, Web, None) where the first `Web` is the top of the structure and
	the second `Web` is the bottom of the structure.

	Parameters:
		ext_radius (float): float (radius of the external border of the pattern
		int_radius (float): radius of the internal border of the pattern
		depth (float): face width
		int_height (float):
			if you want a pinion with a structure thinner than the value of `depth`,
			the total height will be `total_height = depth - 2 * int_height`
	"""
	half_depth = depth / 2
	assert half_depth > int_height, "`int_height` must be smaller than `depth / 2`"

	axis = (O, Z)
	circles_ref = web(Circle(axis, ext_radius)) + web(Circle(axis, int_radius)).flip()
	top_profile = circles_ref.transform(vec3(0, 0, half_depth - int_height))
	bottom_profile = circles_ref.transform(vec3(0, 0, -half_depth + int_height)).flip()
	if ext_radius == int_radius:
		return top_profile + bottom_profile
	mesh = triangulation(top_profile) + triangulation(bottom_profile)
	mesh.mergeclose()
	return mesh

pattern_rect(ext_radius, int_radius, depth, int_height=0, ratio=1, patterns=5, ext_thickness=None, int_thickness=None, **kwargs)

Generate two parts of the structure (the top and the bottom) with patterns distributed on the whole structure. All corners are straight. Check the function pattern_rounded to get rounded corners.

Return a tuple (Web, Web, Mesh) where the first Web is the top of the structure, the second Web is the bottom of the structure and the last element Mesh is all side surfaces.

Parameters:

Name	Type	Description	Default
ext_radius		float (radius of the external border of the structure)	required
int_radius		float (radius of the internal border of the structure)	required
depth		float (face width)	required
int_height		float (if you want a pinion with a structure thinner than the value of depth, the total height will be total_height = depth - 2 * int_height)	0
ratio		float (it is a number which is the proportional factor for an homothety of patterns)	1
patterns		int (number of patterns inside the structure)	5
ext_thickness	float	internal radius of the pattern	None
int_thickness	float	external radius of the pattern	None

Note

• For instance, if ratio is 1.5, the area of the pattern will be divided by 1.5.
• If r_int and r_ext are chosen, ratio won't impact these parameters

Source code in madcad/gear.py

def pattern_rect(
	ext_radius,
	int_radius,
	depth,
	int_height = 0,
	ratio = 1,
	patterns = 5,
	ext_thickness = None,
	int_thickness = None,
	**kwargs,
) -> Mesh:
	"""
	Generate two parts of the structure (the top and the bottom) with `patterns` distributed on the whole structure.
	All corners are straight. Check the function `pattern_rounded` to get rounded corners.

	Return a tuple (Web, Web, Mesh) where the first `Web` is the top of the structure,
	the second `Web` is the bottom of the structure and the last element `Mesh` is all side surfaces.

	Parameters:
		ext_radius: float (radius of the external border of the structure)
		int_radius: float (radius of the internal border of the structure)
		depth: float (face width)
		int_height: float (if you want a pinion with a structure thinner than the value of `depth`,
							the total height will be `total_height = depth - 2 * int_height`)
		ratio: float (it is a number which is the proportional factor for an homothety of patterns)
		patterns: int (number of patterns inside the structure)
		ext_thickness (float): internal radius of the pattern
		int_thickness (float): external radius of the pattern

	Note:
		- For instance, if `ratio` is 1.5, the area of the pattern will be divided by 1.5.
		- If `r_int` and `r_ext` are chosen, `ratio` won't impact these parameters
	"""
	return create_pattern_rect(ext_radius, int_radius, depth, int_height, ratio, patterns, ext_thickness, int_thickness, False)

pattern_rounded(ext_radius, int_radius, depth, int_height=0, ratio=1, patterns=5, ext_thickness=None, int_thickness=None, **kwargs)

Generate two parts of the structure (the top and the bottom) with patterns distributed on the whole structure. All corners are rounded. Check the function pattern_rect to get straight corners.

Return a tuple (Web, Web, Mesh) where the first Web is the top of the structure, the second Web is the bottom of the structure and the last element Mesh is all side surfaces.

Parameters:

Name	Type	Description	Default
ext_radius		float (radius of the external border of the structure)	required
int_radius		float (radius of the internal border of the structure)	required
depth		float (face width)	required
int_height		float (if you want a pinion with a structure thinner than the value of depth, the total height will be total_height = depth - 2 * int_height)	0
ratio		float (it is a number which is the proportional factor for an homothety of patterns)	1
patterns	int	int (number of patterns inside the structure)	5
ext_thickness	float	internal radius of the pattern	None
int_thickness	float	external radius of the pattern	None

Note

• For instance, if ratio is 1.5, the area of the pattern will be divided by 1.5.
• If r_int and r_ext are chosen, ratio won't impact these parameters

Source code in madcad/gear.py

def pattern_rounded(
	ext_radius,
	int_radius,
	depth,
	int_height = 0,
	ratio = 1,
	patterns: int = 5,
	ext_thickness = None,
	int_thickness = None,
	**kwargs,
) -> Mesh:
	"""
	Generate two parts of the structure (the top and the bottom) with `patterns` distributed on the whole structure.
	All corners are rounded. Check the function `pattern_rect` to get straight corners.

	Return a tuple (Web, Web, Mesh) where the first `Web` is the top of the structure,
	the second `Web` is the bottom of the structure and the last element `Mesh` is all side surfaces.

	Parameters:
		ext_radius: float (radius of the external border of the structure)
		int_radius: float (radius of the internal border of the structure)
		depth: float (face width)
		int_height: float (if you want a pinion with a structure thinner than the value of `depth`,
							the total height will be `total_height = depth - 2 * int_height`)
		ratio: float (it is a number which is the proportional factor for an homothety of patterns)
		patterns: int (number of patterns inside the structure)
		ext_thickness (float): internal radius of the pattern
		int_thickness (float): external radius of the pattern

	Note:
		- For instance, if `ratio` is 1.5, the area of the pattern will be divided by 1.5.
		- If `r_int` and `r_ext` are chosen, `ratio` won't impact these parameters
	"""
	return create_pattern_rect(ext_radius, int_radius, depth, int_height, ratio, patterns, ext_thickness, int_thickness, True)
