standard -- Common standard parametric parts

Module exposing many functions to create/visualize standard parts. Those are following the ISO (metric) specifications as often as possible.

Most parts are as easy to create as:

>>> nut(8)    # nut with nominal diameter 8mm
>>> screw(8, 16)   # screw with match diameter 8mm, and length 16mm

The parts usually have many optional parameters that default to usual recommended values. You can override this by setting the keyword arguments:

>>> screw(8, 16, head='button', drive='slot')

Numeric helpers

stfloor(x, precision=0.1)

Return a numeric value fitting x, with lower digits being the under closest digits from standard_digits

precision gives the relative tolerance interval for the returned number, so we are sure it lays in [x*(1-precision), x]

Source code in madcad/standard.py

def stfloor(x, precision=0.1):
	''' Return a numeric value fitting x, with lower digits being the under closest digits from `standard_digits`

		`precision` gives the relative tolerance interval for the returned number, so we are sure it lays in `[x*(1-precision), x]`
	'''
	if hasattr(x, '__getitem__'):
		return type(x)(stfloor(e)  for e in x)
	if not isfinite(x):
		return x
	if not x:
		return x
	s, x = sign(x), abs(x)

	base = 10
	magnitude = base **floor(log(x) / log(base))
	ratio = x / magnitude

	for j in range(2 + int(ceil(-log(precision) / log(base)))):
		for st in standard_digits:
			candidate = floor(ratio) + st
			if candidate > ratio + 2*NUMPREC:
				continue
			if ratio*(1-precision) + NUMPREC <= candidate:
				return candidate * magnitude * s
		magnitude /= base
		ratio *= base
	raise RuntimeError('failed to converge, this is a bug')

stceil(x, precision=0.1)

Return a numeric value fitting x, with lower digits being the above closest digits from standard_digits

precision gives the relative tolerance interval for the returned number, so we are sure it lays in [x, x*(1+precision)]

Source code in madcad/standard.py

def stceil(x, precision=0.1):
	''' Return a numeric value fitting x, with lower digits being the above closest digits from `standard_digits`

		`precision` gives the relative tolerance interval for the returned number, so we are sure it lays in `[x, x*(1+precision)]`
	'''
	if hasattr(x, '__getitem__'):
		return type(x)(stceil(e)  for e in x)
	if not isfinite(x):
		return x
	s, x = sign(x), abs(x)

	base = 10
	magnitude = base**ceil(log(x) / log(base))
	ratio = x / magnitude

	for j in range(2 + int(ceil(-log(precision) / log(base)))):
		for st in standard_digits:
			candidate = floor(ratio) + st
			if candidate < ratio - 2*NUMPREC:
				continue
			if ratio*(1+precision) + NUMPREC >= candidate:
				return candidate * magnitude * s
		magnitude /= base
		ratio *= base
	raise RuntimeError('failed to converge, this is a bug')

Screw stuff

nut(d, type='hex', detail=False)

Create a standard nut model using the given shape type

Parameters:

Name	Type	Description	Default
d		nominal diameter of the matching screw	required
type		the nut shape	'hex'
detail		if True, the thread surface will be generated, else it will only be a cylinder	False

If d alone is given, the other parameters default to the ISO specs: https://www.engineersedge.com/iso_flat_washer.htm

Currently only shape 'hex' is available.

Source code in madcad/standard.py

@cachefunc
def nut(d, type='hex', detail=False) -> Mesh:
	''' Create a standard nut model using the given shape type

	![nut](../screenshots/hexnut.png)

	Parameters:
		d:        nominal diameter of the matching screw
		type:     the nut shape
		detail:   if True, the thread surface will be generated, else it will only be a cylinder

	If `d` alone is given, the other parameters default to the ISO specs: https://www.engineersedge.com/iso_flat_washer.htm

	Currently only shape 'hex' is available.
	'''
	args = standard_hexnuts[bisect(standard_hexnuts, d, key=itemgetter(0))]
	if args[0] != d:
		raise ValueError('no standard nut for diameter {}'.format(d))
	return hexnut(*args)

screw(d, length, filet_length=None, head='SH', drive=None, detail=False)

Create a standard screw using the given drive and head shapes

Parameters:

Name	Type	Description	Default
d		nominal diameter of the screw	required
length		length from the screw head to the tip of the screw	required
filet_length		length of the filet on the screw (from the tip), defaults to length	None
head		name of the screw head shape	'SH'
drive		name of the screw drive shape	None
detail		if True, the thread surface will be generated, else it will only be a cylinder	False

It's also possible to specify head and drive at once, using their codenames:

    >>> screw(5, 16, head='SHT')   # socket head and torx drive

Available screw heads

• socket (default)
• button
• flat (aka. cone)

Available screw drives

• hex
• torx (not yet available)
• phillips (cross) (not yet available)
• slot

All possible shapes

• see wikipedia for the drive types
• see here for a guide of what to use
• see wikipedia for standard screw thread

Source code in madcad/standard.py

@cachefunc
def screw(d, length, filet_length=None, head='SH', drive=None, detail=False):
	''' Create a standard screw using the given drive and head shapes

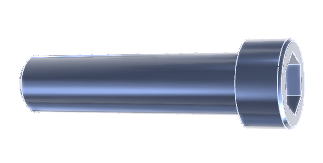

	![screw](../screenshots/screw.png)

	Parameters:
		d:             nominal diameter of the screw
		length:        length from the screw head to the tip of the screw
		filet_length:  length of the filet on the screw (from the tip), defaults to `length`

		head:          name of the screw head shape
		drive:			name of the screw drive shape
		detail:   if True, the thread surface will be generated, else it will only be a cylinder

	It's also possible to specify head and drive at once, using their codenames:

		>>> screw(5, 16, head='SHT')   # socket head and torx drive

	Available screw heads:
		* socket (default)
		* button
		* flat (aka. cone)

	Available screw drives:
		* hex
		* torx  *(not yet available)*
		* phillips (cross)  *(not yet available)*
		* slot

	All possible shapes:
		* see wikipedia for the [drive types](https://en.wikipedia.org/wiki/List_of_screw_drives)
		* see [here for a guide of what to use](https://www.homestratosphere.com/types-of-screws/)
		* see wikipedia for [standard screw thread](https://en.wikipedia.org/wiki/ISO_metric_screw_thread)


	'''
	if filet_length is None:	filet_length = length - 0.05*d
	elif length < filet_length:	raise ValueError('filet_length must be smaller than length')

	head, drive = screw_spec(head, drive)
	head = globals()['screwhead_'+head](d)
	if drive:
		drive = globals()['screwdrive_'+drive](d) .transform(boundingbox(head).max[2]*Z)
		head = intersection(head, drive)

	r = 0.5*d
	axis = Axis(O, Z, interval=(-length,r))
	top = head.box().min.z
	body = revolution(wire([
					vec3(r, 0, top),
					vec3(r, 0, min(top, -length+filet_length)),
					vec3(r, 0, -length+r*0.2),
					vec3(r*0.8, 0, -length),
					vec3(0, 0, -length),
					]) .segmented())
	screw = (body + head).finish().option(color=settings.colors['bolt'])
	return Solid(part=screw, axis=axis)

washer(d, e=None, h=None)

Create a standard washer.

Washers are useful to offset screws and avoid them to scratch the mount part

Parameters:

Name	Type	Description	Default
d		the nominal interior diameter (screw or anything else), the exact washer interior is slightly bigger	required
e		exterior diameter	None
h		height/thickness	None

If d alone is given, the other parameters default to the ISO specs: https://www.engineersedge.com/iso_flat_washer.htm

Source code in madcad/standard.py

@cachefunc
def washer(d, e=None, h=None) -> Mesh:
	''' Create a standard washer.

	![washer](../screenshots/washer.png)

	Washers are useful to offset screws and avoid them to scratch the mount part

	Parameters:
		d:        the nominal interior diameter (screw or anything else),
		           the exact washer interior is slightly bigger
		e:        exterior diameter
		h:        height/thickness

	If `d` alone is given, the other parameters default to the ISO specs: https://www.engineersedge.com/iso_flat_washer.htm
	'''
	if e is None and h is None:
		args = standard_washers[bisect(standard_washers, d, key=itemgetter(0))]
		if abs(args[0] - d)/d < 0.2:
			_, d, e, h = args
		else:
			raise ValueError('no standard nut for the given diameter')
	else:
		d *= 1.1
		if e is None:	e = d*2
		if h is None:	h = d*0.1

	return Solid(
				part=thicken(revolution(web([e/2*X, d/2*X])), h).option(color=settings.colors['bolt']),
				top=Axis(h*Z, Z, interval=(0,h)),
				bottom=Axis(O, -Z, interval=(0,h)),
				)

bolt(a, b, dscrew, washera=False, washerb=False, nutb=True)

convenient function to create a screw, nut and washers assembly

Parameters:

Name	Type	Description	Default
a	vec3	the screw placement	required
b	vec3	the nut placement	required
dscrew	float	the screw d parameter	required
washera		if True, place a washer between the screw head at a	False
washerb		if True, place a washer between the nut at b	False
butb		if True, place a nut at b	required

Source code in madcad/standard.py

def bolt(a: vec3, b: vec3, dscrew: float, washera=False, washerb=False, nutb=True) -> Solid:
	''' convenient function to create a screw, nut and washers assembly

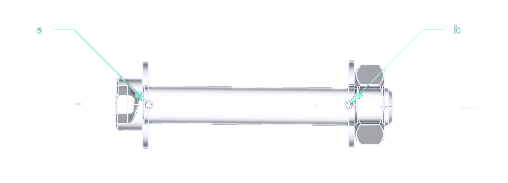

	![bolt](../screenshots/bolt.png)

	Parameters:
		a:  the screw placement
		b:  the nut placement
		dscrew:  the screw `d` parameter
		washera:  if True, place a washer between the screw head at `a`
		washerb:  if True, place a washer between the nut at `b`
		butb:    if True, place a nut at `b`
	'''
	dir = normalize(b-a)
	rwasher = washer(dscrew)
	thickness = rwasher['part'].box().size.z
	rscrew = screw(dscrew, stceil(distance(a,b) + 1.2*dscrew, precision=0.2))
	#rscrew['annotations'] = [
				#note_distance(O, -stceil(distance(a,b) + 1.2*dscrew)*Z, offset=2*dscrew*X),
				#note_radius(rscrew['part'].group(0)),
				#]
	result = Solid(
			a = a,
			b = b,
			dscrew = dscrew,
			screw = rscrew.place((Revolute, rscrew['axis'], Axis(a-thickness*dir*int(washera), -dir))),
			)
	if washera:
		result['washera'] = rwasher.place((Revolute, rwasher['top'], Axis(a, dir)))
	if washerb:
		result['washerb'] = rwasher.place((Revolute, rwasher['top'], Axis(b, -dir)))
	if nutb:
		rnut = nut(dscrew)
		result['nut'] = rnut.place((Revolute, rnut['top'], Axis(b+thickness*dir*int(washerb), -dir)))
	return result

Coilsprings

coilspring_compression(length, d=None, thickness=None, solid=True)

Return a Mesh model of a croilspring meant for use in compression

Parameters:

Name	Type	Description	Default
length		the distance between its two ends	required
d		the exterior diameter (the coilspring can fit in a cylinder of that diameter)	None
thickness		the wire diameter of the spring (useless if solid is disabled)	None
solid		disable it to get only the tube path of the coil, and have a Wire as return value	True

Source code in madcad/standard.py

@cachefunc
def coilspring_compression(length, d=None, thickness=None, solid=True):
	''' Return a Mesh model of a croilspring meant for use in compression

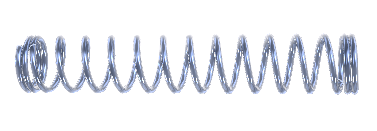

	![coilspring_compression](../screenshots/coilspring-compression.png)

	Parameters:
		length:     the distance between its two ends
		d:          the exterior diameter (the coilspring can fit in a cylinder of that diameter)
		thickness:  the wire diameter of the spring (useless if solid is disabled)
		solid:      disable it to get only the tube path of the coil, and have a `Wire` as return value
	'''
	if not d:			d = length*0.2
	if not thickness:	thickness = d*0.1
	r = d/2 - thickness		# coil radius
	e = r					# coil step
	div = settings.curve_resolution(d*pi, 2*pi)
	step = 2*pi/(div+1)

	t = 0

	t0, z0 = t, -0.5*length
	top = []
	for t in linrange(t0, t0 + 4*pi, step):
		top.append( vec3(r*cos(t), r*sin(t), z0 + (t-t0)/(2*pi) * thickness) )

	t0, z0 = t, -0.5*length + 2*thickness
	coil = []
	for t in linrange(t0, t0 + 2*pi * (length-4*thickness) / e, step):
		coil.append( vec3(r*cos(t), r*sin(t), z0 + (t-t0)/(2*pi) * e) )

	t0, z0 = t, 0.5*length - 2*thickness
	bot = []
	for t in linrange(t0, t0 + 4*pi, step):
		bot.append( vec3(r*cos(t), r*sin(t), z0 + (t-t0)/(2*pi) * thickness) )

	path = Wire(top) + Wire(coil).qualify('spring') + Wire(bot)

	if not solid:
		return path

	return Solid(
			part=tube(
				fill(Circle(
					(path[0],Y),
					thickness/2,
					resolution=('div',6)
					)) .flip(),
				path,
				),
			axis=Axis(O, Z, interval=(-length/2, length/2)),
			top=0.5*length*Z,
			bottom=-0.5*length*Z,
			)

coilspring_tension(length, d=None, thickness=None, solid=True)

Return a Mesh model of a croilspring meant for use in tension

Parameters:

Name	Type	Description	Default
length		the distance between its two hooks	required
d		the exterior diameter (the coilspring can fit in a cylinder of that diameter)	None
thickness		the wire diameter of the spring (useless if solid is disabled)	None
solid		disable it to get only the tube path of the coil, and have a Wire as return value	True

Source code in madcad/standard.py

@cachefunc
def coilspring_tension(length, d=None, thickness=None, solid=True):
	''' Return a Mesh model of a croilspring meant for use in tension

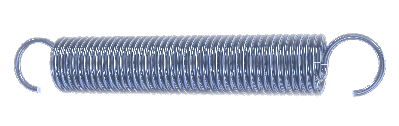

	![coilspring_tension](../screenshots/coilspring-tension.png)

	Parameters:
		length:     the distance between its two hooks
		d:          the exterior diameter (the coilspring can fit in a cylinder of that diameter)
		thickness:  the wire diameter of the spring (useless if solid is disabled)
		solid:      disable it to get only the tube path of the coil, and have a `Wire` as return value
	'''
	if not d:			d = length*0.2
	if not thickness:	thickness = d*0.1
	r = d/2 - thickness		# coil radius
	e = r					# coil step

	# separate the coilspring in 3 parts:  the coil and the 2 hooks at both ides
	spring_length = length - 2*r
	ncoil = floor(spring_length / thickness) - 0.5
	hold = 0.5*length - r

	# create coil
	div = settings.curve_resolution(d*pi, 2*pi)
	step = 2*pi/(div+1)
	z0 = -0.5 * ncoil * thickness
	coil = Wire([	vec3(r*cos(t), r*sin(t), z0 + t/(2*pi) * thickness)
					for t in linrange(0, 2*pi * ncoil, step) ]) .qualify('spring')
	# create path with hooks
	path = wire([
				ArcCentered((-0.5*length*Z, X), vec3(0, -r, -0.5*length), -hold*Z),
				ArcThrough(-hold*Z, (-hold*Z + coil[0])*0.5 - 0.5*r*Y, coil[0]),
				coil,
				ArcThrough(coil[-1], (hold*Z + coil[-1])*0.5 - 0.5*r*Y, hold*Z),
				ArcCentered((0.5*length*Z, X), hold*Z, vec3(0, -r, 0.5*length)),
				])
	if not solid:
		return path

	return Solid(
			part=tube(
				fill(Circle(
					(path[0],Z),
					thickness/2,
					resolution=('div',6)
					)),
				path,
				),
			axis=Axis(O,Z, interval=(-length/2, length/2)),
			top=0.5*length*Z,
			bottom=-0.5*length*Z,
			)

coilspring_torsion(arm, angle=radians(45), d=None, length=None, thickness=None, hook=None, solid=True)

Return a Mesh model of a croilspring meant for use in torsion

Parameters:

Name	Type	Description	Default
arm		the arms length from the coil axis	required
length		the coil length (and distance between its hooks)	None
d		the exterior diameter (the coilspring can fit in a cylinder of that diameter)	None
thickness		the wire diameter of the spring (useless if solid is disabled)	None
hook		the length of arm hooks (negative for hooks toward the interior)	None
solid		disable it to get only the tube path of the coil, and have a Wire as return value	True

Source code in madcad/standard.py

@cachefunc
def coilspring_torsion(arm,
			angle=radians(45),
			d=None,
			length=None,
			thickness=None,
			hook=None,
			solid=True) -> Solid:
	''' Return a Mesh model of a croilspring meant for use in torsion

	![coilspring_torsion](../screenshots/coilspring-torsion.png)

	Parameters:
		arm:        the arms length from the coil axis
		length:     the coil length (and distance between its hooks)
		d:          the exterior diameter (the coilspring can fit in a cylinder of that diameter)
		thickness:  the wire diameter of the spring (useless if solid is disabled)
		hook:       the length of arm hooks (negative for hooks toward the interior)
		solid:      disable it to get only the tube path of the coil, and have a `Wire` as return value
	'''
	if not length:		length = arm*0.5
	if not d:			d = arm
	if not thickness:	thickness = d*0.1
	if not hook:		hook = -length
	r = d/2 - thickness		# coil radius
	e = r					# coil step
	angle = pi - angle

	# separate the coilspring in 3 parts:  the coil and the 2 hooks at both ides
	ncoil = ceil(length / thickness) + angle/(2*pi)

	# create coil
	div = settings.curve_resolution(d*pi, 2*pi)
	step = 2*pi/(div+1)
	z0 = -0.5 * ncoil * thickness
	coil = Wire([	vec3(-r*sin(t), r*cos(t), z0 + t/(2*pi) * thickness)
					for t in linrange(0, 2*pi * ncoil, step) ]) .qualify('spring')

	# create hooks
	c = thickness * sign(hook)
	if abs(c) > abs(hook):
		hook = c
	top = Wire([
			vec3(arm, 0, hook),
			vec3(arm, 0, c),
			vec3(arm-abs(c), 0, 0),
			vec3(0),
			]) .transform(coil[0])
	bot = (top
			.flip()
			.transform(scaledir(Z,-1)*scaledir(X,-1))
			.transform(angleAxis(angle, Z))
			)

	# create path
	path = top + coil + bot
	path.mergeclose()

	if not solid:
		return path

	return Solid(
			part=tube(
				fill(Circle(
					(path[0], normalize(path[0]-path[1])),
					thickness/2,
					resolution=('div',6),
					)),
				path,
				),
			axis=Axis(O,Z, interval=(-length/2, length/2)),
			top=path[0],
			bottom=path[-1],
			)

Bearings

bearing(dint, dext=None, h=None, circulating='ball', contact=0, hint=None, hext=None, sealing=False, detail=False)

Circulating bearings rely on rolling elements to avoid friction and widen the part life.

Its friction depends on the rotation speed but not on the current load.

See bearing specs at https://koyo.jtekt.co.jp/en/support/bearing-knowledge/

Parameters:

Name	Type	Description	Default
dint		interior bore diameter	required
dext		exterior ring diameter	None
h		total height of the bearing	None
hint		height of the interior ring. Only for angled roller bearings	None
hext		height of the exterior ring. Only for angled roller bearings	None
circulating		The type of circulating element in the bearing ball roller	'ball'
contact		Contact angle (aka pressure angle). It decided what directions of force the bearing can sustain. 0 for radial bearing pi/2 for thrust (axial) bearings 0 < contact < pi/2 for conic bearings	0
sealing		True if the bearing has a sealing side. Only for balls bearings with contact = 0	False
detail		If True, the returned model will have the circulating elements and cage, if False the returned element is just a bounding representation	False

Source code in madcad/standard.py

@cachefunc
def bearing(dint, dext=None, h=None,
			circulating='ball',
			contact=0,
			hint=None, hext=None,
			sealing=False,
			detail=False) -> Solid:
	'''
	Circulating bearings rely on rolling elements to avoid friction and widen the part life.

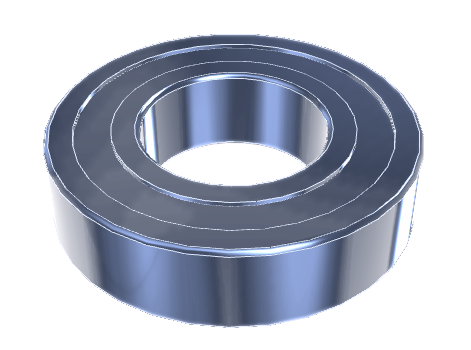

	![bearing](../screenshots/bearing-bounded.png)

	Its friction depends on the rotation speed but not on the current load.

	See bearing specs at https://koyo.jtekt.co.jp/en/support/bearing-knowledge/

	Parameters:
		dint:	interior bore diameter
		dext:  exterior ring diameter
		h:     total height of the bearing

		hint:  height of the interior ring. Only for angled roller bearings
		hext:  height of the exterior ring. Only for angled roller bearings

		circulating:

			The type of circulating element in the bearing

			- ball
			- roller

		contact:

			Contact angle (aka pressure angle).
			It decided what directions of force the bearing can sustain.

			- `0` for radial bearing
			- `pi/2`  for thrust (axial) bearings
			- `0 < contact < pi/2` for conic bearings

		sealing:  True if the bearing has a sealing side. Only for balls bearings with `contact = 0`

		detail:   If True, the returned model will have the circulating elements and cage, if False the returned element is just a bounding representation
	'''
	if isinstance(dint, str):
		dint, dext, h = bearing_spec(dint)
	else:
		if not dext:	dext = 2*dint
		if not h:		h = 0.5*dint

	assert 0 < h <= dint < dext
	assert 0 <= contact

	if circulating == 'roller':
		if sealing:
			raise ValueError('sealing must be None for roller bearings')
		return bearing_roller(dint, dext, h, contact, hint, hext, detail)

	elif circulating == 'ball':
		if hint or hext:
			raise ValueError('hint and hext must be None for ball bearings')
		if abs(contact) < NUMPREC:
			return bearing_ball(dint, dext, h, sealing, detail)
		if abs(contact - 0.5*pi) < NUMPREC:
			if sealing:
				raise ValueError('sealing must be none for thrust bearings')
			return bearing_thrust(dint, dext, h, detail)
		else:
			raise ValueError('ball bearings must not be angled')

	else:
		raise ValueError('unknown circulating element {}'.format(repr(circulating)))

slidebearing(dint, h=None, thickness=None, shoulder=None, opened=False)

Slide bearings rely on gliding parts to ensure a good pivot. It's much cheaper than circulating bearings and much more compact. But needs lubricant and has a shorter life than circulating bearings. Its friction depends on the rotation speed and on the load.

Parameters:

Name	Type	Description	Default
dint		interior diameter	required
h		exterior height (under shoulder if there is)	None
thickness		shell thickness, can be automatically determined	None
shoulder		distance from bore to shoulder tip, put 0 to disable	None
opened		enable to have a slight breach that allows a better fitting to the placement hole	False

Source code in madcad/standard.py

@cachefunc
def slidebearing(dint, h=None, thickness=None, shoulder=None, opened=False) -> Solid:
	'''
	Slide bearings rely on gliding parts to ensure a good pivot. It's much cheaper than circulating bearings and much more compact. But needs lubricant and has a shorter life than circulating bearings.
	Its friction depends on the rotation speed and on the load.

	Parameters:
		dint:       interior diameter
		h:          exterior height (under shoulder if there is)
		thickness:  shell thickness, can be automatically determined
		shoulder:   distance from bore to shoulder tip, put 0 to disable
		opened:     enable to have a slight breach that allows a better fitting to the placement hole
	'''
	if h is None:			h = 1.2*dint
	if thickness is None:	thickness = 0.05*dint
	rint = dint/2

	profile = Wire([
				vec3(rint,0,-h),
				vec3(rint,0, 0),
				])
	if shoulder:
		profile += Wire([ vec3(rint+shoulder, 0, 0) ])
		profile = profile.segmented()
		filet(profile, [1], radius=1.5*thickness, resolution=('div',2))

	axis = Axis(O,Z, interval=(-h,0))
	shape = revolution(profile, axis, 1.98*pi if opened else 2*pi)

	part = thicken(shape, thickness) .option(color=settings.colors['bearing'])
	line = (  select(part, vec3(-rint,0,-h), stopangle(pi/2))
			+ select(part, vec3(dint,dint,-h), stopangle(pi/2))
			)
	if not shoulder:
		line += (  select(part, vec3(-rint,0,0), stopangle(pi/2))
				 + select(part, vec3(dint,dint,0), stopangle(pi/2))
				)

	chamfer(part, line, width=0.5*thickness)
	return Solid(part=part, axis=axis)

Standard sections for extrusion

section_tslot(size=1, slot=None, thickness=None, depth=None)

Standard T-Slot section. That section features slots on each side to put nuts at any position.

Source code in madcad/standard.py

def section_tslot(size=1, slot=None, thickness=None, depth=None) -> Web:
	''' Standard T-Slot section. That section features slots on each side to put nuts at any position.

		![section_tslot](../screenshots/section_tslot.png)
	'''
	if slot is None:	slot = 0.3*size
	if thickness is None:	thickness = 0.08*size
	if depth is None:	depth = 0.2*size
	b = depth-thickness

	center = Circle((O,-Z), size/2-depth-2*thickness)
	base = wire([
		vec3(size/2, size/2, 0),
		vec3(size/2, slot/2+thickness, 0),
		vec3(size/2-thickness, slot/2, 0),
		vec3(size/2-thickness, slot/2+b, 0),
		vec3(size/2-thickness-depth+b, slot/2+b, 0),
		vec3(size/2-thickness-depth, slot/2, 0),
		]) .flip()
	base = (base + base.transform(scaledir(normalize(vec3(1,-1,0)), -1)) .flip() ).segmented()
	base = base + base.transform(scaledir(X, -1)) .flip()
	base = base + base.transform(scaledir(Y, -1)) .flip()
	section = web([
		center,
		base.close().segmented(),
		])
	filet(section, section.frontiers(5,7, 41,43, 31,29, 17,19), radius=thickness/2, resolution=('div',2))

	#notes = [
		#note_distance(base.points[2], base.points[5], offset=-c/2*Y),
		#note_distance(base.points[1], base.points[2], offset=-c/2*Y, project=X),
		#note_distance(base.points[2], base.points[2]*vec3(1,-1,1), offset=s*X),
		#note_distance(base.points[0], base.points[0]*vec3(1,-1,1), offset=2*s*X),
		#]

	return section.finish()

section_s(height=1, width=None, flange=None, thickness=None)

Standard S (short flange) section. Very efficient to support flexion efforts.

Source code in madcad/standard.py

def section_s(height=1, width=None, flange=None, thickness=None) -> Web:
	''' Standard S (short flange) section. Very efficient to support flexion efforts.

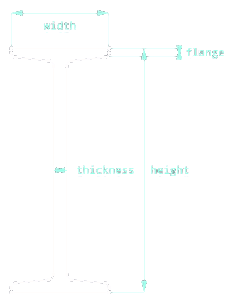

		![section_s](../screenshots/section_s.png)
	'''
	if width is None:	width = 0.4 * height
	if flange is None:	flange = 0.036 * height
	if thickness is None:	thickness = 0.054 * height
	assert width > 3*thickness+2*flange and height > 2*flange+2*thickness

	base = wire([
		vec3(width/2, height/2, 0),
		vec3(width/2, height/2-flange, 0),
		vec3(thickness/2, height/2-flange-0.1*(width/2-thickness/2), 0),
		]) .flip()
	base = base + base.transform(scaledir(X,-1)).flip()
	base = base + base.transform(scaledir(Y,-1)).flip()
	section = web(base.close().segmented())
	filet(section, section.frontiers(0,5,10,4,6,11), radius=thickness*0.4, resolution=('div',2))
	filet(section, section.frontiers(1,0,4,3,6,7,10,9), radius=flange, resolution=('div',2))

	#notes = [
		#note_distance(base.points[0], base.points[0]*vec3(1,-1,1), offset=2*flange*X),
		#note_distance(base.points[0], base.points[1], offset=flange*X),
		#note_distance(base.points[0], base.points[0]*vec3(-1,1,1), offset=flange*Y),
		#note_distance(thickness/2*X, -thickness/2*X),
		#]

	return section.finish()

section_w(height=1, width=None, flange=None, thickness=None)

Standard W (wide flange) section. It is slightly different than a S section in that the flanges are straight and are usally wider.

Source code in madcad/standard.py

def section_w(height=1, width=None, flange=None, thickness=None) -> Web:
	''' Standard W (wide flange) section. It is slightly different than a S section in that the flanges are straight and are usally wider.

		![section_w](../screenshots/section_w.png)
	'''
	if width is None:	width = 0.6 * height
	if flange is None:	flange = 0.036 * height
	if thickness is None:	thickness = 0.054 * height
	assert width > 3*thickness+2*flange and height > 2*flange+2*thickness

	base = wire([
		vec3(width/2, height/2, 0),
		vec3(width/2, height/2-flange, 0),
		vec3(thickness/2, height/2-flange, 0),
		]) .flip()
	base = (base + base.transform(scaledir(X,-1)).flip() ).segmented()
	base = base + base.transform(scaledir(Y,-1)).flip()
	base.close()
	section = web(base)
	filet(section, section.frontiers(0,5,10,4,6,11), radius=thickness*0.4, resolution=('div',2))
	filet(section, section.frontiers(1,0,4,3,6,7,10,9), radius=flange*0.5, resolution=('div',2))
	return section.finish()

section_l(a=1, b=None, thickness=None)

Standard L section

Source code in madcad/standard.py

def section_l(a=1, b=None, thickness=None) -> Wire:
	''' Standard L section

		![section_l](../screenshots/section_l.png)
	'''
	if b is None:	b = a
	if thickness is None:	thickness = 0.05*max(a,b)
	assert a > 3*thickness and b > 3*thickness

	section = wire([
		vec3(0, 0, 0),
		vec3(0, a, 0),
		vec3(thickness, a, 0),
		vec3(thickness, thickness, 0),
		vec3(b, thickness, 0),
		vec3(b, 0, 0),
		]) .close() .segmented() .flip()

	filet(section, [2,3,4], radius=thickness*0.8, resolution=('div',2))
	return section.finish()

section_c(height=1, width=None, thickness=None)

Standard C section

Source code in madcad/standard.py

def section_c(height=1, width=None, thickness=None) -> Web:
	''' Standard C section

		![section_c](../screenshots/section_c.png)
	'''
	if width is None:	width = 0.6*height
	if thickness is None:	thickness = 0.05*height
	assert width > 3*thickness

	base = wire([
		vec3(0, height/2, 0),
		vec3(width, height/2, 0),
		vec3(width, height/2-thickness, 0),
		vec3(thickness, height/2-thickness, 0),
		]) .flip()
	base = base + base.transform(scaledir(Y,-1)).flip()
	section = web(base.close().segmented())

	filet(section, section.frontiers(0,1,5,7,6), radius=0.8*thickness, resolution=('div',2))
	return section.finish()

Convenient shapes to integrate standard parts

screw_slot(axis, dscrew, rslot=None, hole=0.0, screw=0.0, expand=True, flat=False)

slot shape for a screw

the result can then be used in a boolean operation to reserve set a screw place in an arbitrary shape

Parameters:

Name	Type	Description	Default
axis	Axis	the screw axis placement, z toward the screw head (part exterior)	required
dscrew	float	the screw diameter	required
rslot		the screw head slot radius	None
hole		if True, enables a cylindric hole for screw body of length dscrew*3 if float, it is the screw hole length	0.0
screw		if non zero, this is the length of a thiner portion of hole after hole, the diameter is adjusted so that the screw can screw in	0.0
expand		if True, enables slots sides if float, it is the slot sides height	True
flat		if True, the slot will be conic do receive a flat head screw	False

Source code in madcad/standard.py

def screw_slot(axis: Axis, dscrew: float, rslot=None, hole=0., screw=0., expand=True, flat=False) -> Mesh:
	''' slot shape for a screw

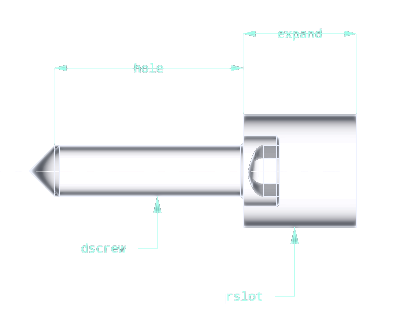

	![screw_slot](../screenshots/screw_slot.png)

	the result can then be used in a boolean operation to reserve set a screw place in an arbitrary shape

	Parameters:
		axis:  the screw axis placement, z toward the screw head (part exterior)
		dscrew: the screw diameter
		rslot:  the screw head slot radius
		hole:
			- if `True`, enables a cylindric hole for screw body of length `dscrew*3`
			- if `float`, it is the screw hole length
		screw:  if non zero, this is the length of a thiner portion of hole after `hole`, the diameter is adjusted so that the screw can screw in
		expand:
			- if `True`, enables slots sides
			- if `float`, it is the slot sides height
		flat:   if True, the slot will be conic do receive a flat head screw
	'''
	if not rslot:	rslot = 1.1*dscrew
	o = axis[0]
	x,y,z = dirbase(axis[1])

	profile = []
	if expand:
		if isinstance(expand, bool):		expand = 2*rslot
		profile.append(o + rslot*x + expand*z)
	profile.append(o + rslot*x)
	if hole or screw:
		if flat:
			profile.append(o + 0.5*dscrew*(x-z) - (rslot-dscrew)*z)
			hole = max(hole, dot(o-profile[-1], z))
		else:
			profile.append(o + 0.5*dscrew*x)
		profile.append(o + 0.5*dscrew*x - hole*z)
		profile.append(o + 0.4*dscrew*x - min(hole+0.1*dscrew, hole+screw)*z)
		profile.append(o + 0.4*dscrew*x - (hole+screw)*z)
		profile.append(o - (hole+screw+0.4*dscrew)*z)
	else:
		profile.append(o)
	return revolution(wire(profile).segmented(), Axis(o,-z)).finish()

bolt_slot(a, b, dscrew, rslot=None, hole=True, expanda=True, expandb=True)

bolt shape for a screw

musch like screw_slot() but with two endings

Parameters:

Name	Type	Description	Default
a	vec3	position of screw head	required
b	vec3	position of nut	required
dscrew	float	the screw diameter	required
rslot		the screw head slot radius	None
hole		enabled the cylindric hole between the head and nut slots	True
expanda, expandb		if True, enables slot sides on tip a or b if float, it is the slot side height	required

Examples:

>>> a, b = vec3(...), vec3(...)
>>> bolts = bolt(a, b, 3)
>>> part_hole = bolt_slot(a, b, 3)

Source code in madcad/standard.py

def bolt_slot(a: vec3, b: vec3, dscrew: float, rslot=None, hole=True, expanda=True, expandb=True) -> Mesh:
	''' bolt shape for a screw

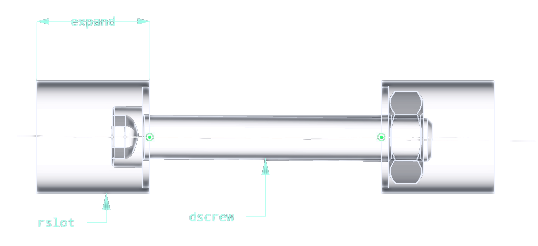

	![bolt_slot](../screenshots/bolt_slot.png)

	musch like `screw_slot()` but with two endings

	Parameters:
		a:  position of screw head
		b:  position of nut
		dscrew:  the screw diameter
		rslot:   the screw head slot radius
		hole:    enabled the cylindric hole between the head and nut slots
		expanda, expandb:
			- if `True`, enables slot sides on tip `a` or `b`
			- if `float`, it is the slot side height

	Examples:
		>>> a, b = vec3(...), vec3(...)
		>>> bolts = bolt(a, b, 3)
		>>> part_hole = bolt_slot(a, b, 3)
	'''
	if not rslot:	rslot = 1.3*dscrew
	x,y,z = dirbase(normalize(a-b))

	def one_slot(o,x,z, expand):
		profile = []
		if expand:
			if isinstance(expand, bool):		expand = 2*rslot
			profile.append(o + rslot*x + expand*z)
		profile.append(o + rslot*x)
		if hole:
			profile.append(o + 0.5*dscrew*x)
		else:
			profile.append(o)
		return wire(profile).segmented()

	return revolution(
			one_slot(a,x,z, expanda) + one_slot(b,x,-z, expandb).flip(),
			Axis(a,-z),
			).finish()

bearing_slot_exterior(axis, dext, height, shouldering=True, circlip=False, evade=True, expand=True)

slot for a bearing exterior ring, such as returned by bearing()

Parameters:

Name	Type	Description	Default
axis	Axis	bearing axis placement	required
dext	float	bearing dext parameter	required
height	float	bearing h parameter	required
shouldering		generate a shoulder to support the top side of the bearing's exterior ring	True
circlip		enable a slot for a circlip to support the bottom side of the bearing's exterior ring	False
evade		set expansion to evasive rather that straight	True
expand		expand the slot with evasive or straight surfaces to ease itnersection with other meshes True enables expansion with a default length float set the expansion distance	True

Source code in madcad/standard.py

def bearing_slot_exterior(axis: Axis, dext: float, height: float, shouldering=True, circlip=False, evade=True, expand=True):
	''' slot for a bearing exterior ring, such as returned by `bearing()`

	Parameters:
		axis:  bearing axis placement
		dext:  bearing `dext` parameter
		height: bearing `h` parameter
		shouldering:  generate a shoulder to support the top side of the bearing's exterior ring
		circlip: enable a slot for a circlip to support the bottom side of the bearing's exterior ring
		evade:  set expansion to evasive rather that straight
		expand:

			expand the slot with evasive or straight surfaces to ease itnersection with other meshes

			- `True` enables expansion with a default length
			- `float` set the expansion distance
	'''
	rext = dext/2
	tol = stceil(rext*1e-2)
	profile = [
		rext*X + 0.5*height*Z,
		rext*X - 0.5*height*Z,
		]
	if shouldering:
		profile.insert(0, profile[0] - 0.17*rext*X)
	if circlip:
		circlip_height = stceil(0.1*rext)
		circlip_depth = stceil(1.05*rext) - rext
		profile[-1:] = accumulate([
			rext*X - (0.5*height + tol)*Z,
			circlip_depth*X,
			-circlip_height*Z,
			-circlip_depth*X,
			-0.5*circlip_height*Z,
			])
	if expand == True:	expand = 0.4*rext
	if evade:
		if shouldering:
			profile.insert(0, profile[0] + 0.1*rext*Z)
		profile.append(profile[-1] + expand*(X-Z))
		profile.insert(0, profile[0] + expand*(X+Z))
	elif expand:
		profile.extend([
			profile[-1] - 0.05*rext*(Z-X),
			profile[-1] - 0.05*rext*(Z-X) - expand*Z,
			])
		profile.insert(0, profile[0] + expand*Z)
	return revolution(wire(profile).segmented(), Axis(O,-Z)) .transform(translate(axis[0]) * mat4(quat(Z, axis[1])))

bearing_slot_interior(axis, dint, height, shouldering=True, circlip=False, evade=True, expand=True)

slot for a bearing interior ring, such as returned by bearing()

Parameters:

Name	Type	Description	Default
axis	Axis	bearing axis placement	required
dint	float	bearing dint parameter	required
height	float	bearing h parameter	required
shouldering		generate a shoulder to support the top side of the bearing's interior ring	True
circlip		generate a slot for a circlip to support the bottom side of the bearing's interior ring	False
evade		set expansion to evasive rather that straight	True
expand		expand the slot with evasive or straight surfaces to ease itnersection with other meshes True enables expansion with a default length float set the expansion distance	True

Source code in madcad/standard.py

def bearing_slot_interior(axis: Axis, dint: float, height: float, shouldering=True, circlip=False, evade=True, expand=True) -> Mesh:
	''' slot for a bearing interior ring, such as returned by `bearing()`

	Parameters:
		axis:  bearing axis placement
		dint:  bearing `dint` parameter
		height:  bearing `h` parameter
		shouldering:  generate a shoulder to support the top side of the bearing's interior ring
		circlip:  generate a slot for a circlip to support the bottom side of the bearing's interior ring
		evade:  set expansion to evasive rather that straight
		expand:

			expand the slot with evasive or straight surfaces to ease itnersection with other meshes

			- `True` enables expansion with a default length
			- `float` set the expansion distance
	'''
	rint = dint/2
	tol = stceil(rint*2e-2)
	profile = [
		rint*X + 0.5*height*Z,
		rint*X - 0.5*height*Z,
		]
	if shouldering:
		profile.insert(0, profile[0] + 0.36*rint*X)
	if circlip:
		circlip_height = stceil(0.2*rint)
		circlip_depth = rint - stceil(0.8*rint)
		profile[-1:] = accumulate([
			rint*X - (0.5*height + tol)*Z,
			-circlip_depth*X,
			-circlip_height*Z,
			circlip_depth*X,
			-0.5*circlip_height*Z,
			])
	if expand == True:	expand = 0.8*rint
	if evade:
		if shouldering:
			profile.insert(0, profile[0] + 0.1*rint*Z)
		profile.append(profile[-1] - expand*(X+Z))
		profile.insert(0, profile[0] - expand*(X-Z))
	elif expand:
		profile.extend([
			profile[-1] - 0.1*rint*(Z+X),
			profile[-1] - 0.1*rint*(Z+X) - expand*Z,
			])
		profile.insert(0, profile[0] + expand*Z)
	return revolution(wire(profile).segmented(), Axis(O,Z)) .transform(translate(axis[0]) * mat4(quat(Z, axis[1])))

circular_screwing(axis, radius, height, dscrew, diameters=1, div=8, hold=0)

holes and bolts to screw a circular perimeter

Parameters:

Name	Type	Description	Default
axis		placement of circle around which the screws are placed	required
radius		radius of the perimeter on which to put the screws	required
height		bolts length	required
dscrew		diameter of the biggest screws	required
diameters	int	each biggest screw is followed by this number-1 of additional smaller diameters	1
div	int	number of biggest screws distributed uniformly on the perimeter	8
hold	float	if non zero, holding screws of the given length are added to help the assembly. if True, the holding screws length is automatically determined.	0

Return: a tuple (holes:Mesh, bolts:list) where the bolts is a list of Solid

Source code in madcad/standard.py

def circular_screwing(axis, radius, height, dscrew, diameters:int=1, div:int=8, hold:float=0) -> '(Mesh, list)':
	''' holes and bolts to screw a circular perimeter

	Parameters:
		axis:  placement of circle around which the screws are placed
		radius: radius of the perimeter on which to put the screws
		height: bolts length
		dscrew: diameter of the biggest screws
		diameters: each biggest screw is followed by this number-1 of additional smaller diameters
		div: number of biggest screws distributed uniformly on the perimeter
		hold:
			if non zero, holding screws of the given length are added to help the assembly.
			if True, the holding screws length is automatically determined.

	Return: a tuple (holes:Mesh, bolts:list) where the bolts is a list of `Solid`
	'''
	holes = Mesh()
	bolts = []
	x,y,z = dirbase(axis.direction)
	a = axis.origin + radius*x
	b = axis.origin + radius*x + height*z
	gap = 0.1*dscrew*z
	enlarge = 1.05
	bolts.append(bolt(a, b, dscrew))
	for i in range(diameters):
		holes += cylinder(a-gap, b+gap, enlarge*stfloor(0.8**i * dscrew)/2) .transform(rotatearound(i*1.4*dscrew/radius, axis))
	holes = repeataround(holes, 8, axis).flip()
	if hold is True:
		hole = 1.5*dscrew
	if hold:
		angle = 1.7*dscrew/radius
		holes += repeataround(screw_slot(Axis(a+gap,-z), dscrew,
					screw=height-hold,
					hole=hold,
					flat=True), 2) .transform(rotatearound(-angle, axis))
		bolts.append(screw(dscrew, height, head='flat')
			.place((Revolute, Axis(O,Z), Axis(a,-z)))
			.transform(rotatearound(-angle, axis)))
		bolts.append(screw(dscrew, height, head='flat')
			.place((Revolute, Axis(O,Z), Axis(a,-z)))
			.transform(rotatearound(pi-angle, axis)))
	return holes, bolts

grooves_profile(radius, repetitions=16, alignment=0.5, angle=radians(40))

Coupling grooves profile

• The size of grooves depend on the pressure angle and the number of grooves

Parameters:

Name	Type	Description	Default
radius		the radius around which the grooves are placed	required
repetitions	int	the number of grooves to put on the circle perimeter	16
alignemnt		fraction of the grooves height - exterior grooves usually have alignment=1 - interior grooves usually have alignemnt=0	required
angle		pressure angle of the grooves	radians(40)

Source code in madcad/standard.py

def grooves_profile(radius, repetitions:int=16, alignment=0.5, angle=radians(40)) -> Wire:
	''' Coupling grooves profile

	- The size of grooves depend on the pressure angle and the number of grooves

	Parameters:
		radius: the radius around which the grooves are placed
		repetitions: the number of grooves to put on the circle perimeter
		alignemnt: fraction of the grooves height
			- exterior grooves usually have alignment=1
			- interior grooves usually have alignemnt=0
		angle: pressure angle of the grooves
	'''
	h = radius/repetitions / tan(angle)
	def profile(t, min=-1, max=1):
		return (radius+(0.5-alignment)*h+h*sin(repetitions*t)) * vec3(cos(t), sin(t), 0)
	return wire([ profile(t, -1, 0.7)
		for t in linrange(0, 2*pi, div=12*repetitions, end=False) ]).close()

grooves(radius, height, repetitions=16, alignment=0.5, angle=radians(40))

Coupling grooves surface

• The bottom and top bevels direction depend on the alignment
• The size of grooves depend on the pressure angle and the number of grooves

Parameters:

Name	Type	Description	Default
radius		the radius around which the grooves are placed	required
height		the length of the grooves, including transition bevels	required
repetitions	int	the number of grooves to put on the circle perimeter	16
alignemnt		fraction of the grooves height - exterior grooves usually have alignment=1 - interior grooves usually have alignemnt=0	required
angle		pressure angle of the grooves	radians(40)

Source code in madcad/standard.py

def grooves(radius, height, repetitions:int=16, alignment=0.5, angle=radians(40)) -> Mesh:
	''' Coupling grooves surface

	- The bottom and top bevels direction depend on the alignment
	- The size of grooves depend on the pressure angle and the number of grooves

	Parameters:
		radius: the radius around which the grooves are placed
		height: the length of the grooves, including transition bevels
		repetitions: the number of grooves to put on the circle perimeter
		alignemnt: fraction of the grooves height
			- exterior grooves usually have alignment=1
			- interior grooves usually have alignemnt=0
		angle: pressure angle of the grooves
	'''
	h = radius/repetitions / tan(angle)
	if alignment > 0.5:    s = 1+h/radius
	else:                  s = 1-h/radius
	return extrans(grooves_profile(radius, repetitions, alignment, angle), [
				scale(vec3(s)),
				translate(h*Z),
				translate((height-h)*Z),
				translate(height*Z) * scale(vec3(s)),
				])

Kinematics

scara(backarm, forearm)

kinematic of a classical scara robot arm

Source code in madcad/standard.py

def scara(backarm:float, forearm:float) -> Kinematic:
	'''
	kinematic of a classical *scara* robot arm

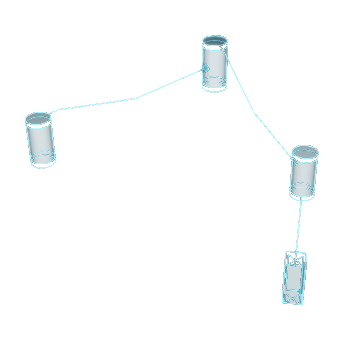

	![scara](../screenshots/standard-scara.png)
	'''
	return Chain([
		Revolute(('base',1), Axis(O,Z)),
		Revolute((1,2), Axis(backarm*X,Z), Axis(O,Z)),
		Revolute((2,3), Axis(forearm*X,Z), Axis(O,Z)),
		Prismatic((3,'tool'), Axis(-forearm*0.5*Z,Z)),
		])

serial6(backarm, forearm)

kinematic of a classical serial robot arm with 6 degrees of freedom

Parameters:

Name	Type	Description	Default
backarm	float	backarm length	required
forearm	float	forearm length	required

Source code in madcad/standard.py

def serial6(backarm:float, forearm:float) -> Kinematic:
	'''
	kinematic of a classical serial robot arm with 6 degrees of freedom

	![serial6](../screenshots/standard-serial6.png)

	Parameters:
		backarm:  backarm length
		forearm:  forearm length
	'''
	return Chain([
		Revolute(('base',1), Axis(-0.3*backarm*Z,Z)),  # shoulder 1
		Revolute((1,2), Axis(O,Y)),  # shoulder 2
		Revolute((2,3), Axis(backarm*Z,Y), Axis(O,Y)), # elbow
		Revolute((3,4), Axis(0.5*forearm*Z,Z)),  # wrist 1
		Revolute((4,5), Axis(forearm*Z,Y), Axis(O,Y)), # wrist 2
		Revolute((5,'tool'), Axis(0.3*forearm*Z,Z)), # wrist 3
		])

serial7(backarm, forearm)

kinematic of a classical serial robot arm with 7 degrees of freedom

Parameters:

Name	Type	Description	Default
backarm	float	backarm length	required
forearm	float	forearm length	required

Source code in madcad/standard.py

def serial7(backarm:float, forearm:float) -> Kinematic:
	'''
	kinematic of a classical serial robot arm with 7 degrees of freedom

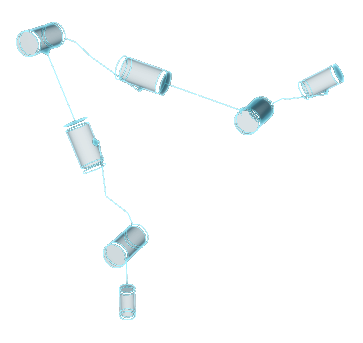

	![serial7](../screenshots/standard-serial7.png)

	Parameters:
		backarm:  backarm length
		forearm:  forearm length
	'''
	return Chain([
		Revolute(('base',1), Axis(-0.3*backarm*Z,Z)),  # shoulder 1
		Revolute((1,2), Axis(O,Y)),  # shoulder 2
		Revolute((2,3), Axis(0.5*backarm*Z,Z)),  # 7th degree
		Revolute((3,4), Axis(backarm*Z,Y), Axis(O,Y)), # elbow
		Revolute((4,5), Axis(0.5*forearm*Z,Z)),  # wrist 1
		Revolute((5,6), Axis(forearm*Z,Y), Axis(O,Y)), # wrist 2
		Revolute((6,'tool'), Axis(0.3*forearm*Z,Z)), # wrist 3
		])

delta3(base, tool, backarm, forearm, forearm_width=None)

kinematic of a classical delta robot with 3 degrees of freedom

Parameters:

Name	Type	Description	Default
base	float	the radius of motors placements	required
tool	float	the radius of the tool's ball joints placements	required
backarm	float	backarm length	required
forearm	float	forearm length	required
forearm_width	float	gap between the 2 forarm segments	None

Source code in madcad/standard.py

def delta3(base:float, tool:float, backarm:float, forearm:float, forearm_width:float=None) -> Kinematic:
	'''
	kinematic of a classical delta robot with 3 degrees of freedom

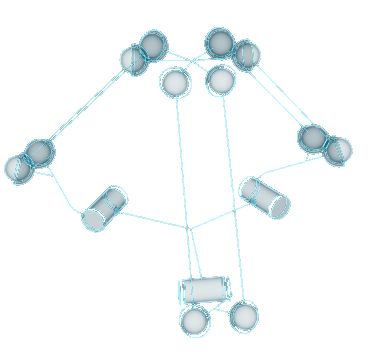

	![delta3](../screenshots/standard-delta3.png)

	Parameters:
		base:   the radius of motors placements
		tool:   the radius of the tool's ball joints placements
		backarm:  backarm length
		forearm:  forearm length
		forearm_width:  gap between the 2 forarm segments
	'''
	if forearm_width is None:	forearm_width = 0.1*forearm
	from . import generation as gt
	arms = gt.regon(Axis(O,Z), 1, 3).points
	motors = []
	joints = []
	for i, p in enumerate(arms):
		motors.append(Revolute(('base', f'backarm.{i}'), Axis(p,cross(Z, p*base)), Axis(O,X)))
		joints.append(Ball((f'backarm.{i}', f'forearm.{i}.0'), backarm*Z + forearm_width*X, O))
		joints.append(Ball((f'backarm.{i}', f'forearm.{i}.1'), backarm*Z - forearm_width*X, O))
		joints.append(Ball(('tool', f'forearm.{i}.0'), p*tool + forearm_width*cross(Z,p), forearm*Z))
		joints.append(Ball(('tool', f'forearm.{i}.1'), p*tool - forearm_width*cross(Z,p), forearm*Z))

	kin = Kinematic(joints, inputs=motors, outputs=['tool'], ground='base')
	kin.default = kin.solve({kin.outputs[0]: kin.outputs[0].inverse(translate(-forearm*Z))}, maxiter=1000)
	return kin
