Generation

The functions here generare meshes from simpler objects (like lower dimension meshes, or simple primitives). You won't find here iterative methods, nor adaptative geometry operations, nor mesh modification operations. The functions here may eventually be complex but will always feel predictable and simple from a human perspective.

Based on extrusion/transformation of a Web

extrans(section, transformations, links=None)

Create a surface by extruding and transforming the given outline.

Parameters:

Name	Type	Description	Default
section		a Web or a Mesh	required
transformations	iter	iterable of mat4, one each section	required
links		iterable of tuples (a,b,t) with (a,b) the sections to link (indices of values returned by transformation), t the group number of that link, to combine with the section groups. If links is not specified, it will link each transformed section to the previous one. This is equivalent to giving links (i, i+1, 0)	None

Examples:

>>> extrans(
...     regon(Axis(O,Z), 1, 4),
...     [translate(t*Z) * scale(vec3(0.5+t**2))  for t in linrange(-1, 1, div=10)],
...     )

Source code in madcad/generation.py

def extrans(section, transformations:iter, links=None) -> Mesh:
	''' Create a surface by extruding and transforming the given outline.

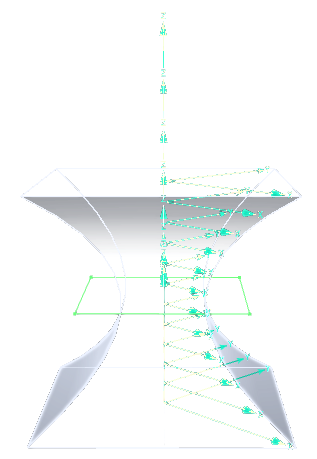

	![extrans result](../screenshots/generation-extrans.png)

	Parameters:
		section:           a `Web` or a `Mesh`
		transformations:   iterable of mat4, one each section
		links:             iterable of tuples (a,b,t)  with
			`(a,b)` the sections to link (indices of values returned by `transformation`),
			`t` the group number of that link, to combine with the section groups.

			If `links` is not specified, it will link each transformed section to the previous one.
			This is equivalent to giving links `(i, i+1, 0)`

	Examples:
		>>> extrans(
		... 	regon(Axis(O,Z), 1, 4),
		... 	[translate(t*Z) * scale(vec3(0.5+t**2))  for t in linrange(-1, 1, div=10)],
		... 	)
	'''
	# prepare
	if isinstance(section, Mesh):
		face = copy(section)
		face.strippoints()
		section = face.outlines()
	else:
		face = None
		section = copy(web(section))
	reindex = section.strippoints()

	mesh = Mesh()	  # result mesh
	extremities = {}  # index of extremities in links graph (similar to Web extremities), associated to a boolean telling the direction of that extremity
	kept = {}         # transformations kept in memory, indexed by their sections
	groups = {}       # groups created by the extransion

	l = len(section.points)

	# generate all sections points using transformations
	k = 0
	for k,trans in enumerate(transformations):
		for p in section.points:
			mesh.points.append(vec3(trans*vec4(p,1)))
		if k and not links:
			al, bl, u = (k-1)*l, k*l, 0
			for (c,d),v in zip(section.edges, section.tracks):
				t = groups.setdefault((u,v), len(groups))
				mkquad(mesh, (al+c, al+d, bl+d, bl+c), t)
		# keep extremities transformations
		kept[k] = trans

	# generate all sections faces using links
	if links:
		for a,b,u in links:
			al = a*l
			bl = b*l
			for (c,d),v in zip(section.edges, section.tracks):
				t = groups.setdefault((u,v), len(groups))
				mkquad(mesh, (al+c, al+d, bl+d, bl+c), t)
			# find extremities
			if face:
				if a in extremities:   del extremities[a]
				else:	               extremities[a] = True
				if b in extremities:   del extremities[b]
				else:                  extremities[b] = False

	if not links:
		extremities[0] = True
		extremities[k] = False

	# generate all combined groups
	mesh.groups = [None] * len(groups)
	for (u,v), t in groups.items():
		mesh.groups[t] = section.groups[v]	# NOTE will change in the future to mention both u and v

	# append faces at extremities
	if face:
		merges = {}  # point merge dictionnary at faces insertion

		for k, orient in extremities.items():
			for src,dst in enumerate(reindex):
				if dst >= 0:
					merges[src + len(mesh.points)] = dst + l*k
			end = face .transform(kept[k])
			mesh += end if extremities[k] else end.flip()
		mesh.mergepoints(merges)

	return mesh

extrusion(shape, trans, alignment=0)

Create a surface by extruding the given outline by a transformation

Parameters:

Name	Type	Description	Default
shape		a line (Web or Wire) or a surface (Mesh) to extrude	required
trans		any transformation object accepted by mathutils.transform	required
alignment	float	the relative position of the input shape in the resulting mesh - 0 means at the beginning - 1 means at the end	0

Examples:

>>> extrusion(ArcThrough(+Y, Z, -Y), 2*X)

Source code in madcad/generation.py

def extrusion(shape, trans, alignment:float=0) -> Mesh:
	''' Create a surface by extruding the given outline by a transformation

	![extrusion result](../screenshots/generation-extrusion.png)

	Parameters:
		shape:         a line (Web or Wire) or a surface (Mesh) to extrude
		trans:        any transformation object accepted by `mathutils.transform`
		alignment:  the relative position of the input shape in the resulting mesh
			- `0` means at the beginning
			- `1` means at the end

	Examples:
		>>> extrusion(ArcThrough(+Y, Z, -Y), 2*X)
	'''
	trans = transform(trans)
	neutral = mat4()
	return extrans(shape, [
				neutral + (trans-neutral)*(-alignment),
				neutral + (trans-neutral)*(1-alignment),
				],
				[(0,1,0)])

revolution(shape, axis=Axis(O, Z), angle=2 * pi, alignment=0, resolution=None)

Create a revolution surface by extruding the given outline steps is the number of steps between the start and the end of the extrusion

Parameters:

Name	Type	Description	Default
shape		the shape to extrude (Web, Wire, or Mesh), ideally a section	required
angle	float	angle of rotation between the given profile and the final produced profile	2 * pi
axis		the axis to rotate around	Axis(O, Z)
alignment	float	the relative position of the input shape in the resulting mesh 0 means at the beginning 1 means at the end	0
resolution		resolution setting for the biggest produced circle, such as for primitives	None

Examples:

>>> revolution(
...     ArcThrough(4*Z+Y, 6*Z, 4*Z-Y),
...     Axis(O,Y),
...     1.5*pi,
...     )

Source code in madcad/generation.py

def revolution(shape, axis=Axis(O,Z), angle:float=2*pi, alignment:float=0, resolution=None) -> Mesh:
	''' Create a revolution surface by extruding the given outline
	`steps` is the number of steps between the start and the end of the extrusion

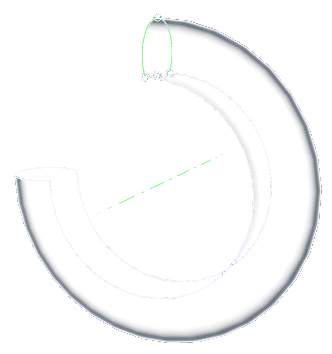

	![revolution result](../screenshots/generation-revolution.png)

	Parameters:
		shape:    the shape to extrude (Web, Wire, or Mesh), ideally a section
		angle:    angle of rotation between the given profile and the final produced profile
		axis:     the axis to rotate around
		alignment:  the relative position of the input shape in the resulting mesh

			- `0` means at the beginning
			- `1` means at the end

		resolution:   resolution setting for the biggest produced circle, such as for primitives

	Examples:
		>>> revolution(
		... 	ArcThrough(4*Z+Y, 6*Z, 4*Z-Y),
		... 	Axis(O,Y),
		... 	1.5*pi,
		... 	)
	'''
	if not isinstance(shape, (Mesh,Web,Wire)):
		shape = web(shape)
	# get the maximum radius, to compute the curve resolution
	radius = 0
	for pt in shape.points:
		radius = max(radius, length(noproject(pt-axis[0], axis[1])))
	div = settings.curve_resolution(abs(angle*radius), abs(angle), resolution)
	def links():
		for i in range(div):          yield (i,i+1, 0)
		if abs(angle-2*pi) <= NUMPREC:    yield (div, 0, 0)
		else:                             yield (div, div+1, 0)
	return extrans(shape, (
		rotatearound(t*angle, axis)
		for t in linrange(0-alignment, 1-alignment, div=div)
		), links())

helix(shape, height, angle, radius=1.0, axis=Axis(O, Z), alignment=0.0, resolution=None)

Extrude the given shape by rotating and translating along an axis

This variant expects the input shape to be close to orthogonal to the axis direction and is used to produce an screw/helix from its section

Parameters:

Name	Type	Description	Default
shape		the shape to extrude (Web, Wire, or Mesh), ideally a section	required
height	float	the maximum translation in the axis direction	required
radius	float	the radius at which the hexlix angle is computed	1.0
angle	float	the helix angle at radius	required
axis		the axis to rotate around and translate along	Axis(O, Z)
alignment	float	the relative position of the input shape in the resulting mesh 0 means at the beginning 1 means at the end	0.0
resolution		resolution setting for subdivisions	None

Examples:

>>> helix(
...     regon(Axis(O,Z), 1, 4).subdivide(4),
...     height=2,
...     angle=radians(45),
...     )

Source code in madcad/generation.py

def helix(shape, height:float, angle:float, radius:float=1., axis=Axis(O,Z), alignment:float=0., resolution=None) -> Mesh:
	''' Extrude the given shape by rotating and translating along an axis

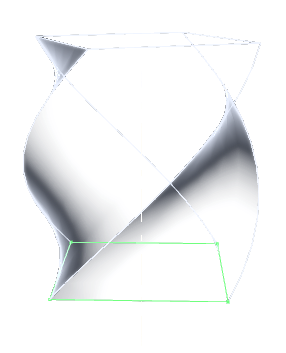

	![helix result](../screenshots/generation-helix.png)

	This variant expects the input shape to be close to orthogonal to the axis direction and is used to produce an screw/helix from its section

	Parameters:
		shape:    the shape to extrude (Web, Wire, or Mesh), ideally a section
		height:   the maximum translation in the `axis` direction
		radius:   the radius at which the hexlix `angle` is computed
		angle:    the helix angle at `radius`
		axis:     the axis to rotate around and translate along
		alignment:  the relative position of the input shape in the resulting mesh

			- `0` means at the beginning
			- `1` means at the end

		resolution:   resolution setting for subdivisions

	Examples:
		>>> helix(
		... 	regon(Axis(O,Z), 1, 4).subdivide(4),
		... 	height=2,
		... 	angle=radians(45),
		... 	)
	'''
	helix = tan(angle)
	div = settings.curve_resolution(height*helix, height/radius*helix, resolution)
	return extrans(shape, (
		translate(t*height*axis[1]) * rotatearound(t*height*helix/radius, axis)
		for t in linrange(0-alignment, 1-alignment, div=div)
		))

screw(shape, turns=1.0, axis=Axis(O, Z), step=None, alignment=0.0, resolution=None)

Extrude the given shape by rotating and translating along an axis

This variant expects the input shape to be close to coplanar to the axis direction and is used to produce a screw/helix from its profile

Parameters:

Name	Type	Description	Default
shape		the shape to extrude (Web, Wire, or Mesh), ideally a profile	required
turns	float	number of complete rotations of the profile	1.0
step	float	the translation after a complete rotation, if not provided it is automatically adjusted to the profile's height	None
axis		the axis to rotate around and translate along	Axis(O, Z)
alignment	float	the relative position of the input shape in the resulting mesh 0 means at the beginning 1 means at the end	0.0
resolution		resolution setting for subdivisions	None

Examples:

>>> screw(
...     wire([vec3(0,1,1), vec3(0,2,1), vec3(0,1,0)]).segmented(),
...     turns=2,
...     )

Source code in madcad/generation.py

def screw(shape, turns:float=1., axis=Axis(O,Z), step:float=None, alignment:float=0., resolution=None):
	''' Extrude the given shape by rotating and translating along an axis

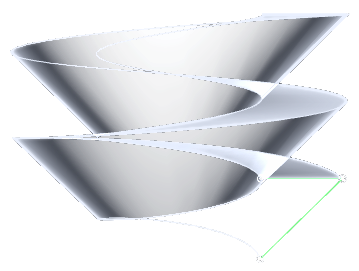

	![screw result](../screenshots/generation-screw.png)

	This variant expects the input shape to be close to coplanar to the axis direction and is used to produce a screw/helix from its profile

	Parameters:
		shape:    the shape to extrude (Web, Wire, or Mesh), ideally a profile
		turns:    number of complete rotations of the profile
		step:     the translation after a complete rotation, if not provided it is automatically adjusted to the profile's height
		axis:     the axis to rotate around and translate along
		alignment:  the relative position of the input shape in the resulting mesh

			- `0` means at the beginning
			- `1` means at the end

		resolution:   resolution setting for subdivisions

	Examples:
		>>> screw(
		... 	wire([vec3(0,1,1), vec3(0,2,1), vec3(0,1,0)]).segmented(),
		... 	turns=2,
		... 	)
	'''
	if not isinstance(shape, (Mesh,Web,Wire)):
		shape = web(shape)
	angle = turns * 2*pi
	# get the maximum radius, to compute the curve resolution
	# and the step if not provided
	radius = 0
	zmin, zmax = inf, -inf
	for pt in shape.points:
		z = dot(pt-axis[0], axis[1])
		v = noproject(pt-axis[0], axis[1])
		zmin = min(zmin, z)
		zmax = max(zmax, z)
		radius = max(radius, length(v))
	if step is None:
		step = zmax - zmin
	# produce the mesh
	div = settings.curve_resolution(abs(angle*radius), abs(angle), resolution)
	return extrans(shape, (
		translate(t*step*turns*axis[1]) * rotatearound(t*angle, axis)
		for t in linrange(0-alignment, 1-alignment, div=div)
		))

saddle(a, b)

Create a surface by extruding outine1 translating each instance to the next point of outline2

Examples:

>>> saddle(
...     ArcThrough(+Y,X,-Y),
...     Softened([0*X, 0*X-2*Z, 4*X-2*Z, 4*X]),
...     )

Source code in madcad/generation.py

def saddle(a, b:Web) -> Mesh:
	''' Create a surface by extruding outine1 translating each instance to the next point of outline2

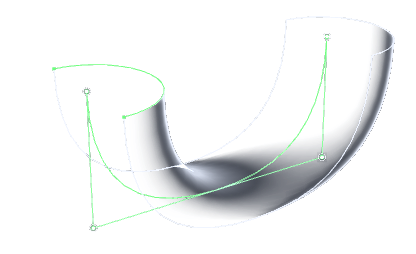

	![saddle result](../screenshots/generation-saddle.png)

	Examples:
		>>> saddle(
		... 	ArcThrough(+Y,X,-Y),
		... 	Softened([0*X, 0*X-2*Z, 4*X-2*Z, 4*X]),
		... 	)
	'''
	if not isinstance(a, (Mesh,Web,Wire)):
		a = web(a)
	b = web(b)
	def trans():
		s = b.points[0]
		for p in b.points:
			yield translate(mat4(1), p-s)
	return extrans(a, trans(), ((*e,t)  for e,t in zip(b.edges, b.tracks)))

tube(shape, path, end=True, section=True)

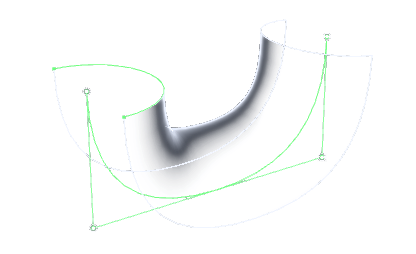

Create a tube surface by extruding the shape along the path if section is True, there is a correction of the segments to keep the section rigid by the curve

Examples:

>>> tube(
...     ArcThrough(+Y,X,-Y),
...     Softened([0*X, 0*X-2*Z, 4*X-2*Z, 4*X]),
...     )

Source code in madcad/generation.py

def tube(shape, path:Wire, end=True, section=True) -> Mesh:
	''' Create a tube surface by extruding the shape along the path if `section` is True, there is a correction of the segments to keep the section rigid by the curve

	![tube result](../screenshots/generation-tube.png)

	Examples:
		>>> tube(
		... 	ArcThrough(+Y,X,-Y),
		... 	Softened([0*X, 0*X-2*Z, 4*X-2*Z, 4*X]),
		... 	)
	'''
	path = wire(path)
	def trans():
		lastrot = quat()
		l = len(path)-1
		yield mat4(1)
		for i in range(1,l+1):

			if i < l:
				# calculer l'angle a ce coude
				o = path[i]
				v1 = normalize(path[i-1]-o)
				v2 = normalize(path[i+1]-o)
				c = cross(-v1,v2)
				o = dot(-v1,v2)
				cl = length(c)
				cn = c/cl
				ha = atan2(cl,o)/2
				hrot = angleAxis(ha, cn)
				# calcul de la rotation de la section
				rot = hrot * lastrot
				lastrot = hrot * rot
				m = mat3_cast(rot)
				# deformation de la section pour ne pas réduire le volume
				if section:
					m = scaledir(normalize(v1+v2), 1/cos(ha)) * m
			else:
				m = mat3_cast(lastrot)
			# construction de la transformation
			yield transform(path[i]) * mat4(m) * transform(-path[0])

	trans = trans()
	if not end:		next(trans)
	# handle wires with no tracks
	if path.tracks:		links = ((i, i+1, path.tracks[i]) for i in range(len(path)-1))
	else:				links = ((i, i+1, 0) for i in range(len(path)-1))
	# generate
	return extrans(shape, trans, links)

Generation of common meshes

regon(axis, radius, n, alignment=vec3(1, 0, 0))

Create a regular n-gon Wire, the same way we create a Circle

Source code in madcad/generation.py

def regon(axis:primitives.Axis, radius, n, alignment=vec3(1,0,0)) -> 'Wire':
	''' Create a regular n-gon `Wire`, the same way we create a `Circle`

	![regon result](../screenshots/generation-regon.png)
	'''
	x,y,z = dirbase(axis[1], alignment)
	return wire(typedlist(
		axis[0] + radius*(cos(2*pi*i/n)*x + sin(2*pi*i/n)*y)
		for i in range(n)
		)).close().segmented()

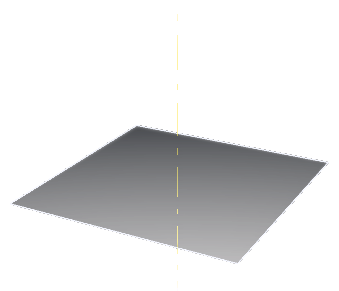

square(axis, width)

Return a simple square with the given normal axis and square width.

Useful to quickly create a cutplane

Source code in madcad/generation.py

def square(axis:primitives.Axis, width:float) -> 'Mesh':
	''' Return a simple square with the given normal axis and square width.

	![square result](../screenshots/generation-square.png)

	Useful to quickly create a cutplane
	'''
	x,y,z = dirbase(axis[1])
	return Mesh(
		typedlist([axis[0]+width*p   for p in ((x+y), (y-x), (-y-x), (-y+x))]),
		typedlist([uvec3(0,1,2), uvec3(2,3,0)]),
		groups=[None],
		)

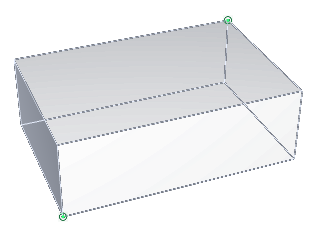

brick(*args, **kwargs)

A simple brick with rectangular axis-aligned sides

It can be constructed in the following ways:

• brick(Box)
• brick(min, max)
• brick(center=vec3(0), size=vec3(-inf), alignment=0.5)

Parameters:

Name	Type	Description	Default
min		the corner with minimal coordinates	required
max		the corner with maximal coordinates	required
center		the center of the box	required
size		the all positive diagonal of the box	required
alignment		where the center is inside the box	required

Source code in madcad/generation.py

def brick(*args, **kwargs) -> 'Mesh':
	''' A simple brick with rectangular axis-aligned sides

	![brick result](../screenshots/generation-brick.png)

	It can be constructed in the following ways:

	- `brick(Box)`
	- `brick(min, max)`
	- `brick(center=vec3(0), size=vec3(-inf), alignment=0.5)`

	Parameters:
		min:	the corner with minimal coordinates
		max:	the corner with maximal coordinates
		center: the center of the box
		size:  the all positive diagonal of the box
		alignment: where the center is inside the box
	'''
	if len(args) == 1 and not kwargs and isinstance(args[0], Box):
		box = args[0]
	else:
		box = Box(*args, **kwargs)
	mesh = Mesh(
		[
			vec3(1, 0, 0),
			vec3(1, 0, 1),
			vec3(0, 0, 1),
			vec3(0, 0, 0),
			vec3(1, 1, 0),
			vec3(1, 1, 1),
			vec3(0, 1, 1),
			vec3(0, 1, 0)],
		[
			uvec3(0, 1, 2),
			uvec3(0, 2, 3),
			uvec3(4, 7, 6),
			uvec3(4, 6, 5),
			uvec3(0, 4, 5),
			uvec3(0, 5, 1),
			uvec3(1, 5, 6),
			uvec3(1, 6, 2),
			uvec3(2, 6, 7),
			uvec3(2, 7, 3),
			uvec3(4, 0, 3),
			uvec3(4, 3, 7)],
		[	0, 0, 1, 1, 2, 2, 3, 3, 4, 4, 5, 5	],
		[None] * 6,
		)
	for i in range(len(mesh.points)):
		mesh.points[i] = mesh.points[i]*box.size + box.min
	return mesh

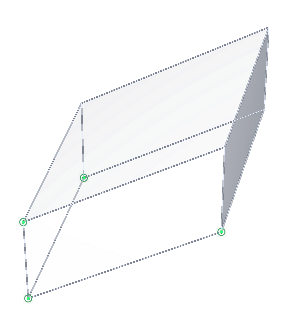

parallelogram(*directions, origin=vec3(0), alignment=vec3(0), fill=True)

Create a parallelogram or parallelepiped depending on the number of directions given

Parameters:

    directions:     list of 1-3 directions, they must for a right handed base for the face normals to be oriented outward
    origin: origin the resulting shape, the shape will placed relatively to that point
    alignment: relative position of the origin in the shape: 0 means at start of each direction, 1 means at the tip of each direction
    fill:
            - if True, a mesh will be generated (forming a surface with 2 directions, or an envelope with 3 directions)
            - if False, a Web will be generated

Source code in madcad/generation.py

def parallelogram(*directions, origin=vec3(0), alignment=vec3(0), fill=True) -> 'Mesh':
	''' Create a parallelogram or parallelepiped depending on the number of directions given

	![parallelogram result](../screenshots/generation-parallelogram.png)

	Parameters:

		directions:	list of 1-3 directions, they must for a right handed base for the face normals to be oriented outward
		origin: origin the resulting shape, the shape will placed relatively to that point
		alignment: relative position of the origin in the shape: 0 means at start of each direction, 1 means at the tip of each direction
		fill:
			- if True, a mesh will be generated (forming a surface with 2 directions, or an envelope with 3 directions)
			- if False, a Web will be generated
	'''
	try:				alignment = iter(alignment)
	except TypeError:	alignment = itertools.repeat(alignment)

	# generate points by binary combinations
	points = []
	min = origin - sum(a*d  for a,d in zip(alignment, directions))
	for i in range(2**len(directions)):
		points.append(min + sum(d if i>>k & 1 else 0   for k,d in enumerate(directions)))

	# mesh
	if len(directions) == 1:
		if fill:
			raise ValueError('cannot fill parallelogram with one only direction')
		else:
			return Web(points, [uvec2(0,1)])

	if len(directions) == 2:
		if fill:
			return Mesh(points, [
					uvec3(0,1,2), uvec3(2,1,3),
					])
		else:
			return Web(points, [
					uvec2(0,1),
					uvec2(1,3),
					uvec2(3,2),
					uvec2(2,0),
					]).segmented()

	elif len(directions) == 3:
		if fill:
			return Mesh(points,
					[
						uvec3(0,2,1), uvec3(1,2,3),
						uvec3(0,1,4), uvec3(1,5,4),
						uvec3(0,4,2), uvec3(2,4,6),
						uvec3(4,5,6), uvec3(5,7,6),
						uvec3(2,6,3), uvec3(3,6,7),
						uvec3(1,3,5), uvec3(3,7,5),
					],
					[
						0, 0,
						1, 1,
						2, 2,
						3, 3,
						4, 4,
						5, 5,
					])
		else:
			return Web(points, [
					uvec2(0,1), uvec2(2,3), uvec2(4,5), uvec2(6,7),
					uvec2(0,2), uvec2(1,3), uvec2(4,6), uvec2(5,7),
					uvec2(0,4), uvec2(1,5), uvec2(2,6), uvec2(3,7),
					]).segmented()

	else:
		raise ValueError('wrong number of directions')

cylinder(bottom, top, radius, fill=True, resolution=None)

Create a revolution cylinder, with the given radius

Parameters:

    bottom, top (vec3): the cylinder extremities centers
    fill (bool):        whether to put faces at both extremities

Source code in madcad/generation.py

def cylinder(bottom:vec3, top:vec3, radius:float, fill=True, resolution=None) -> 'Mesh':
	''' Create a revolution cylinder, with the given radius

	![cylinder result](../screenshots/generation-cylinder.png)

	Parameters:

		bottom, top (vec3): the cylinder extremities centers
		fill (bool):        whether to put faces at both extremities
	'''
	direction = top-bottom
	base = wire(primitives.Circle(Axis(bottom,normalize(direction)), radius), resolution=resolution)
	if fill:	base = _fill(base).flip()
	return extrusion(base, direction)

cone(summit, base, radius, fill=True, resolution=None)

Create a revolution cone, with a base of the given radius

Parameters:

    summit (vec3):  The point at the top of the cone
    base (vec3):    the center point of the base
    fill (bool):    whether to put a face at the base

Source code in madcad/generation.py

def cone(summit:vec3, base:vec3, radius:float, fill=True, resolution=None) -> 'Mesh':
	''' Create a revolution cone, with a base of the given radius

	![cone result](../screenshots/generation-cone.png)

	Parameters:

		summit (vec3):  The point at the top of the cone
		base (vec3):    the center point of the base
		fill (bool):    whether to put a face at the base
	'''
	base = wire(primitives.Circle(Axis(base, normalize(summit-base)), radius), resolution=resolution)
	if fill:	base = _fill(base)
	return pyramid(summit, base)

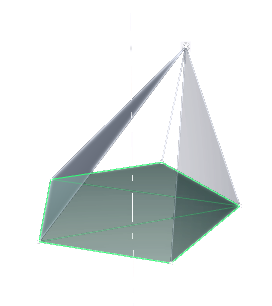

pyramid(summit, base)

Create a pyramid with the given summit point and the given base

Parameters:

Name	Type	Description	Default
summit	vec3	the top (summit) of the cone, not necessarity in the center of the shape	required
base		(Mesh,Web,Wire): the base shape	required

Source code in madcad/generation.py

def pyramid(summit:vec3, base) -> 'Mesh':
	''' Create a pyramid with the given summit point and the given base

	![pyramid result](../screenshots/generation-pyramid.png)

	Parameters:
		summit (vec3):   the top (summit) of the cone, not necessarity in the center of the shape
		base: (Mesh,Web,Wire):  the base shape
	'''
	if isinstance(base, Mesh):
		outline = base.outlines().flip()
		outline.stripgroups()
		result = Mesh(base.points, groups=outline.groups)
	else:
		outline = web(base)
		result = Mesh(points=outline.points, groups=outline.groups)

	p = len(result.points)
	result.points.append(summit)
	for edge, track in zip(outline.edges, outline.tracks):
		result.faces.append(uvec3(edge, p))
		result.tracks.append(track)

	if isinstance(base, Mesh):
		result += base.flip()

	return result

icosahedron(center, radius)

A simple icosahedron (see https://en.wikipedia.org/wiki/Icosahedron)

Source code in madcad/generation.py

def icosahedron(center:vec3, radius:float) -> 'Mesh':
	''' A simple icosahedron (see https://en.wikipedia.org/wiki/Icosahedron)

	![icosahedron result](../screenshots/generation-icosahedron.png)
	'''
	phi = (1+ sqrt(5)) /2	# golden ratio
	m = Mesh(
		typedlist([
			vec3(0, 1, phi),
			vec3(1, phi, 0),
			vec3(phi, 0, 1),
			vec3(0, -1, phi),
			vec3(-1, phi, 0),
			vec3(phi, 0, -1),
			vec3(0, 1, -phi),
			vec3(1, -phi, 0),
			vec3(-phi, 0, 1),
			vec3(0, -1, -phi),
			vec3(-1, -phi, 0),
			vec3(-phi, 0, -1),
		]),
		typedlist([
			uvec3(0,1,4), uvec3(0,2,1), uvec3(0,3,2), uvec3(0,8,3), uvec3(0,4,8),
			uvec3(2,5,1), uvec3(1,6,4), uvec3(4,11,8), uvec3(8,10,3), uvec3(3,7,2),
			uvec3(3,10,7), uvec3(2,7,5), uvec3(1,5,6), uvec3(4,6,11), uvec3(8,11,10),
			uvec3(7,9,5), uvec3(5,9,6), uvec3(6,9,11), uvec3(11,9,10), uvec3(10,9,7),
		]),
		)
	f = radius/length(m.points[0])
	for i,p in enumerate(m.points):
		m.points[i] = f*p + center
	return m

icosphere(center, radius, resolution=None)

A simple icosphere with an arbitrary resolution (see https://en.wikipedia.org/wiki/Geodesic_polyhedron).

Points are obtained from a subdivided icosahedron and reprojected on the desired radius.

Source code in madcad/generation.py

def icosphere(center:vec3, radius:float, resolution=None) -> 'Mesh':
	''' A simple icosphere with an arbitrary resolution (see https://en.wikipedia.org/wiki/Geodesic_polyhedron).

	![icosphere result](../screenshots/generation-icosphere.png)

	Points are obtained from a subdivided icosahedron and reprojected on the desired radius.
	'''
	div = settings.curve_resolution(2/6*pi*radius, 2/6*pi, resolution)
	ico = icosahedron(center, radius).subdivide(div-1)
	for i,p in enumerate(ico.points):
		ico.points[i] = center + radius * normalize(p-center)
	return ico

uvsphere(center, radius, alignment=vec3(0, 0, 1), resolution=None)

A simple uvsphere (simple sphere obtained with a revolution of an arc)

Source code in madcad/generation.py

def uvsphere(center:vec3, radius:float, alignment=vec3(0,0,1), resolution=None) -> 'Mesh':
	''' A simple uvsphere (simple sphere obtained with a revolution of an arc)

	![uvsphere result](../screenshots/generation-uvsphere.png)
	'''
	x,y,z = dirbase(alignment)
	mesh = revolution(
			web(primitives.ArcCentered(
				(center,x),
				center+radius*z,
				center-radius*z,
				resolution=resolution)),
			Axis(center, z),
			resolution=resolution)
	mesh.mergeclose()
	return mesh

Repeating

repeat(pattern, repetitions, transform)

Create a mesh duplicating n times the given pattern, each time applying the given transform.

Parameters:

Name	Type	Description	Default
pattern		can either be a Mesh, Web or Wire, the return type will depend on the input type	required
repetitions	int	the number of repetitions	required
transform		is the transformation between each duplicate	required

Source code in madcad/generation.py

def repeat(pattern, repetitions:int, transform):
	''' Create a mesh duplicating n times the given pattern, each time applying the given transform.

	Parameters:
		pattern:   can either be a `Mesh`, `Web` or `Wire`, the return type will depend on the input type
		repetitions:   the number of repetitions
		transform:     is the transformation between each duplicate
	'''
	current = pattern
	pool = type(pattern)(groups=pattern.groups)
	if repetitions:	pool += current
	for i in range(1, repetitions):
		current = current.transform(transform)
		pool += current
	return pool

repeataround(pattern, repetitions=None, axis=Axis(O, Z), angle=2 * pi)

same as [repeat] using [rotatearound]

Source code in madcad/generation.py

def repeataround(pattern, repetitions:int=None, axis=Axis(O,Z), angle=2*pi):
	''' same as [repeat] using [rotatearound] '''
	if repetitions is None:
		if isinstance(pattern, Mesh):	indices = (i for f in pattern.faces for i in f )
		elif isinstance(pattern, Web):	indices = (i for e in pattern.edges for i in e)
		elif isinstance(pattern, Wire): indices = iter(pattern.indices)

		x,y,z = dirbase(axis[1], align=pattern.points[next(indices)] - axis[0])
		lower, upper = 0, 0
		for p in indices:
			t = atan2(dot(pattern.points[p]-axis[0], y), dot(pattern.points[p]-axis[0], x))
			lower = min(lower, t)
			upper = max(upper, t)
		repetitions = round(angle / (upper - lower))
	return repeat(pattern, repetitions, rotatearound(angle/repetitions, axis))

Others

fill(outline, normal=None)

Generates a surface for a flat outline using the prefered triangulation method.

If normal is specified, it must be the normal vector to the plane, and will be used to orient the face.

Source code in madcad/generation.py

def fill(outline, normal=None) -> 'Mesh':
	''' Generates a surface for a flat outline using the prefered triangulation method.

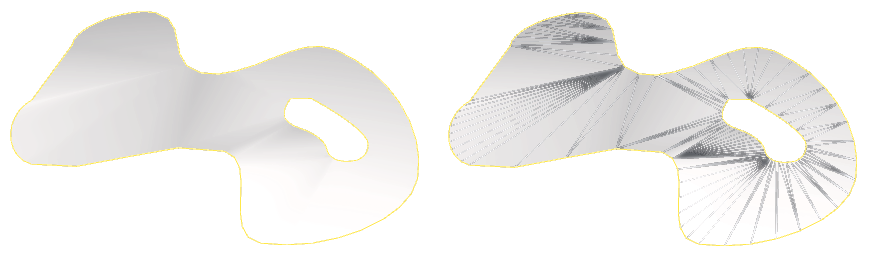

	![fill result](../screenshots/generation-fill.png)

	If `normal` is specified, it must be the normal vector to the plane, and will be used to orient the face.
	'''
	if isinstance(outline, Wire):
		m = triangulation.triangulation_outline(outline, normal)
	else:
		m = triangulation.triangulation(web(outline), normal)
	if normal and dot(m.facenormal(0), normal) < 0:
		m = m.flip()
	return m

icosurface(pts, ptangents, resolution=None)

Generate a surface ICO (a subdivided triangle) with its points interpolated using interpol2tri.

• If normals are given instead of point tangents (for ptangents), the surface will fit a sphere.
• Else ptangents must be a list of couples (2 edge tangents each point).

Source code in madcad/generation.py

def icosurface(pts, ptangents, resolution=None) -> 'Mesh':
	''' Generate a surface ICO (a subdivided triangle) with its points interpolated using interpol2tri.

	- If normals are given instead of point tangents (for ptangents), the surface will fit a sphere.
	- Else `ptangents` must be a list of couples (2 edge tangents each point).
	'''
	# compute normals to points
	if isinstance(ptangents[0], tuple):
		normals = [None]*3
		for i in range(3):
			normals[i] = normalize(cross(ptangents[i][0], ptangents[i][1]))
	else:
		# if normals are given instead of tangents, compute tangents to fit a sphere surface
		normals = ptangents
		ptangents = [None]*3
		for i in range(3):
			ptangents[i] = (
				normalize(noproject(pts[i-2]-pts[i], normals[i])) * arclength(pts[i], pts[i-2], normals[i], normals[i-2]),
				normalize(noproject(pts[i-1]-pts[i], normals[i])) * arclength(pts[i], pts[i-1], normals[i], normals[i-1]),
				)

	# evaluate resolution (using a bad approximation of the length for now)
	div = max(( settings.curve_resolution(
					distance(pts[i-1], pts[i-2]),
					anglebt(normals[i-1], normals[i-2]),
					resolution)
				for i in range(3) ))

	return dividedtriangle(lambda u,v: intri_sphere(pts, ptangents, u,v), div)
