blending -- Creation of surface between outlines

This module focuses on automated envelope generations, based on interface outlines.

The user has only to define the interface outlines or surfaces to join, and the algorithm makes the surface. No more pain to imagine some fancy geometries.

Formal definitions

• interface: a surface or an outline (a loop) with associated exterior normals.
• node: a group of interfaces meant to be attached together by a blended surface.

In order to generate envelopes, this module asks for cutting all the surfaces to join into 'nodes'. The algorithm decides how to join shortly all the outlines in a node. Once splited in nodes, you only need to generate node junctions for each, and concatenate the resulting meshes.

Details

The blended surfaces are created between interfaces, linked as the points of a convex polyedron of the interfaces directions to the node center.

Example

    >>> x, y, z = vec3(1, 0, 0), vec3(0, 1, 0), vec3(0, 0, 1)

    >>> # 1. A surface can be passed: the surface outlines and
    >>> # normals will be used as the generated surface tangents
    >>> # 2. Wire or primitives can be passed: the wire loops are used
    >>> # and the approximate normal to the  wire plane
    >>> # 3. More parameters when building directly the interface
    >>> m = junction(
    ...             extrusion(2 * z, web(Circle((vec3(0), z), 1))), # 1.
    ...             Circle((2 * x, x), 0.5),                        # 2.
    ...             (Circle((2 * y, y), 0.5), "tangent", 2.0),      # 3.
    ...             generate="normal",
    ... )

To come in a next version

    >>> # create junction for each iterable of interface,
    >>> # if some are not interfaces, they are used
    >>> # as placeholder objects for auto-determined interfaces
    >>> multijunction(
    ...             (surf1, surf2, 42, surf5),
    ...             (42, surf3, surf4),
    ...             generate='straight',
    ... )

General mesh generation

junction(*args, center=None, tangents='normal', weight=1.0, match='length', resolution=None)

Join several outlines with a blended surface

    tangents:
            'straight'      no interpolation, straight lines
            'normal'        interpolated surface starts normal to the interfaces
            'tangent'       interpolated surface starts tangent to the interfaces

    weight:
            factor applied on the tangents before passing to `interpol2` or `intri_smooth`
            the resulting tangent is computed in point `a` as `weight * distance(a,b) * normalize(tangent[a])`

    match:
            'length'        share the outline between 2 matched points to assign the same length to both sides
            'corner'        split the curve to share around a corner

    center:
            position of the center of the junction node used to determine connexion between interfaces
            can be usefull for particularly weird and ambiguous interfaces

Note

match method 'corner' is not yet implemented

Source code in madcad/blending.py

def junction(*args, center=None, tangents='normal', weight=1., match='length', resolution=None):
	''' Join several outlines with a blended surface

	![junction preparation](../screenshots/junction-circles-prep.png)
	![junction result](../screenshots/junction-circles.png)

		tangents:
			'straight'	no interpolation, straight lines
			'normal'	interpolated surface starts normal to the interfaces
			'tangent'	interpolated surface starts tangent to the interfaces

		weight:
			factor applied on the tangents before passing to `interpol2` or `intri_smooth`
			the resulting tangent is computed in point `a` as `weight * distance(a,b) * normalize(tangent[a])`

		match:
			'length'	share the outline between 2 matched points to assign the same length to both sides
			'corner'	split the curve to share around a corner

		center:
			position of the center of the junction node used to determine connexion between interfaces
			can be usefull for particularly weird and ambiguous interfaces

	Note:
		match method 'corner' is not yet implemented
	'''
	pts, tangents, weights, loops = get_interfaces(args, tangents, weight)
	if len(loops) == 0:
		return Mesh()
	if len(loops) == 1:
		return blendloop(
					(pts, tangents, weights, loops),
					center, resolution=resolution)
	if len(loops) == 2:
		c0 = interfaces_center(pts, loops[0])
		c1 = interfaces_center(pts, loops[1])
		z = c1 - c0
		p = pts[imax( length2(noproject(pts[i]-c0, z))   for i in loops[0] )]
		x = noproject(p - c0, z)
		i0 = imax( dot(pts[i], x)  for i in loops[0])
		i1 = imax( dot(pts[i], x)  for i in loops[1])
		return blendpair(
					(pts, tangents, weights, (
						loops[0][i0:]+loops[0][1:i0+1],
						loops[1][i1:]+loops[1][1:i1+1],
						)),
					resolution=resolution)

	# determine center and convex hull of centers
	if not center:
		center = interfaces_center(pts, *loops)
	node = convexhull([	normalize(interfaces_center(pts, interf)-center)
						for interf in loops])
	# fix convexhull faces orientations
	for i,f in enumerate(node.faces):
		if dot(node.facenormal(f), sum(node.facepoints(i))) < -1e-9:
			node.faces[i] = (f[0],f[2],f[1])
	nodeconn = connef(node.faces)

	# determine the junction triangles and cuts
	middles = []
	cuts = {}
	for face in node.faces:
		n = node.facenormal(face)
		middle = [	max(loops[i], key=lambda p: dot(pts[p], n) )
					for i in face]
		#middle = [None]*3
		#for i in range(3):
			#interface = loops[face[i]]
			#middle[i] = interface[max(range(len(interface)),
				#key=lambda j: dot(pts[interface[i]], n) * dot(n,
									#cross(	pts[interface[j]] - pts[interface[j-1]],
											#node.points[face[i]] - node.points[face[i-1]])),
				#)]
		middles.append(middle)
		for i in range(3):
			if middle[i-1] in cuts and cuts[middle[i-1]] != middle[i-2]:	continue
			cuts[middle[i-1]] = middle[i]
	# cut the interfaces
	parts = {}
	for interf in loops:
		l = len(interf)
		last = None
		first = None
		for i,p in enumerate(interf):
			if p in cuts:
				if first is None:	first = i
				if last is not None:
					parts[interf[last]] = interf[last:i+1]
				last = i
		if (first-last) % len(interf) > 1:
			parts[interf[last]] = interf[last:] + interf[1:first+1]

	# assemble parts in matchings
	matchs = []
	done = set()
	for i in cuts:
		if i in done:	continue
		j = parts[cuts[i]][-1]
		assert parts[cuts[j]][-1] == i, "failed to match outlines"
		matchs.append((parts[cuts[i]], parts[cuts[j]]))
		done.add(j)

	# generate the surfaces
	result = Mesh(pts)
	div = 11
	for la,lb in matchs:
		def infos():
			for a,b in match_length(Wire(pts,lb), Wire(pts,list(reversed(la)))):
				# normalize except for 0
				ta, tb = tangents[a], tangents[b]
				ta /= length(ta) or 1
				tb /= length(tb) or 1
				# scale and weight
				l = distance(pts[a],pts[b])  # NOTE not the arclength for the moment
				yield (pts[a], ta*l*weights[a]), (pts[b], tb*l*weights[b])
		result += blenditer(infos(), div, interpol2)
	for tri in middles:
		assert len(tri) == 3
		ptgts = [None]*3
		ptri = [None]*3
		for i in range(3):
			s = tri[i]
			ptgts[i] = (tangents[s]*weights[s]*distance(pts[s], pts[tri[i-2]]),
						tangents[s]*weights[s]*distance(pts[s], pts[tri[i-1]]),
						)
			ptri[i] = pts[tri[i]]

		result += generation.dividedtriangle(lambda u,v: intri_smooth(ptri, ptgts, u,v), div)

	result.mergeclose()
	return result

blendloop(interface, center=None, tangents='tangent', weight=1.0, resolution=None)

Blend inside a loop interface

    see `junction` for the parameters.

Source code in madcad/blending.py

def blendloop(interface, center=None, tangents='tangent', weight=1., resolution=None) -> Mesh:
	''' Blend inside a loop interface

	![blendloop result](../screenshots/blendloop.png)

		see `junction` for the parameters.
	'''
	pts, tangents, weights, loops = get_interfaces([interface], tangents, weight)
	if len(loops) > 1:
		raise ValueError('interface must have one loop only')
	loop = loops[0]

	# get center and normal at center
	if not center:
		center = interfaces_center(pts, *loops) + sum(weights[p]*tangents[p] for p in loop) / len(loop)
	normal = normalize(sum(normalize(center-pts[p])	for p in loop))
	if not isfinite(normal):	normal = vec3(0)

	# generatestraight
	match = [None] * len(loop)
	div = 0
	for i,p in enumerate(loop):
		match[i] = m = (	(pts[p], distance(center, pts[p])*weights[p]*tangents[p]),
							(center, noproject(pts[p]-center, normal))	)
		div = max(div, settings.curve_resolution(distance(m[0][0],m[1][0]), anglebt(m[0][1],m[1][1]), resolution))
	return blenditer(match, div, interpol2)

blendpair(*interfaces, match='length', tangents='tangent', weight=1.0, resolution=None)

Blend between a pair of interfaces

    match:
            `'length'`, `'closest'` refer to `match_*` in this module

    see `junction` for the other parameters.

Source code in madcad/blending.py

def blendpair(*interfaces, match='length', tangents='tangent', weight=1., resolution=None) -> Mesh:
	''' Blend between a pair of interfaces

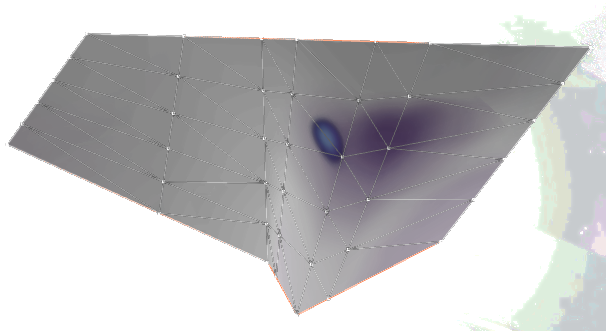

	![blendpair result](../screenshots/blendpair.png)

		match:
			`'length'`, `'closest'` refer to `match_*` in this module

		see `junction` for the other parameters.
	'''
	pts, tangents, weights, loops = get_interfaces(interfaces, tangents, weight)
	if len(loops) != 2:
		raise ValueError('interface must have exactly 2 loops, got '+str(len(loops)))

	if match == 'length':		method = match_length
	elif match == 'closest':	method = match_closest
	else:
		raise ValueError('matching method {} not implemented'.format(match))

	#if loops[1][0] == loops[1][-1]:		loops[1] = synchronize(Wire(pts, loops[0]), Wire(pts, loops[1])).indices
	#elif loops[0][0] == loops[0][-1]:	loops[0] = synchronize(Wire(pts, loops[1]), Wire(pts, loops[0])).indices

	match = list(method(Wire(pts, loops[0]), Wire(pts, list(reversed(loops[1])))))
	# get the discretisation
	div = 0
	for i in range(1, len(match)):
		a,d = match[i-1][0], match[i-1][1]
		b,c = match[i][0], match[i][1]
		m = (pts[a] + pts[b] + pts[c] + pts[d]) /4
		ta = pts[a] -m
		tb = pts[b] -m
		tc = pts[c] -m
		td = pts[d] -m
		div = max(
				div,
				settings.curve_resolution(
						distance(pts[a],pts[c]),
						anglebt(ta, -tc) + anglebt(ta, tangents[a]) + anglebt(tc, tangents[c]),
						resolution),
				settings.curve_resolution(
						distance(pts[b],pts[d]),
						anglebt(tb, -td) + anglebt(tb, tangents[b]) + anglebt(td, tangents[d]),
						resolution),
				)
	def infos():
		for p0, p1 in match:
			d = distance(pts[p0], pts[p1])
			yield ((pts[p0], d*weights[p0]*tangents[p0]), (pts[p1], d*weights[p1]*tangents[p1]))
	return blenditer(infos(), div, interpol2)

blenditer(parameters, div, interpol)

Create a blended surface using the matching parameters and the given interpolation parameters is an iterable of tuples of arguments for the interpolation function interpol receive the elements iterated and the interpolation position at the end

Source code in madcad/blending.py

def blenditer(parameters, div, interpol) -> Mesh:
	''' Create a blended surface using the matching parameters and the given interpolation
		parameters is an iterable of tuples of arguments for the interpolation function
		interpol receive the elements iterated and the interpolation position at the end
	'''
	segts = div+2
	mesh = Mesh(groups=[None])
	# create interpolation points
	steps = 0
	for params in parameters:
		steps += 1
		for i in range(segts):
			x = i/(segts-1)
			mesh.points.append(interpol(*params, x))
	# create faces
	for i in range(steps-1):
		j = i*segts
		for k in range(segts-1):
			s = j+k
			mkquad(mesh, (s, s+1, s+segts+1, s+segts))
	mesh.mergeclose()
	return mesh

Misc tools

match_length(line1, line2)

Yield couples of point indices where the curved absciss are the closest

Source code in madcad/blending.py

def match_length(line1, line2) -> '[(int, int)]':
	''' Yield couples of point indices where the curved absciss are the closest '''
	yield line1.indices[0], line2.indices[0]
	l1, l2 = line1.length(), line2.length()
	i1, i2 = 1, 1
	x1, x2 = 0, 0
	while i1 < len(line1.indices) and i2 < len(line2.indices):
		p1 = distance(line1.points[line1.indices[i1-1]], line1.points[line1.indices[i1]]) / l1
		p2 = distance(line2.points[line2.indices[i2-1]], line2.points[line2.indices[i2]]) / l2
		x1p = x1+0.5*p1
		x2p = x2+0.5*p2
		if x1 <= x2p and x2p <= x1+p1    and    x2 <= x1p and x1p <= x2+p2:
			i1 += 1; x1 += p1
			i2 += 1; x2 += p2
		elif x1p < x2p:
			i1 += 1; x1 += p1
		else:
			i2 += 1; x2 += p2
		yield line1.indices[i1-1], line2.indices[i2-1]
	while i1 < len(line1.indices):
		i1 += 1
		yield line1.indices[i1-1], line2.indices[i2-1]
	while i2 < len(line2.indices):
		i2 += 1
		yield line1.indices[i1-1], line2.indices[i2-1]

match_closest(line1, line2)

Yield couples of points by cutting each line at the curvilign absciss of the points of the other

Source code in madcad/blending.py

def match_closest(line1, line2) -> '[(int, int)]':
	''' Yield couples of points by cutting each line at the curvilign absciss of the points of the other '''
	l1, l2 = line1.length(), line2.length()
	p1, p2 = line1.points[line1.indices[0]], line2.points[line2.indices[0]]
	x = 0
	i1, i2 = 1, 1
	yield (p1, p2)
	while i1 < len(line1.indices) and i2 < len(line2.indices):
		n1 = line1.points[line1.indices[i1]]
		n2 = line2.points[line2.indices[i2]]
		dx1 = distance(p1, n1) / l1
		dx2 = distance(p2, n2) / l2
		if dx1 > dx2:
			x += dx2
			p1 = interpol1(p1, n1, dx2/dx1)
			p2 = n2
			i2 += 1
		else:
			x += dx1
			p1 = n1
			p2 = interpol1(p2, n2, dx1/dx2)
			i1 += 1
		yield (p1, p2)

Small utilities

join(mesh, line1, line2)

Simple straight surface created from matching couples of line1 and line2 using mesh indices for lines

Source code in madcad/blending.py

def join(mesh, line1, line2):
	''' Simple straight surface created from matching couples of line1 and line2 using mesh indices for lines '''
	group = len(mesh.groups)
	mesh.groups.append(None)
	match = iter(curvematch(Wire(mesh.points, line1), Wire(mesh.points, line2)))
	last = next(match)
	for couple in match:
		a,b = last
		d,c = couple
		if b == c:		mktri(mesh, (a,b,c), group)
		elif a == d:	mktri(mesh, (a,b,c), group)
		else:
			mkquad(mesh, (a,b,c,d), group)
		last = couple

trijoin(pts, ptgts, div)

Simple straight surface created between 3 points, interpolation is only on the sides

Source code in madcad/blending.py

def trijoin(pts, ptgts, div):
	''' Simple straight surface created between 3 points, interpolation is only on the sides '''
	mesh = Mesh(groups=[None])
	segts = div+1
	for i in range(3):
		for j in range(segts):
			x = j/segts
			mesh.points.append(interpol2((pts[i-1], ptgts[i-1][0]), (pts[i], ptgts[i][1]), x))
	l = len(mesh.points)
	for i in range(3):
		c = i*segts
		for j in range(segts//2):
			mkquad(mesh, ((c-j-1)%l, (c-j)%l, (c+j)%l, (c+j+1)%l))
	return mesh
