scheme -- Annotation functionalities

This module provides annotation functions to quickly measure and show things on meshes

This is more to be considered as a rendering feature, rather than a proper measuring system. Everything is built on the class Scheme that provide a very versatile way to structure and render simple but animated schematics

Those functions are designed to be very simple to use, (sometimes even minimalistic)

    >>> mesh = brick(width=vec3(3,2,1))
    >>> show([
    ...     mesh,
    ...     note_distance_planes(mesh.group(4), mesh.group(2)),
    ...     note_leading(mesh.group(3), text='truc'),
    ...     ])

Schematics system

Scheme(vertices=None, spaces=None, primitives=None, **kwargs)

An object containing schematics.

This is a buffer object, it isnot intended to be useful to modify a scheme.

Attributes:

Name	Type	Description
spaces	list	a space is any function giving a mat4 to position a point on the screen (openGL convensions as used)
vertices	list	a vertex is a tuple (space id, position, normal, color, layer, track, flags)
primitives	list	list of buffers (of point indices, edges, triangles, depending on the exact primitive type), associaded to each supported shader in the scheem currently supported shaders are: 'line' uniform opaque/transparent lines 'fill' uniform opaque/transparent triangles 'ghost' triangles of surface that fade when its normal is close to the view
components	list	objects to display setting their local space to one of the spaces
current	dict	last vertex definition, implicitely reused for convenience

Source code in madcad/scheme.py

def __init__(self, vertices=None, spaces=None, primitives=None, **kwargs):
	self.vertices = vertices or [] # list of vertices
	self.spaces = spaces or []	# definition of each space
	self.primitives = primitives or {} # list of indices for each shader
	self.components = []	# displayables associated to spaces
	# for creation: last vertex inserted
	self.current = {'color':fvec4(settings.colors['annotation'],1), 'flags':0, 'layer':0, 'space':world, 'shader':'line', 'track':0, 'normal':fvec3(0)}
	self.continuous = False
	self.set(**kwargs)

set(*args, **kwargs)

Change the specified attributes in the current default vertex definition

Source code in madcad/scheme.py

def set(self, *args, **kwargs):
	''' Change the specified attributes in the current default vertex definition '''
	if args:
		if len(args) == 1 and isinstance(args[0], dict):
			kwargs = args[0]
		else:
			raise TypeError('Scheme.set expects keywords argument or one unique dictionnary argument')
	self.current.update(kwargs)
	# register the space if not already known
	if not isinstance(self.current['space'], int):
		try:	i = self.spaces.index(self.current['space'])
		except ValueError:
			i = len(self.spaces)
			self.spaces.append(self.current['space'])
		self.current['space'] = i
	if not isinstance(self.current['color'], fvec4):
		self.current['color'] = fvec4(self.current['color'])

	return self

add(obj, **kwargs)

Add an object to the scheme. If it is a mesh, it's merged in the current buffers. Else it is added as a component to the current space.

Source code in madcad/scheme.py

def add(self, obj, **kwargs):
	''' Add an object to the scheme.
		If it is a mesh, it's merged in the current buffers.
		Else it is added as a component to the current space.
	'''
	self.set(kwargs)
	if self.current['shader'] not in self.primitives:
		self.primitives[self.current['shader']] = indices = []
	else:
		indices = self.primitives[self.current['shader']]
	l = len(self.vertices)
	continuing = False

	if isinstance(obj, (Mesh,Web)):
		self.vertices.extend([
							self.current['space'],
							fvec3(p),
							self.current['normal'],
							self.current['color'],
							self.current['layer'],
							self.current['track'],
							self.current['flags'],
						]  for p in obj.points)
	if isinstance(obj, Mesh):
		indices.extend(((a+l, b+l, c+l)  for a,b,c in obj.faces))
		for i,n in enumerate(obj.vertexnormals()):
			# prefer +inf to nan or -inf because the normal is supposed to be positive and nan is not comparable
			if not isfinite(n):
				n = vec3(inf)
			self.vertices[i+l][2] = n
	elif isinstance(obj, Web):
		indices.extend(((a+l, b+l)  for a,b in obj.edges))
	elif isinstance(obj, vec3):
		self.vertices.append([
							self.current['space'],
							fvec3(obj),
							self.current['normal'],
							self.current['color'],
							self.current['layer'],
							self.current['track'],
							self.current['flags'],
							])
		continuing = True
		if self.continuous:
			indices.append((l-1, l))

	elif hasattr(obj, '__iter__'):
		n = len(self.vertices)
		for obj in obj:
			if isinstance(obj, (fvec3, vec3)):
				self.vertices.append([
							self.current['space'],
							fvec3(obj),
							self.current['normal'],
							self.current['color'],
							self.current['layer'],
							self.current['track'],
							self.current['flags'],
							])
				n += 1
			else:
				self.add(obj)
		indices.extend((i,i+1)	for i in range(l, n-1))
	else:
		self.component(obj)

	self.continuous = continuing
	return self

component(obj, **kwargs)

Add an object as component associated to the current space

Source code in madcad/scheme.py

def component(self, obj, **kwargs):
	''' Add an object as component associated to the current space '''
	self.set(**kwargs)
	self.components.append((self.current['space'], obj))

	return self

__add__(other)

Return the union of the two schemes.

The current settings are those from first scheme

Source code in madcad/scheme.py

def __add__(self, other):
	''' Return the union of the two schemes.

		The current settings are those from first scheme
	'''
	r = deepcopy(self)
	r += other
	return r

halo_world(position) dataclass

position instance-attribute

__call__(view)

Source code in madcad/scheme.py

def __call__(self, view):
	center = view.uniforms['view'] * (view.uniforms['world'] * fvec4(self.position,1))
	m = fmat4(1)
	m[3] = center
	return m

halo_view(position) dataclass

position instance-attribute

__call__(view)

Source code in madcad/scheme.py

def __call__(self, view):
	center = view.uniforms['view'] * (view.uniforms['world'] * fvec4(self.position,1))
	proj = view.uniforms['proj']
	e = proj * fvec4(1,1,center.z,1)
	e /= e[3]
	m = fmat4(1/e[1])
	m[3] = center
	return m

halo_screen(position) dataclass

position instance-attribute

__call__(view)

Source code in madcad/scheme.py

def __call__(self, view):
	center = view.uniforms['view'] * (view.uniforms['world'] * fvec4(self.position,1))
	e = view.uniforms['proj'] * fvec4(1,1,center.z,1)
	e /= e[3]
	m = fmat4(2/(e[1]*view.target.height))
	m[3] = center
	return m

scale_screen(center) dataclass

center instance-attribute

__call__(view)

Source code in madcad/scheme.py

def __call__(self, view):
	m = view.uniforms['view'] * view.uniforms['world']
	e = view.uniforms['proj'] * fvec4(1,1,(m*self.center).z,1)
	e /= e[3]
	return m * translate(self.center) * scale(fvec3(2 / (e[1]*view.target.height)))

scale_view(center) dataclass

center instance-attribute

__call__(view)

Source code in madcad/scheme.py

def __call__(self, view):
	m = view.uniforms['view'] * view.uniforms['world']
	e = view.uniforms['proj'] * fvec4(1,1,(m*self.center).z,1)
	e /= e[3]
	return m * translate(self.center) * scale(fvec3(1 / e[1]))

Annotation functions

note_leading(placement, offset=None, text='here')

Place a leading note at given position

placement can be any of Mesh, Web, Wire, axis, vec3

Source code in madcad/scheme.py

def note_leading(placement, offset=None, text='here'):
	''' Place a leading note at given position

		![note_leading](../screenshots/note_leading.png)

		`placement` can be any of `Mesh, Web, Wire, axis, vec3`
	'''
	origin, normal = mesh_placement(placement)
	if not offset:
		offset = 0.2 * length(boundingbox(placement).size) * normal
	elif isinstance(offset, (float,int)):
		offset = offset*normal
	elif not isinstance(offset, vec3):
		raise TypeError('offset must be scalar or vector')

	color = settings.colors['annotation']
	sch = Scheme(color=fvec4(color,0.7))
	sch.add([origin, origin+offset], shader='line', space=world)
	x,y,z = dirbase(normalize(vec3(offset)))
	sch.add(
		gt.revolution(
			web([vec3(0), 16*z+4*x]),
			Axis(vec3(0), z),
			resolution=('div',8),
			),
		shader='fill',
		space=scale_screen(fvec3(origin)),
		)
	font = settings.display['view_font_size']
	sch.set(space=halo_screen_flipping(fvec3(origin+offset), fvec3(offset)))
	sch.add([vec3(0), vec3(font*2, 0, 0)], shader='line')
	sch.add(Displayable(TextDisplay, vec3(textsize(text)[0]/2*0.78*font + 2*font, 0, 0), text, align=('center', 0.5), color=fvec4(color,1), size=font))

	return sch

note_floating(position, text, align=(0, 0))

place a floating note at given position

Source code in madcad/scheme.py

def note_floating(position, text, align=(0,0)):
	''' place a floating note at given position

		![note_floating](../screenshots/note_floating.png)
	'''
	return Displayable(TextDisplay, position, text, align=align, color=settings.colors['annotation'], size=settings.display['view_font_size'])

note_distance(a, b, offset=0, project=None, d=None, tol=None, text=None, side=False)

Place a distance quotation between 2 points, the distance can be evaluated along vector project if specified

Source code in madcad/scheme.py

def note_distance(a, b, offset=0, project=None, d=None, tol=None, text=None, side=False):
	''' Place a distance quotation between 2 points,
		the distance can be evaluated along vector `project` if specified

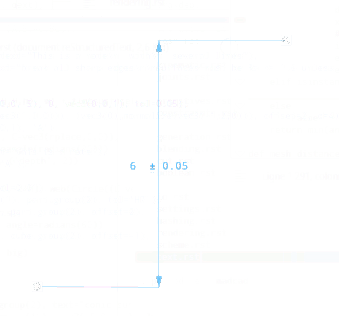

		![note_distance](../screenshots/note_distance.png)
	'''
	# get text to display
	if not project:					project = normalize(b-a)
	elif dot(project, b-a) < 0:		project = -project
	if not d:	d = abs(dot(b-a, project))
	if not text:
		if isinstance(tol,str): text = '{d:.4g}  {tol}'
		elif tol:               text = '{d:.4g}  ± {tol}'
		else:                   text = '{d:.4g}'
	text = text.format(d=d, tol=tol)
	color = settings.colors['annotation']
	# convert input vectors
	x = dirbase(project, b-a)[0]
	z = project if side else -project
	if not isinstance(offset, vec3):
		offset = offset * x
	shift = 0.5 * mathutils.project(b-a, x)	if length2(x) else 0
	ao = a + offset + shift
	bo = b + offset - shift
	# create scheme
	sch = Scheme()
	sch.set(shader='line', layer=1e-4, color=fvec4(color,0.3))
	sch.add([a, ao])
	sch.add([b, bo])
	sch.set(layer=-1e-4, color=fvec4(color,0.7))
	sch.add([ao, bo])
	sch.add(Displayable(TextDisplay,
				mix(ao,bo,0.5),
				text,
				align=('center', 0.5),
				size=settings.display['view_font_size'],
				color=fvec4(color,1)))
	sch.set(shader='fill')
	sch.add(gt.revolution(
				web([vec3(0), 3*x-12*z]),
				Axis(vec3(0),project),
				resolution=('div',8)),
			space=scale_screen(fvec3(ao)))
	sch.add(gt.revolution(
				web([vec3(0), 3*x+12*z]),
				Axis(vec3(0),project),
				resolution=('div',8)),
			space=scale_screen(fvec3(bo)))
	return sch

note_distance_planes(s0, s1, offset=None, d=None, tol=None, text=None)

Place a distance quotation between 2 meshes

s0 and s1 can be any of Mesh, Web, Wire

Source code in madcad/scheme.py

def note_distance_planes(s0, s1, offset=None, d=None, tol=None, text=None):
	''' Place a distance quotation between 2 meshes

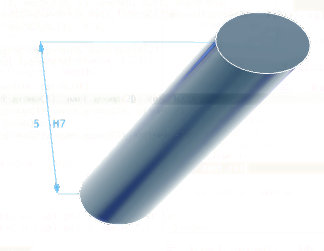

		![note_distance_planes](../screenshots/note_distance_planes.png)

		`s0` and `s1` can be any of `Mesh, Web, Wire`
	'''
	p0, n0 = mesh_placement(s0)
	p1, n1 = mesh_placement(s1)
	if length2(cross(n0,n1)) > 1e-10:
		raise ValueError('surfaces are not parallel')
	if not offset:
		box = boundingbox(s0,s1)
		offset = 0.2 * length(box.size) * normalize(noproject(p0+p1 - 2*box.center, n0))
	return note_distance(p0, p1, offset, n0, d, tol, text)

note_distance_set(s0, s1, offset=0, d=None, tol=None, text=None)

Place a distance quotation between 2 objects. This is the distance between the closest elements of both sets

s0 and s1 can be any of Mesh, Web, Wire, vec3

Source code in madcad/scheme.py

def note_distance_set(s0, s1, offset=0, d=None, tol=None, text=None):
	''' Place a distance quotation between 2 objects. This is the distance between the closest elements of both sets

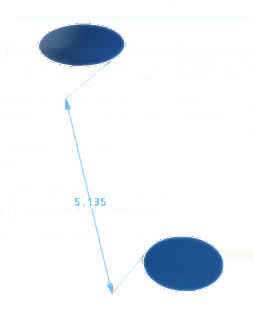

		![note_distance_set](../screenshots/note_distance_set.png)

		`s0` and `s1` can be any of `Mesh, Web, Wire, vec3`
	'''
	dist, p0, p1 = mesh_distance(s0, s1)
	if not d:	d = dist
	# take the point and the higher dimension primitive
	if not isinstance(p0,int):	s0,p0, s1,p1 = s1,p1, s0,p0
	p0 = s0.points[p0]
	pts = s1.points
	if isinstance(p1, tuple):
		if len(p1) == 2:	p1 = pts[p1[0]] + project(p0-pts[p1[0]], pts[p1[1]]-pts[p1[0]])
		elif len(p1) == 3:	p1 = p0 + project(pts[p1[0]]-p0, cross(pts[p1[1]]-pts[p1[0]], pts[p1[2]]-pts[p1[0]]))
	else:
		p1 = s1.points[p1]

	return note_distance(p0, p1, offset, None, d, tol, text)

note_bounds(obj)

Create dimension annotations on the boundingbox of an object

Source code in madcad/scheme.py

def note_bounds(obj):
	''' Create dimension annotations on the boundingbox of an object

		![note_bounds](../screenshots/note_bounds.png)
	'''
	box = boundingbox(obj)
	size = 0.05 * length(box.size)
	return [
		note_distance(box.min, vec3(box.max.x, box.min.y, box.min.z), offset=size*vec3(0,-1,-1)),
		note_distance(box.min, vec3(box.min.x, box.max.y, box.min.z), offset=size*vec3(-1,0,-1)),
		note_distance(box.min, vec3(box.min.x, box.min.y, box.max.z), offset=size*vec3(-1,-1,0)),
		box,
		]

note_radius(mesh, offset=None, d=None, tol=None, text=None, propagate=2)

Place a curvature radius quotation. This will be the minimal curvature radius observed in the mesh As a mesh is generally speaking an approximation of the desired shape, the radius may be approximative as well

Source code in madcad/scheme.py

def note_radius(mesh, offset=None, d=None, tol=None, text=None, propagate=2):
	''' Place a curvature radius quotation. This will be the minimal curvature radius observed in the mesh
		As a mesh is generally speaking an approximation of the desired shape, the radius may be approximative as well

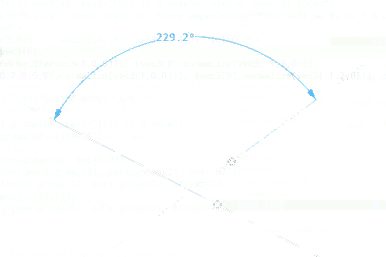

		![note_radius](../screenshots/note_radius.png)
	'''
	if isinstance(mesh, Mesh):
		normals = mesh.vertexnormals()
		radius, place = mesh_curvature_radius(mesh, normals=normals, propagate=propagate)
		normal = normals[place]
	elif isinstance(mesh, Web):
		conn = connpp(mesh.edges)
		radius, place = mesh_curvature_radius(mesh, conn=conn, propagate=propagate)
		normal = - normalize(sum(normalize(mesh.points[p]-mesh.points[place])  for p in conn[place]))
	elif isinstance(mesh, Wire):
		normals = mesh.vertexnormals()
		radius, place = mesh_curvature_radius(mesh, normals=normals, propagate=propagate)
		normal = normals[place]
	else:
		raise TypeError('input mesh must be Mesh, Web or Wire')
	if not offset:
		offset = 0.2 * length(boundingbox(mesh).size)
	if not isinstance(offset, vec3):
		offset = normal * offset
	if abs(dot(offset, normal))**2 < length2(place)*1e-4:
		offset += 0.2 * length(boundingbox(mesh).size) * normal

	if isinstance(place, tuple):
		place = sum(mesh.points[i]  for i in place) / len(place)
	else:
		place = mesh.points[place]

	arrowplace = place + noproject(offset, normal)
	note = note_leading((arrowplace,normal), offset=project(offset, normal), text=text or 'R {:.4g}'.format(radius))
	color = settings.colors['annotation']
	note.set(shader='line', layer=1e-4, color=fvec4(color,0.3), space=world)
	note.add([place, arrowplace])
	return note

note_angle(a0, a1, offset=0, d=None, tol=None, text=None, unit='deg', side=False)

Place an angle quotation between 2 axis

Source code in madcad/scheme.py

def note_angle(a0, a1, offset=0, d=None, tol=None, text=None, unit='deg', side=False):
	''' Place an angle quotation between 2 axis

		![note_angle](../screenshots/note_angle.png)
	'''
	o0, d0 = a0
	o1, d1 = a1
	z = normalize(cross(d0,d1))
	if not isfinite(z):
		raise ValueError('axis are parallel')
	x0 = cross(d0,z) * (1 if side else -1)
	x1 = cross(d1,z) * (1 if side else -1)
	shift = project(o1-o0, z) * 0.5
	# add it but in a new copy of the vectors
	o0 = o0 + shift
	o1 = o1 + shift
	# get text to display
	if not d:	d = anglebt(d0, d1)
	if unit == 'deg':
		d *= 180/pi
		unit = '°'
	if not text:
		if isinstance(tol,str): text = '{d:.4g}{unit}  {tol}'
		elif tol:               text = '{d:.4g}{unit}  ± {tol}'
		else:                   text = '{d:.4g}{unit}'
	text = text.format(d=d, tol=tol, unit=unit)
	color = settings.colors['annotation']
	# arc center
	if o1 == o0:	center = o0
	else:			center = o0 + unproject(project(o1-o0, x1), d0)
	radius = mix(distance(o0,center), distance(o1,center), 0.5) + offset
	if not radius:	radius = 1
	# arc extremities
	p0 = center+radius*d0
	p1 = center+radius*d1
	sch = Scheme()
	sch.set(shader='line', layer=1e-4, color=fvec4(color,0.3))
	sch.add([p0, o0])
	sch.add([p1, o1])
	arc = ArcCentered((center,z), p0, p1, ('rad',0.05)).mesh()
	sch.add(arc, color=fvec4(color,0.7))
	sch.set(layer=-1e-4)
	sch.add(Displayable(TextDisplay,
				arc[len(arc)//2],
				text,
				align=('center', 0.5),
				size=settings.display['view_font_size'],
				color=fvec4(color,1)))
	sch.set(shader='fill')
	sch.add(gt.revolution(
				web([vec3(0), 3*d0+12*x0]),
				Axis(vec3(0),x0),
				resolution=('div',8)),
			space=scale_screen(fvec3(p0)))
	sch.add(gt.revolution(
				web([vec3(0), 3*d1-12*x1]),
				Axis(vec3(0),x1),
				resolution=('div',8)),
			space=scale_screen(fvec3(p1)))
	return sch

note_angle_planes(s0, s1, offset=0, d=None, tol=None, text=None, unit='deg')

Place an angle quotation between 2 meshes considered to be plane (surface) or straight (curve)

s0 and s1 can be any of Mesh, Web, Wire, Axis

Source code in madcad/scheme.py

def note_angle_planes(s0, s1, offset=0, d=None, tol=None, text=None, unit='deg'):
	''' Place an angle quotation between 2 meshes considered to be plane (surface) or straight (curve)

		`s0` and `s1` can be any of `Mesh, Web, Wire, Axis`
	'''
	d0, d1 = _mesh_direction(s0), _mesh_direction(s1)
	z = normalize(cross(d0, d1))
	if not isfinite(z):
		raise ValueError('planes are parallel')
	if isinstance(s0, Mesh) or isaxis(s0):	d0 = cross(d0,z)
	if isinstance(s1, Mesh) or isaxis(s1):	d1 = cross(z,d1)
	return note_angle(
				(mesh_placement(s0)[0], d0),
				(mesh_placement(s1)[0], d1),
				offset, d, tol, text, unit)

note_angle_edge(part, edge, offset=0, d=None, tol=None, text=None, unit='deg')

Place an angle quotation around a mesh edge

Source code in madcad/scheme.py

def note_angle_edge(part, edge, offset=0, d=None, tol=None, text=None, unit='deg'):
	''' Place an angle quotation around a mesh edge

		![note_angle_edge](../screenshots/note_angle_edge.png)
	'''
	f0 = None
	f1 = None
	for face in part.faces:
		for i in range(3):
			if face[i-1] == edge[0] and face[i] == edge[1]:
				f0 = face
			elif face[i-1] == edge[1] and face[i] == edge[0]:
				f1 = face
	if not f0 or not f1:
		raise ValueError("edge {} doesn't exist or is not between 2 faces".format(f0))
	d0 = part.facenormal(f0)
	d1 = part.facenormal(f1)
	z = normalize(cross(d0,d1))
	o = mix(part.points[edge[0]], part.points[edge[1]], 0.5)
	if not offset:	offset = 0.2 * length(boundingbox(part).size)
	return note_angle(
			(o, cross(z,d0)),
			(o, cross(d1,z)),
			offset, d, tol, text, unit)

note_label(placement, offset=None, text='!', style='rect')

Place a text label upon an object

placement can be any of Mesh, Web, Wire, axis, vec3

Source code in madcad/scheme.py

def note_label(placement, offset=None, text='!', style='rect'):
	''' Place a text label upon an object

		![note_label](../screenshots/note_label.png)

		`placement` can be any of `Mesh, Web, Wire, axis, vec3`
	'''
	p, normal = mesh_placement(placement)
	if not offset:
		offset = 0.2 * length(boundingbox(placement).size) * normal
	elif isinstance(offset, (float,int)):
		offset = offset*normal
	elif not isinstance(offset, vec3):
		raise TypeError('offset must be scalar or vector')

	color = settings.colors['annotation']
	x,_,z = dirbase(normalize(offset))
	sch = Scheme()
	sch.set(color=fvec4(color,0.7))
	sch.add(gt.revolution(
				web([6*x, 10*z]),
				Axis(vec3(0),z),
				resolution=('div',8),
				),
			space=scale_screen(fvec3(p)), shader='fill')
	sch.add([p, p+offset], space=world, shader='line', layer=2e-4)
	font = int(settings.display['view_font_size'] * 1.2)
	r = font*0.8
	print(font, r)
	if style == 'circle':	outline = web(Circle((vec3(0),vec3(0,0,1)), r))
	elif style == 'rect':	outline = [vec3(r,r,0), vec3(-r,r,0), vec3(-r,-r,0), vec3(r,-r,0), vec3(r,r,0)]
	else:
		raise ValueError("style must be 'rect' or 'circle'")
	sch.set(space=halo_screen(fvec3(p+offset)))
	sch.add(outline, shader='line', layer=0)
	sch.add(gt.fill(wire(outline)), color=fvec4(settings.display['background_color'],0), shader='fill', layer=1e-3)
	sch.add(Displayable(TextDisplay,
				p+offset,
				text,
				align=('center','center'),
				size=font,
				color=color),
			space=world)
	return sch

Measuring tools

mesh_curvature_radius(mesh, conn=None, normals=None, propagate=2)

Find the minimum curvature radius of a mesh.

Parameters:

Name	Type	Description	Default
mesh		the surface/line to search	required
conn		a point-to-point connectivity (computed if not provided)	None
normals		the vertex normals (computed if not provided)	None
propagate	int	the maximum propagation rank for points to pick for the regression	2

Return: (distance: float, point: int) where primitives varies according to the input mesh dimension

Source code in madcad/scheme.py

def mesh_curvature_radius(mesh, conn=None, normals=None, propagate=2) -> '(distance, point)':
	''' Find the minimum curvature radius of a mesh.

	Parameters:
		mesh:			the surface/line to search
		conn:			a point-to-point connectivity (computed if not provided)
		normals:		the vertex normals (computed if not provided)
		propagate(int):	the maximum propagation rank for points to pick for the regression

	Return:	`(distance: float, point: int)` where primitives varies according to the input mesh dimension
	'''

	curvatures = mesh_curvatures(mesh, conn, normals, propagate)

	place = min(range(len(mesh.points)),
				key=lambda p: 1/np.max(np.abs(curvatures[p][0]))  if curvatures[p] else inf,
				default=None)
	return 1/np.max(np.abs(curvatures[place][0])), place

mesh_curvatures(mesh, conn=None, normals=None, propagate=2)

Compute the curvature around a point in a mesh/web/wire

Parameters:

Name	Type	Description	Default
mesh		the surface/line to search	required
conn		a point-to-point connectivity (computed if not provided)	None
normals		the vertex normals (computed if not provided)	None
propagate	int	the maximum propagation rank for points to pick for the regression	2

Return

[(tuple, mat3)] where the tuple contains the curvature in each of the column directions in the mat3. The mat3 has the principal directions of curvature

Source code in madcad/scheme.py

def mesh_curvatures(mesh, conn=None, normals=None, propagate=2):
	''' Compute the curvature around a point in a mesh/web/wire

	Parameters:
		mesh:			the surface/line to search
		conn:			a point-to-point connectivity (computed if not provided)
		normals:		the vertex normals (computed if not provided)
		propagate(int):	the maximum propagation rank for points to pick for the regression

	Return:
		`[(tuple, mat3)]`
		where the `tuple` contains the curvature in each of the column directions in the `mat3`. The `mat3` has the principal directions of curvature
	'''
	pts = mesh.points

	# propagate though the mesh and return seen points
	def propagate_pp(conn, start, maxrank):
		front = deque((0,s) for s in start)
		seen = set()
		while front:
			rank, p = front.popleft()
			if p in seen:	continue
			seen.add(p)
			if rank < maxrank:
				for n in conn[p]:
					if n not in seen:
						front.append((rank+1, n))
		return seen

	if isinstance(mesh, Mesh):
		if not conn:	conn = connpp(mesh.faces)
		if not normals:	normals = mesh.vertexnormals()
		it = ( (p, propagate_pp(conn, [p], propagate))   for p in conn )
	elif isinstance(mesh, Web):
		if not conn:	conn = connpp(mesh.edges)
		if not normals:
			normals = [vec3(0)  for p in mesh.points]
			for e in mesh.edges:
				d = pts[e[0]] - pts[e[1]]
				normals[e[0]] += d
				normals[e[1]] -= d
			for i,n in enumerate(normals):
				normals[i] = normalize(n)
		it = ( (p, propagate_pp(conn, [p], propagate))   for p in conn )
	elif isinstance(mesh, Wire):
		if not normals:	normals = mesh.vertexnormals()
		it = ( (mesh.indices[i], mesh.indices[i-propagate:i+propagate])   for i in range(len(mesh.indices)) )
	else:
		raise TypeError('bad input shape type')

	curvatures = [None]*len(pts)

	for p, neigh in it:
		# decide a local coordinate system
		u,v,w = dirbase(normals[p])
		# get neighboors contributions
		b = np.empty(len(neigh))
		a = np.empty((len(neigh), 14))
		for i,n in enumerate(neigh):
			e = pts[n] - pts[p]
			b[i] = dot(e,w)
			eu = dot(e,u)
			ev = dot(e,v)
			# these are the monoms to compose to build a polynom approximating the surface until 4th-order derivatives
			a[i] = (	eu**2, ev**2, eu*ev,  # what we want to get
						# the others terms are only present to catch the surface regularities and not disturb the curvature terms
						eu, ev,
						eu**3, eu**2*ev, eu*ev**2, ev**3,
						eu**4, eu**3*ev, eu**2*ev**2, eu*ev**3, ev**4,
						)

		# least squares resulution, the complexity is roughly the same as inverting a mat3
		(au, av, auv, *_), residuals, *_ = np.linalg.lstsq(a, b, rcond=None)
		# diagonalize the curve tensor to get the principal curvatures
		diag, transfer = np.linalg.eigh(mat2(2*au, auv,
												auv, 2*av))
		curvatures[p] = diag, mat3(u,v,w) * mat3(mat2(transfer))

	return curvatures
